Bosch ---- / 1617224037 / --- Spare Parts

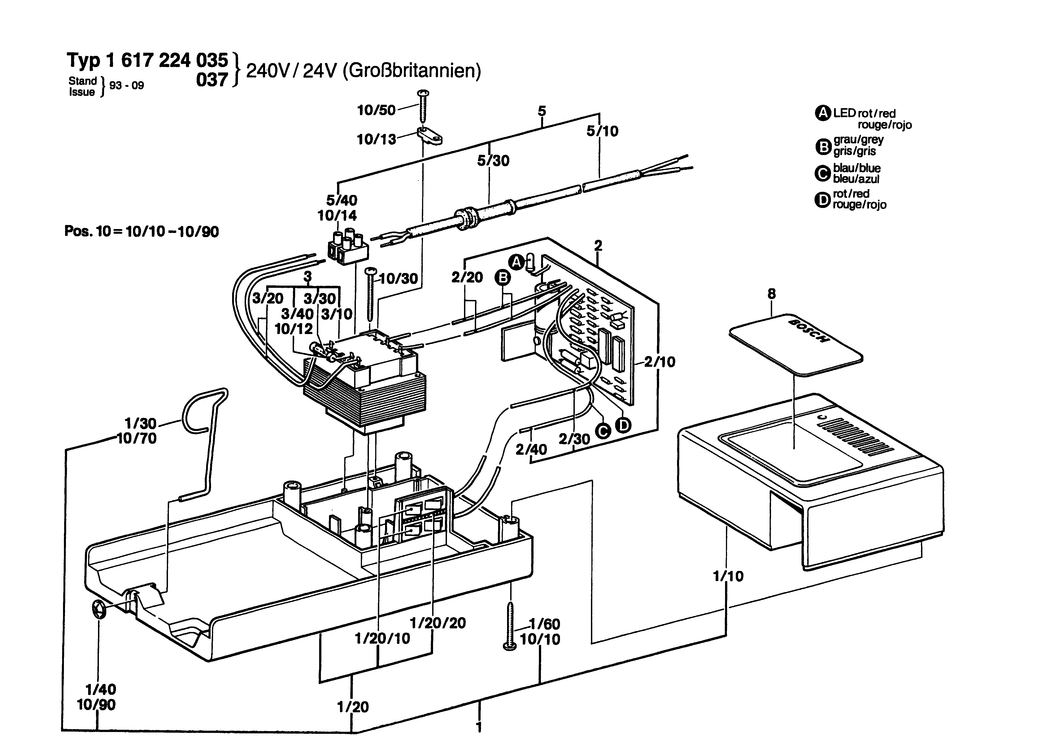

An exploded drawing and listing for the Bosch ---- / 1617224037 / ---

	Ex VAT	Inc VAT
1 - HOUSING BSD-1615190015.A8 1615190015	-
1/10 - HOUSING COVER BSD-1615500273.A2 1615500273	-
1/20 - HOUSING BASE BSD-1615190014.A26 1615190014	-
2 - PRINTED-BOARD ASSEMBLY 220V BSD-1618300000.A2 1618300000	-
3 - POWER TRANSFORMER 240V BSD-1617224017.A9 1617224017	-
3/30 - FUSE SET BSD-1617000165.A16 1617000165	-
5 - POWER SUPPLY CORD BSD-1614460034.A13 1614460034	-
8 - NAMEPLATE BSD-1611110666.A0 1611110666	-
10 - PARTS SET BSD-1617000116.A6 1617000116	-
10/70 - HOLDING SPRING BSD-1614680004.A11 1614680004	-
150 - END SPLICE BSD-3604477008.A469 3604477008	£1.75	£2.10

Attribute Name	Value
Brand	Bosch
