Bosch ---- / 1618190007 / --- Spare Parts

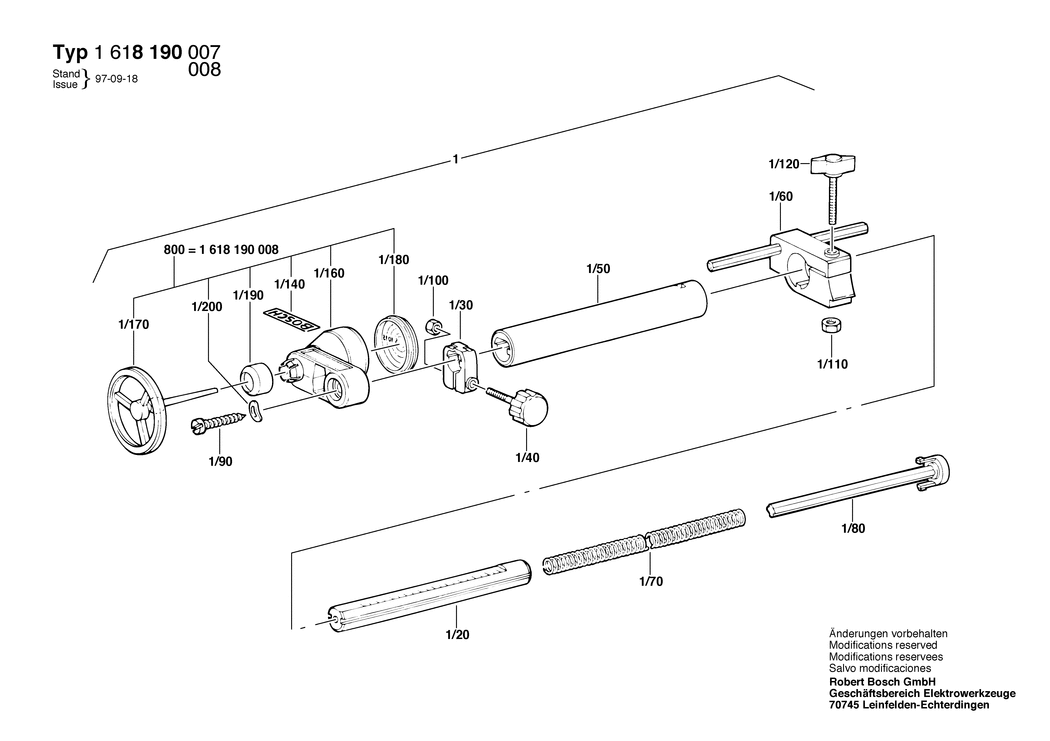

An exploded drawing and listing for the Bosch ---- / 1618190007 / ---

	Ex VAT	Inc VAT
1 - VERTICAL LEVELING AID BSD-1618190007.A1 1618190007	-
1/20 - TELESCOPE PIPE BSD-1613002001.A4 1613002001	-
1/30 - CLAMPING PIECE BSD-1611315008.A2 1611315008	-
1/40 - CLAMP SCREW BSD-1613481003.A1 1613481003	£2.80	£3.36
1/50 - GUIDE TUBE BSD-1610715001.A2 1610715001	-
1/60 - SUPPORT CLAMP BSD-1618040043.A4 1618040043	-
1/70 - COMPRESSION SPRING BSD-1614611003.A5 1614611003	-
1/80 - SEALING CAP BSD-1615500264.A1 1615500264	-
1/90 - TAPPING SCREW DIN 7971-B4.8x19 BSD-2910211234.A17 2910211234	£1.75	£2.10
1/100 - HEX NUT DIN 985-M4-8 BSD-2915061002.A14 2915061002	£1.75	£2.10
1/110 - HEX NUT M 6 DIN 985-8 BSD-2915060004.A7 2915060004	-
1/120 - WING SCREW M6x25 MM BSD-1613480009.A8 1613480009	£1.88	£2.25
1/140 - MANUFACTURER'S NAMEPLATE BSD-1611110250.A1 1611110250	£1.75	£2.10
1/160 - SWIVEL ARM BSD-1615719018.A0 1615719018	-
1/170 - POINTER BSD-1615719017.A1 1615719017	-
1/180 - SIGHT GLASS BSD-1610502006.A0 1610502006	-
1/190 - PROTECTIVE CAP BSD-1610508012.A1 1610508012	-
1/200 - SPRING WASHER DIN 137-B5-FST BSD-2916060011.A1 2916060011	-
800 - VERTICAL LEVELING AID BSD-1618190008.A1 1618190008	-
