Bosch ---- / 1618190010 / --- Spare Parts

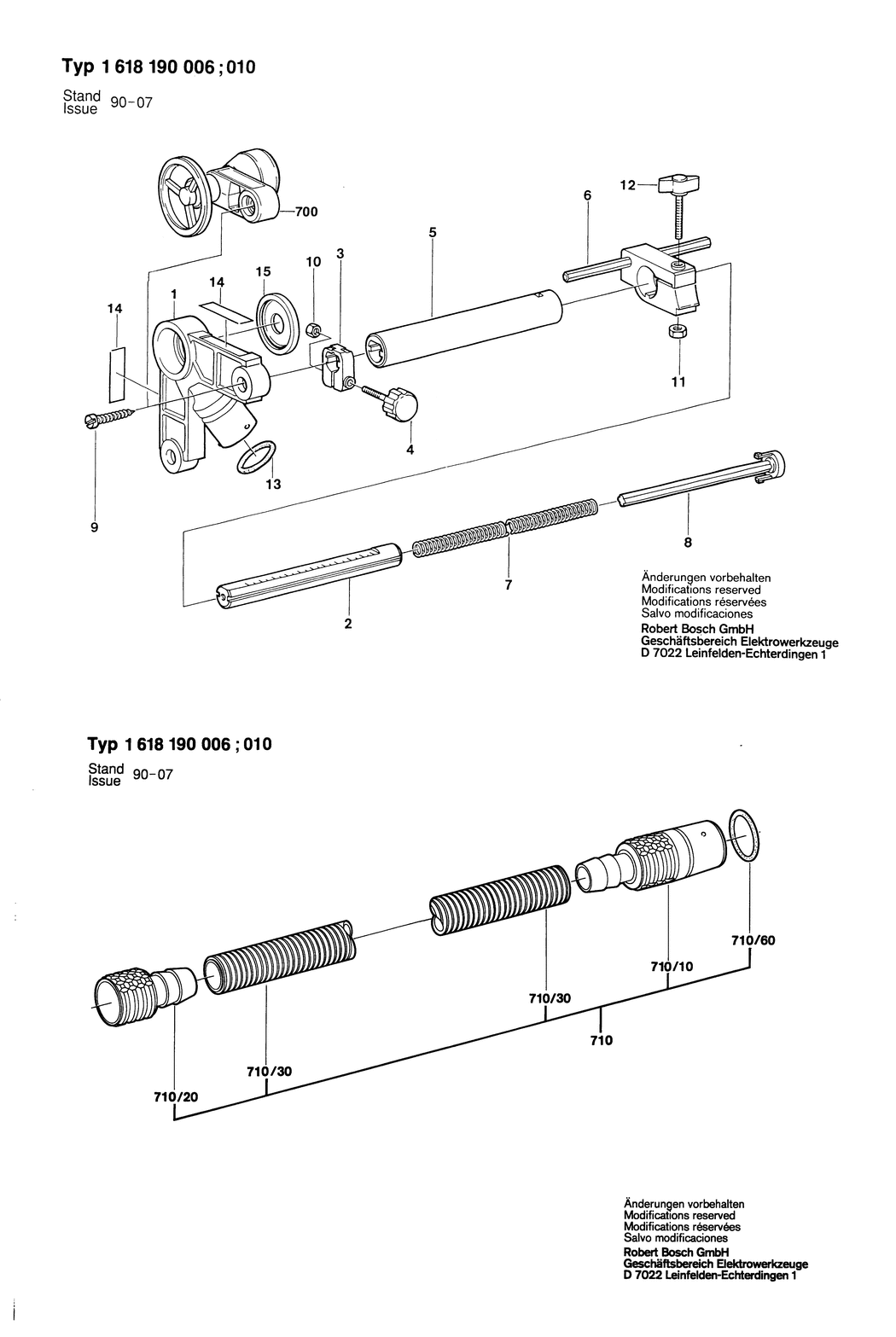

An exploded drawing and listing for the Bosch ---- / 1618190010 / ---

	Ex VAT	Inc VAT
1 - EXTRACTOR HEAD BSD-1615719015.A1 1615719015	-
2 - TELESCOPE PIPE BSD-1613002001.A0 1613002001	-
3 - CLAMPING PIECE BSD-1611315008.A3 1611315008	-
4 - CLAMP SCREW BSD-1613481003.A4 1613481003	£2.80	£3.36
5 - GUIDE TUBE BSD-1610715001.A3 1610715001	-
6 - SUPPORT CLAMP BSD-1618040043.A8 1618040043	-
7 - COMPRESSION SPRING BSD-1614611003.A2 1614611003	-
8 - SEALING CAP BSD-1615500264.A4 1615500264	-
9 - TAPPING SCREW DIN 7971-B4.8x19 BSD-2910211234.A20 2910211234	£1.75	£2.10
10 - HEX NUT DIN 985-M4-8 BSD-2915061002.A16 2915061002	£1.75	£2.10
11 - HEX NUT DIN 985-M6-8 BSD-2915061004.A92 2915061004	£1.75	£2.10
12 - WING SCREW M6x25 MM BSD-1613480009.A4 1613480009	£1.88	£2.25
13 - O-RING 23.0x3.0 MM BSD-1610210045.A14 1610210045	£2.61	£3.13
14 - MANUFACTURER'S NAMEPLATE BSD-1601110013.A198 1601110013	-
15 - SEALING CAP BSD-1610591006.A1 1610591006	£5.30	£6.36
700 - VERTICAL LEVELING AID BSD-1618190008.A4 1618190008	-
710 - AIR HOSE dia19 MM. L=5M. 3/4 BSD-1610793002.A11 1610793002	£34.99	£41.99
710/10 - FITTING BSD-1613386027.A7 1613386027	-
710/20 - FITTING BSD-1613386028.A5 1613386028	£10.82	£12.99
710/30 - AIR HOSE L=5 M BSD-1610712033.A3 1610712033	-
710/60 - O-RING 28x3 MM BSD-1900210129.A90 1900210129	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
