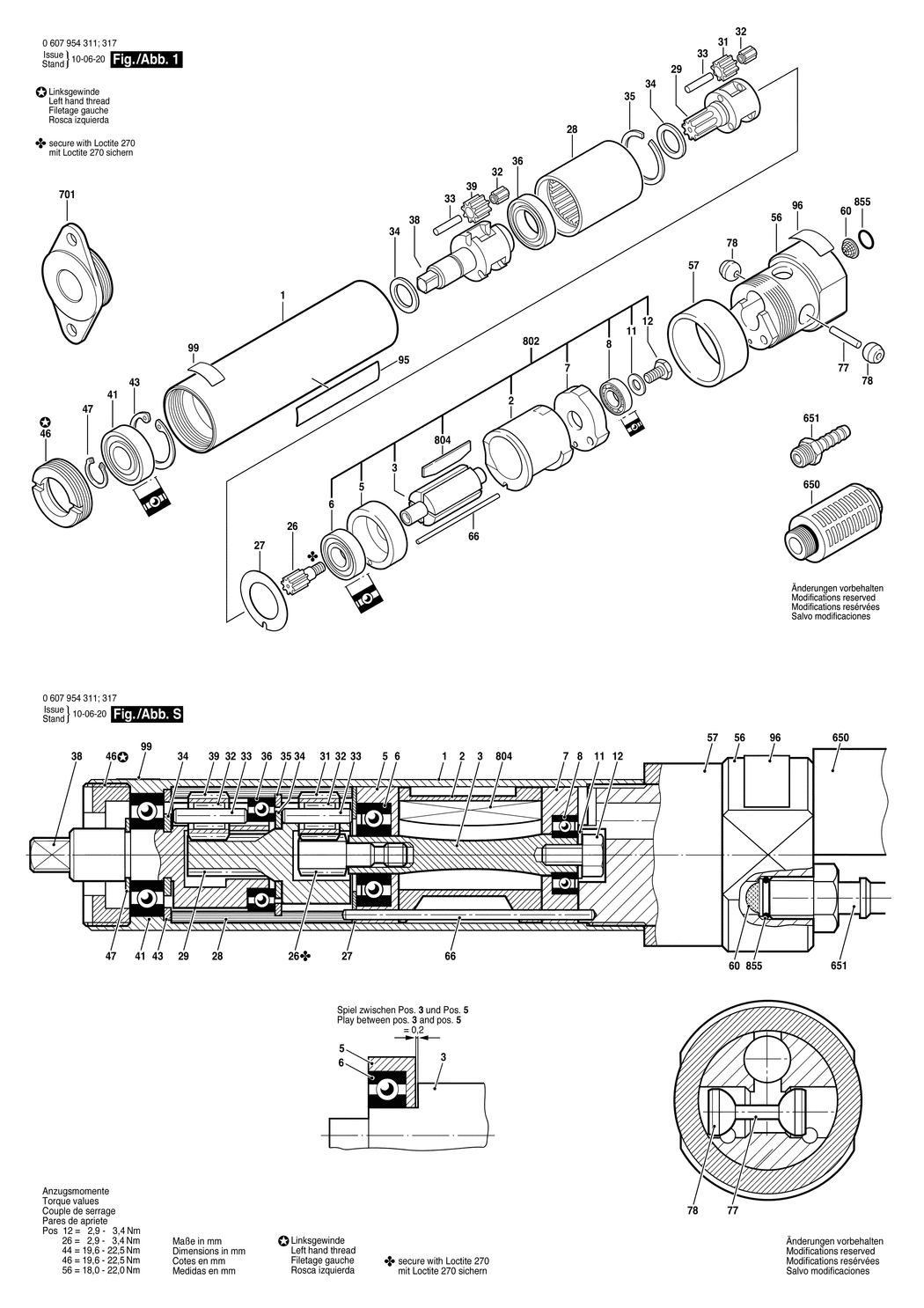

1 - MOTOR HOUSING
BSD-3600760011.A11
3600760011
|
£63.50
|
£76.20
|
|
2 - STATOR 120W
BSD-3604090014.A5
3604090014
|
£81.81
|
£98.17
|
|
3 - ROTOR
BSD-3604220013.A18
3604220013
|
£102.57
|
£123.08
|
|
5 - BEARING FLANGE
BSD-3605700023.A20
3605700023
|
£23.86
|
£28.63
|
|
6 - BALL BEARING 7x19x6
BSD-2600905032.A1298
2600905032
|
£5.30
|
£6.36
|
|
7 - BEARING FLANGE
BSD-3605700021.A8
3605700021
|
£59.53
|
£71.44
|
|
8 - GROOVE BALL BEARING 7x14x5
BSD-1900905030.A18
1900905030
|
£33.74
|
£40.49
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A61
2916011012
|
£1.75
|
£2.10
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A179
2911061150
|
£2.61
|
£3.13
|
|
26 - PINION
BSD-3606300013.A17
3606300013
|
£13.41
|
£16.09
|
|
27 - STOP DISC
BSD-3600101008.A68
3600101008
|
£1.75
|
£2.10
|
|
28 - RING GEAR Z=42
BSD-3606334011.A26
3606334011
|
£63.50
|
£76.20
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337056.A32
3606337056
|
£48.38
|
£58.06
|
|
31 - CYLINDRICAL GEAR Z=14
BSD-3606316093.A14
3606316093
|
£2.61
|
£3.13
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A412
3600913000
|
£4.26
|
£5.11
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A67
3603201000
|
£1.75
|
£2.10
|
|
34 - STOP DISC
BSD-3600103003.A23
3600103003
|
£2.80
|
£3.36
|
|
35 - RETAINING RING
BSD-3600224002.A32
3600224002
|
£1.75
|
£2.10
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A110
3600905002
|
£16.41
|
£19.69
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337097.A1
3606337097
|
-
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316114.A43
3606316114
|
£13.12
|
£15.75
|
|
41 - GROOVE BALL BEARING
BSD-3600905026.A20
3600905026
|
£21.68
|
£26.01
|
|
43 - SPRING RETAINING RING
BSD-3600119001.A5
3600119001
|
-
|
|
|
46 - THREADED RING
BSD-3603344005.A13
3603344005
|
£14.91
|
£17.89
|
|
47 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A550
2916650001
|
£2.61
|
£3.13
|
|
56 - CONNECTION HOUSING
BSD-3605190082.A2
3605190082
|
£135.25
|
£162.30
|
|
57 - PROTECTION SLEEVE
BSD-3600200002.A3
3600200002
|
£31.64
|
£37.97
|
|
60 - STRAINER
BSD-3600002001.A43
3600002001
|
£2.61
|
£3.13
|
|
66 - STRAIGHT PIN
BSD-3603201014.A10
3603201014
|
£11.30
|
£13.56
|
|
77 - HOLDING PIN
BSD-3603203009.A4
3603203009
|
£16.41
|
£19.69
|
|
78 - VALVE CONE
BSD-3603231002.A4
3603231002
|
£11.30
|
£13.56
|
|
95 - NAMEPLATE
BSD-160111A3HF.A197
160111A3HF
|
£3.72
|
£4.47
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A49
1601110013
|
-
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1870
3601119236
|
£3.72
|
£4.47
|
|
650 - SILENCER
BSD-3607000016.A29
3607000016
|
£21.52
|
£25.83
|
|
651 - HOSE FITTING
BSD-3603386002.A17
3603386002
|
£3.34
|
£4.01
|
|
701 - FASTENING FLANGE
BSD-3605700043.A6
3605700043
|
£81.81
|
£98.17
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030259.A25
3607030259
|
£31.64
|
£37.97
|
|
855 - PARTS SET
BSD-3607010020.A5
3607010020
|
£8.67
|
£10.41
|
|
