Bosch 370 WATT-SERIE / 0607951559 / --- Spare Parts

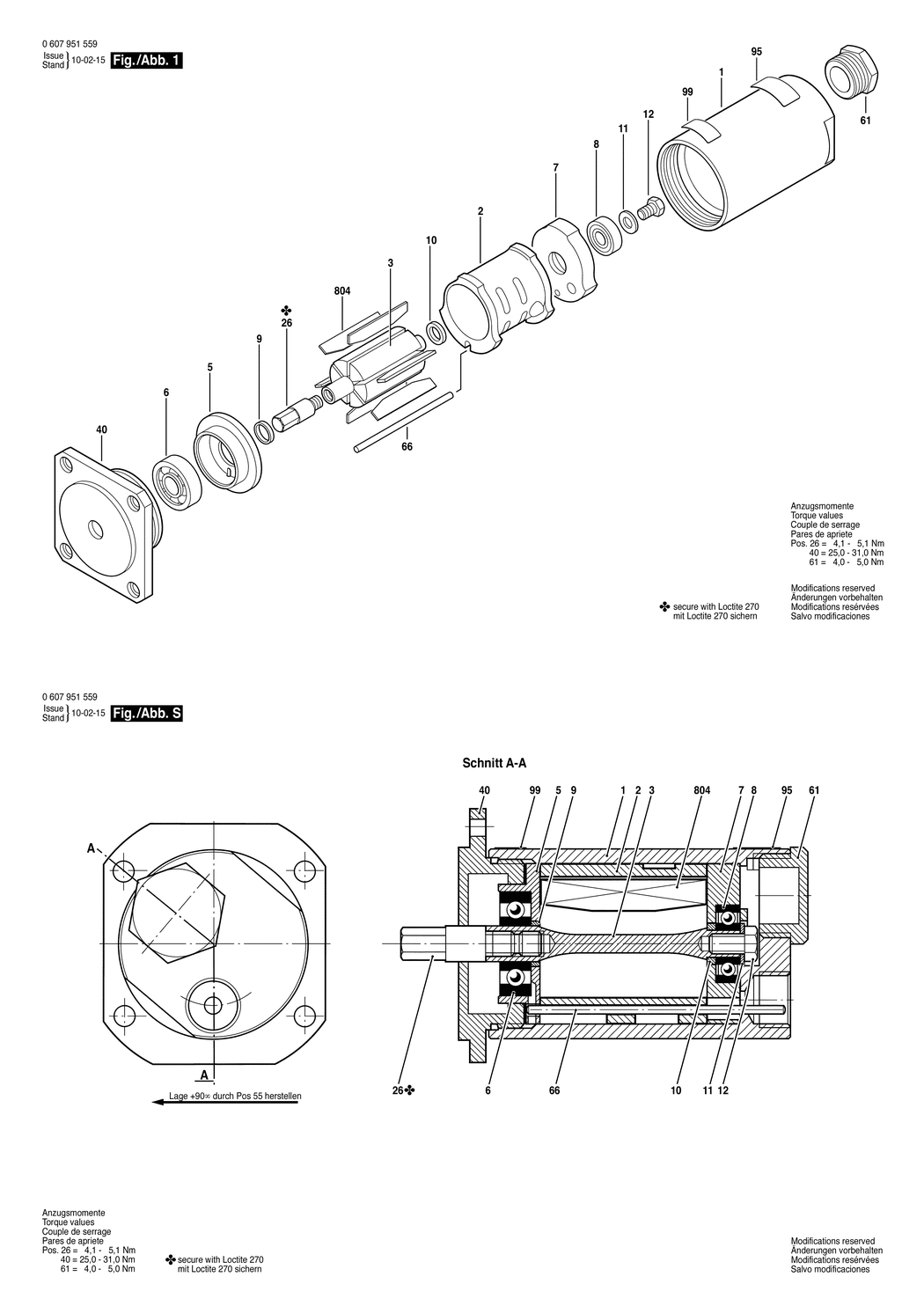

An exploded drawing and listing for the Bosch 370 WATT-SERIE / 0607951559 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605125066.A0 3605125066	-
2 - STATOR 550W BSD-3604090009.A3 3604090009	£93.88	£112.65
3 - ROTOR BSD-3604220005.A16 3604220005	£72.18	£86.62
5 - BEARING FLANGE BSD-3605700167.A1 3605700167	£23.86	£28.63
6 - GROOVE BALL BEARING 10x26x8 BSD-1900905127.A86 1900905127	£27.23	£32.68
7 - BEARING FLANGE BSD-3605700010.A4 3605700010	£59.53	£71.44
8 - BALL BEARING 8x22x7 BSD-1900905029.A14 1900905029	£21.52	£25.83
9 - SPACER RING BSD-2600200007.A23 2600200007	£10.10	£12.12
10 - SPACER RING BSD-3600202004.A10 3600202004	£11.30	£13.56
11 - PLAIN WASHER DIN 125-A5.3-ST BSD-2916011012.A298 2916011012	£1.75	£2.10
12 - HEX SCREW DIN 933-M5x8-8.8 BSD-2911061150.A84 2911061150	£2.61	£3.13
26 - CARRIER BSD-3606337225.A0 3606337225	£23.86	£28.63
40 - FLANGE BSD-3600390043.A0 3600390043	£45.67	£54.80
61 - SILENCER BSD-3603462017.A2 3603462017	£14.91	£17.89
66 - STRAIGHT PIN BSD-3604710032.A4 3604710032	£7.36	£8.83
95 - NAMEPLATE BSD-160111A3HF.A475 160111A3HF	£3.72	£4.47
99 - REFERENCE PLATE BSD-3601119236.A507 3601119236	£3.72	£4.47
804 - ASSEMBLY OF SERVICE PARTS BSD-3607030260.A60 3607030260	£21.68	£26.01
