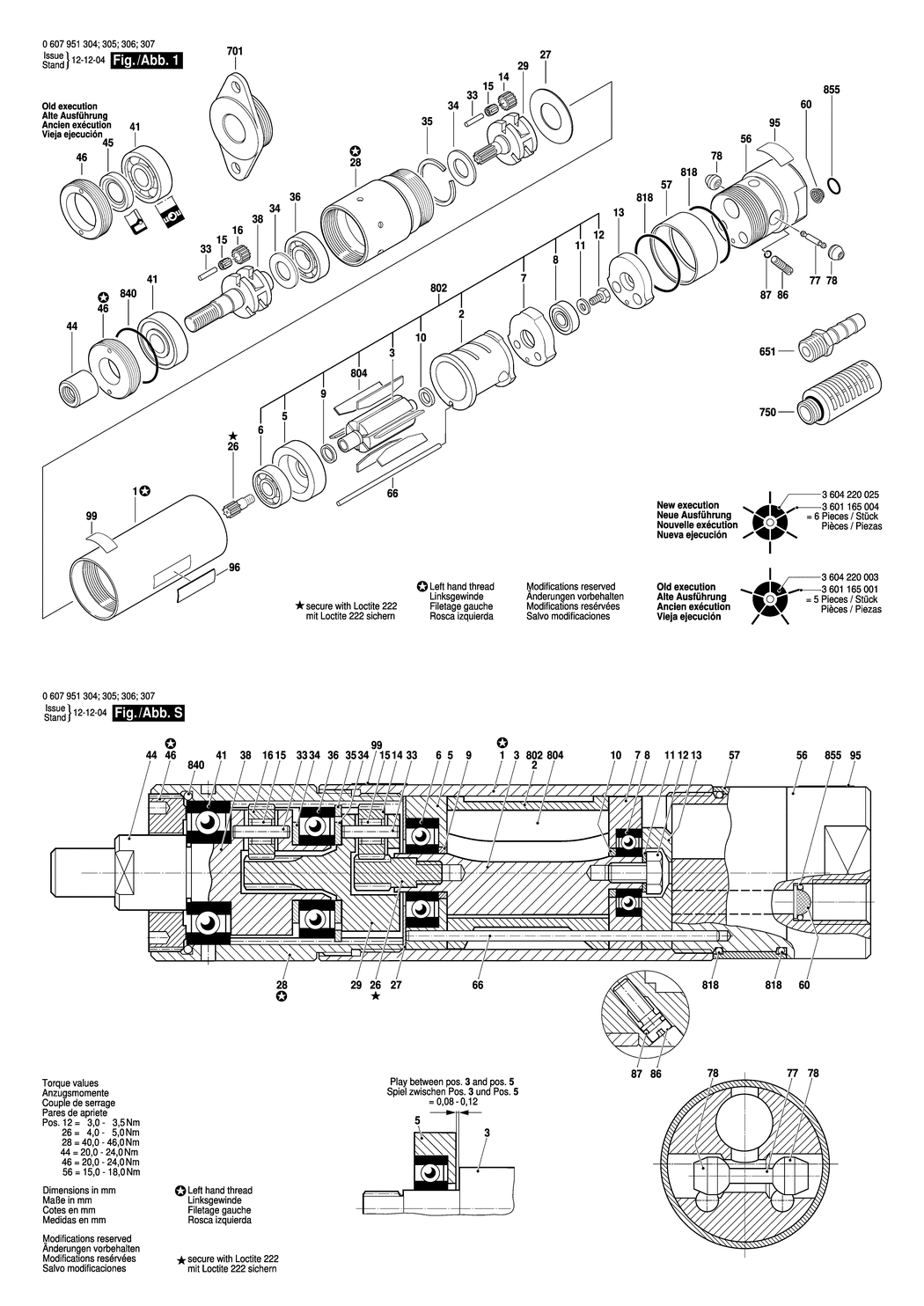

1 - MOTOR HOUSING
BSD-3600760001.A13
3600760001
|
£54.42
|
£65.30
|
|
|
2 - STATOR 370W
BSD-3604090002.A60
3604090002
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220025.A20
3604220025
|
£102.57
|
£123.08
|
|
|
5 - BEARING FLANGE
BSD-3605700005.A108
3605700005
|
£54.42
|
£65.30
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A172
3600905039
|
£12.04
|
£14.45
|
|
|
7 - BEARING FLANGE
BSD-3605700006.A24
3605700006
|
£72.18
|
£86.62
|
|
|
8 - GROOVE BALL BEARING DIN 625-7x19x6
BSD-3600905148.A114
3600905148
|
£8.49
|
£10.19
|
|
|
9 - SPACER RING
BSD-2600202013.A138
2600202013
|
£8.67
|
£10.41
|
|
|
10 - SPACER RING
BSD-2600202014.A54
2600202014
|
£11.30
|
£13.56
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A261
2916011012
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A54
2911061150
|
£2.61
|
£3.13
|
|
|
13 - INTERMEDIATE PIECE
BSD-3602305000.A36
3602305000
|
£37.27
|
£44.72
|
|
|
14 - CYLINDRICAL GEAR
BSD-3606316101.A24
3606316101
|
£21.68
|
£26.01
|
|
|
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A150
3600913000
|
£4.26
|
£5.11
|
|
|
16 - CYLINDRICAL GEAR
BSD-3606316100.A95
3606316100
|
£21.52
|
£25.83
|
|
|
26 - PINION
BSD-3606300005.A6
3606300005
|
£31.64
|
£37.97
|
|
|
27 - STOP DISC
BSD-3600101001.A185
3600101001
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=49
BSD-3606334000.A52
3606334000
|
£102.57
|
£123.08
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337004.A0
3606337004
|
£93.88
|
£112.65
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A308
3603201000
|
£1.75
|
£2.10
|
|
|
34 - SHIM WASHER
BSD-3600103002.A23
3600103002
|
£3.72
|
£4.47
|
|
|
35 - RETAINING RING
BSD-3600224000.A20
3600224000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x28x8
BSD-1900900287.A181
1900900287
|
£21.68
|
£26.01
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337006.A4
3606337006
|
£81.81
|
£98.17
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905069.A86
3600905069
|
£16.41
|
£19.69
|
|
|
44 - THREADED BUSHING
BSD-3600390003.A51
3600390003
|
£12.04
|
£14.45
|
|
|
46 - THREADED RING
BSD-3603344000.A20
3603344000
|
£16.41
|
£19.69
|
|
|
56 - CONNECTION HOUSING
BSD-3605190193.A4
3605190193
|
£59.53
|
£71.44
|
|
|
57 - PROTECTION SLEEVE
BSD-3600400004.A14
3600400004
|
£33.74
|
£40.49
|
|
|
60 - STRAINER
BSD-3600002001.A173
3600002001
|
£2.61
|
£3.13
|
|
|
66 - STRAIGHT PIN
BSD-3604710000.A2
3604710000
|
£5.58
|
£6.70
|
|
|
77 - HOLDING PIN
BSD-3603203004.A5
3603203004
|
£2.80
|
£3.36
|
|
|
78 - VALVE CONE
BSD-3603231000.A7
3603231000
|
£2.80
|
£3.36
|
|
|
86 - ADJUSTING SCREW
BSD-3603435048.A36
3603435048
|
£16.41
|
£19.69
|
|
|
87 - O-RING 4.0x1.0 MM
BSD-3600210015.A43
3600210015
|
£3.72
|
£4.47
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A678
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110331.A17
3601110331
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A444
3601119236
|
£3.72
|
£4.47
|
|
|
651 - HOSE FITTING
BSD-3603386067.A14
3603386067
|
£21.52
|
£25.83
|
|
|
701 - FASTENING FLANGE
BSD-3605700045.A7
3605700045
|
£120.11
|
£144.13
|
|
|
750 - SILENCER
BSD-3607000074.A45
3607000074
|
£23.86
|
£28.63
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031016.A15
3607031016
|
-
|
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030249.A14
3607030249
|
£33.73
|
£40.48
|
|
|
818 - PARTS SET
BSD-3607010007.A45
3607010007
|
£18.96
|
£22.75
|
|
|
840 - PARTS SET
BSD-3607010007.A46
3607010007
|
£18.96
|
£22.75
|
|
|
855 - PARTS SET
BSD-3607010020.A61
3607010020
|
£8.67
|
£10.41
|
|
