Bosch ---- / 0607150580 / --- Spare Parts

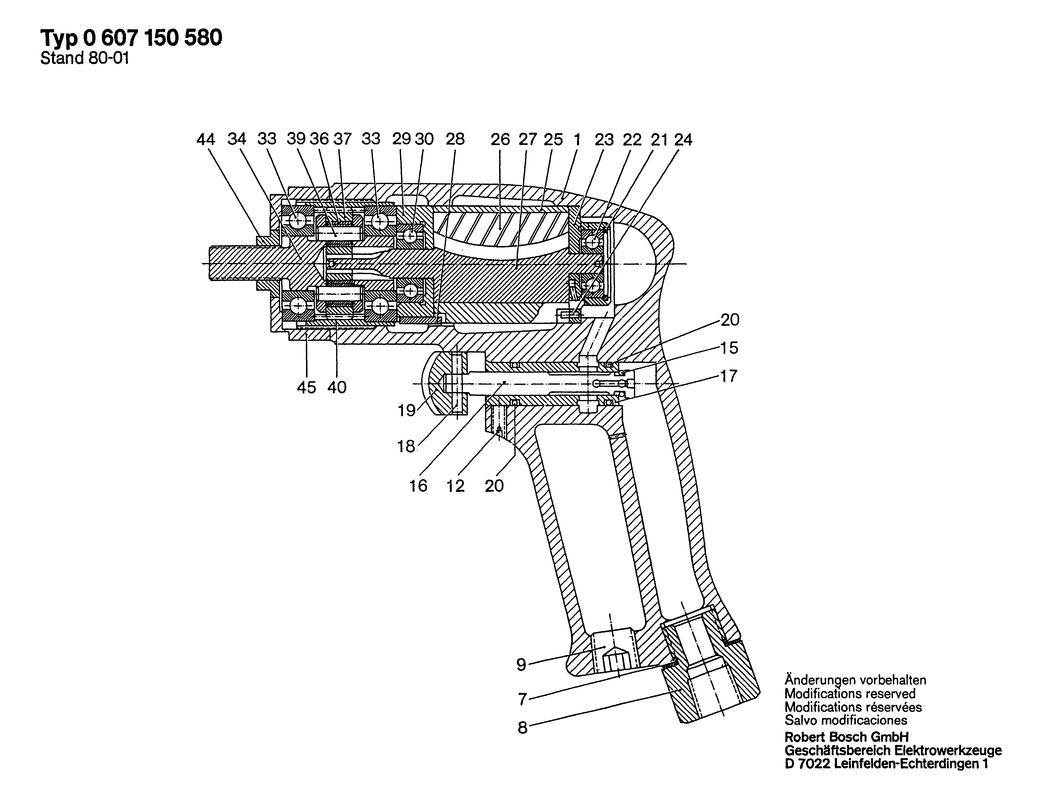

An exploded drawing and listing for the Bosch ---- / 0607150580 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1609301444.A1 1609301444	-
7 - SEAL RING BSD-1609301361.A0 1609301361	-
8 - FITTING BSD-1609301362.A1 1609301362	-
9 - SILENCER BSD-1609301447.A1 1609301447	-
12 - SET SCREW M 4x8-DIN 914-45H BSD-2912011118.A0 2912011118	-
15 - SEAL RING BSD-1609301364.A1 1609301364	-
16 - CONTROL PISTON BSD-1609301365.A0 1609301365	-
17 - VALVE BUSHING BSD-1609301445.A0 1609301445	-
18 - SLOTTED SPRING PIN BSD-2917780059.A0 2917780059	-
19 - PUSH-BUTTON BSD-1609301368.A0 1609301368	-
20 - SEAL RING BSD-1609301369.A1 1609301369	-
21 - SPRING RETAINING RING BSD-1609301370.A0 1609301370	-
22 - GROOVE BALL BEARING BSD-1609301371.A1 1609301371	-
23 - BEARING FLANGE BSD-1609301372.A0 1609301372	-
24 - SLOTTED SPRING PIN 2x5 DIN 1481 BSD-2917780033.A1 2917780033	-
25 - STATOR BSD-1609301374.A1 1609301374	-
26 - ROTOR LAMELLA BSD-1609301375.A0 1609301375	-
27 - ROTOR BSD-1609301376.A1 1609301376	-
28 - PARALLEL KEY BSD-1609301377.A0 1609301377	-
29 - BEARING FLANGE BSD-1609301446.A0 1609301446	-
30 - GROOVE BALL BEARING BSD-1609301379.A1 1609301379	-
33 - GROOVE BALL BEARING BSD-1609301380.A0 1609301380	-
34 - PLANETARY-GEAR CARRIER BSD-1609301381.A1 1609301381	-
36 - NEEDLE-ROLLER BEARING BSD-1609301382.A0 1609301382	-
37 - TOOTHED GEAR BSD-1609301383.A1 1609301383	-
39 - NEEDLE ROLLER BSD-1609301384.A0 1609301384	-
40 - RING GEAR BSD-1609301385.A1 1609301385	-
44 - THREADED RING BSD-1609301386.A0 1609301386	-
45 - THREADED BUSHING BSD-1609301387.A1 1609301387	-
95 - NAMEPLATE 26x42 MM BSD-1611104999.A1 1611104999	-
96 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST BSD-2917721034.A5 2917721034	£1.75	£2.10
650 - FITTING BSD-1609300760.A4 1609300760	-
651 - KEY CHUCK dia1-10 MM. 3/8 BSD-1608571020.A146 1608571020	-
651 - CHUCK WRENCH SG2 BSD-2607950007.A1615 2607950007	£6.52	£7.83

Attribute Name	Value
Brand	Bosch
