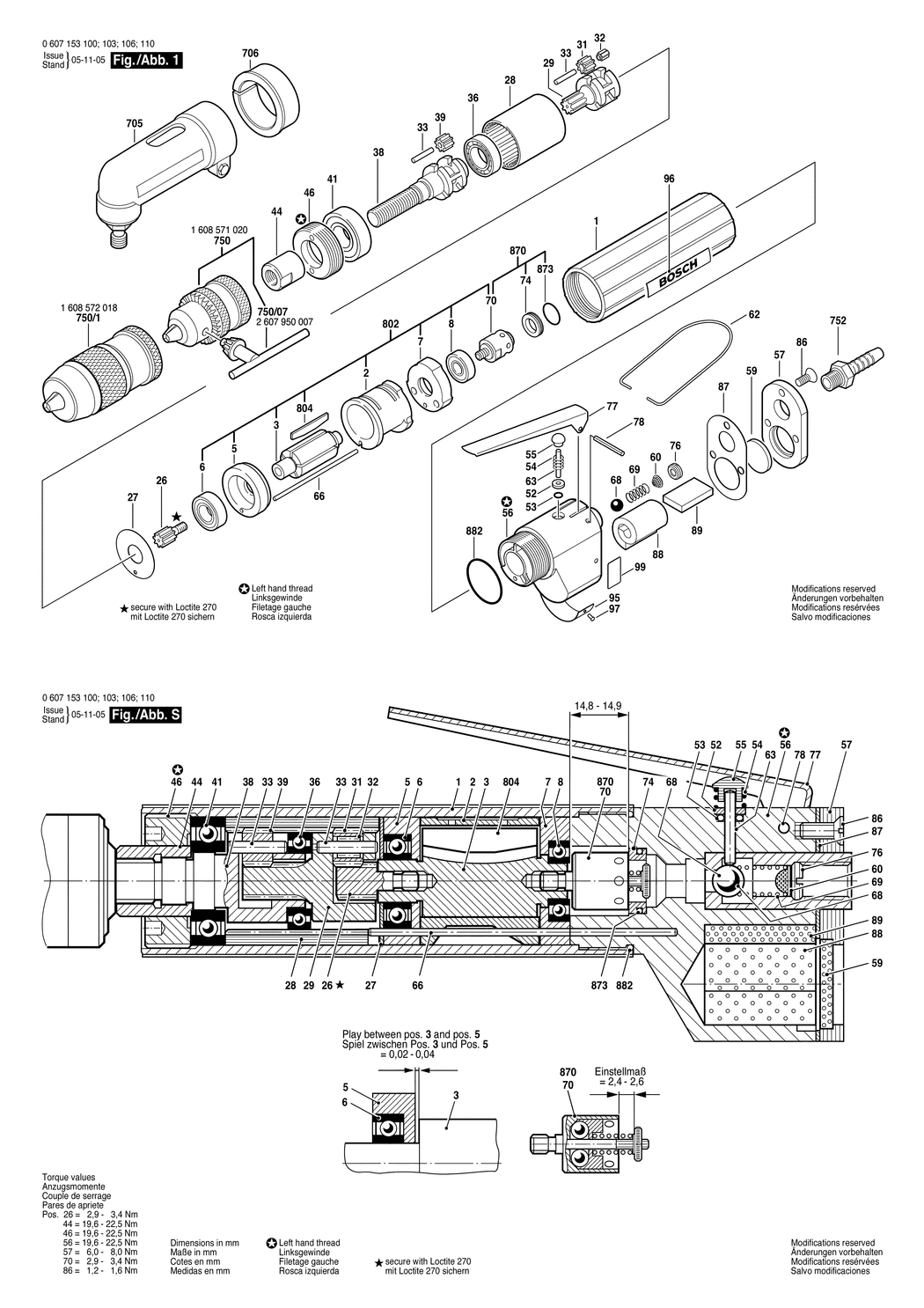

1 - MOTOR HOUSING
BSD-3600760020.A1
3600760020
|
£58.76
|
£70.51
|
|
|
2 - STATOR 180W
BSD-3604090011.A42
3604090011
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220009.A8
3604220009
|
£72.18
|
£86.62
|
|
|
5 - BEARING FLANGE
BSD-3605700015.A74
3605700015
|
£45.67
|
£54.80
|
|
|
6 - GROOVE BALL BEARING DIN 625-7x19x6
BSD-3600905148.A108
3600905148
|
£8.49
|
£10.19
|
|
|
7 - BEARING FLANGE
BSD-3605700016.A9
3605700016
|
£59.53
|
£71.44
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A263
1900905028
|
£33.74
|
£40.49
|
|
|
26 - PINION
BSD-3606300013.A27
3606300013
|
£13.41
|
£16.09
|
|
|
27 - STOP DISC
BSD-3600101047.A124
3600101047
|
£2.16
|
£2.59
|
|
|
28 - RING GEAR Z=42
BSD-3606334005.A33
3606334005
|
£59.53
|
£71.44
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337057.A52
3606337057
|
£48.38
|
£58.06
|
|
|
31 - CYLINDRICAL GEAR Z=14
BSD-3606316093.A97
3606316093
|
£2.61
|
£3.13
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A88
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A359
3603201000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A77
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337018.A9
3606337018
|
£81.81
|
£98.17
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316114.A112
3606316114
|
£13.12
|
£15.75
|
|
|
41 - BALL BEARING 7x19x6
BSD-2600905032.A2284
2600905032
|
£5.30
|
£6.36
|
|
|
44 - THREADED BUSHING
BSD-3600390003.A9
3600390003
|
£12.04
|
£14.45
|
|
|
46 - THREADED RING
BSD-3603344004.A29
3603344004
|
£14.91
|
£17.89
|
|
|
52 - PLAIN WASHER DIN 125-A3.2-ST
BSD-2916011006.A105
2916011006
|
£1.75
|
£2.10
|
|
|
53 - O-RING 2.4x1.9 MM
BSD-2600210007.A35
2600210007
|
£2.16
|
£2.59
|
|
|
54 - COMPRESSION SPRING
BSD-3604611017.A90
3604611017
|
£2.61
|
£3.13
|
|
|
55 - VALVE CONE
BSD-3603132000.A45
3603132000
|
£2.80
|
£3.36
|
|
|
56 - VALVE HOUSING
BSD-3605190152.A9
3605190152
|
£156.22
|
£187.46
|
|
|
57 - HOUSING COVER
BSD-3605500003.A11
3605500003
|
£2.61
|
£3.13
|
|
|
59 - SILENCER
BSD-3600002002.A38
3600002002
|
£3.72
|
£4.47
|
|
|
60 - STRAINER
BSD-3600002001.A119
3600002001
|
£2.61
|
£3.13
|
|
|
62 - SUSPENSION LOOP
BSD-2604720004.A15
2604720004
|
£4.26
|
£5.11
|
|
|
63 - NEEDLE ROLLER
BSD-3603201023.A8
3603201023
|
£1.75
|
£2.10
|
|
|
66 - STRAIGHT PIN
BSD-3603201009.A74
3603201009
|
£5.58
|
£6.70
|
|
|
68 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A298
1903230013
|
£2.16
|
£2.59
|
|
|
69 - COMPRESSION SPRING
BSD-3604611006.A123
3604611006
|
£2.16
|
£2.59
|
|
|
70 - CENTRIFUGAL GOVERNOR
BSD-3607021007.A26
3607021007
|
£33.74
|
£40.49
|
|
|
74 - RETAINING SNAP RING
BSD-3600211001.A31
3600211001
|
£6.52
|
£7.83
|
|
|
76 - THREADED RING
BSD-3603344003.A32
3603344003
|
£2.61
|
£3.13
|
|
|
77 - CONTROL LEVER
BSD-3601902001.A45
3601902001
|
£6.52
|
£7.83
|
|
|
78 - GROOVED PIN DIN 1475-2x18-ST
BSD-2917700040.A91
2917700040
|
£2.80
|
£3.36
|
|
|
86 - COUNTERSUNK-HEAD SCREW DIN 963-M4x10-4.8
BSD-2910761120.A1
2910761120
|
£1.75
|
£2.10
|
|
|
87 - SEALING PLATE
BSD-3600054001.A27
3600054001
|
£1.75
|
£2.10
|
|
|
88 - SILENCER
BSD-3601010002.A6
3601010002
|
£2.80
|
£3.36
|
|
|
89 - SILENCER
BSD-3601010010.A49
3601010010
|
£2.16
|
£2.59
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A519
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601119055.A169
3601119055
|
£3.72
|
£4.47
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A452
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A356
3601119236
|
£3.72
|
£4.47
|
|
|
705 - COMBI ANGLE DRIVE
BSD-1608580011.A3
1608580011
|
-
|
|
|
|
706 - CLAMPING SLEEVE
BSD-3600220005.A0
3600220005
|
-
|
|
|
|
750/1 - CHUCK dia 1-10 MM.3/8
BSD-2608572067.A0
2608572067
|
£54.42
|
£65.30
|
|
|
750/07 - CHUCK WRENCH SG2
BSD-2607950007.A321
2607950007
|
£6.52
|
£7.83
|
|
|
752 - HOSE FITTING
BSD-3607010011.A55
3607010011
|
-
|
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031044.A23
3607031044
|
-
|
|
|
|
804 - PARTS SET
BSD-3607030256.A69
3607030256
|
£30.42
|
£36.51
|
|
|
870 - ASSEMBLY OF SERVICE PARTS
BSD-3607031038.A6
3607031038
|
£40.80
|
£48.96
|
|
|
873 - O-RING
BSD-3607010003.A3
3607010003
|
£16.41
|
£19.69
|
|
|
882 - O-RING
BSD-3607010006.A25
3607010006
|
£31.64
|
£37.97
|
|
