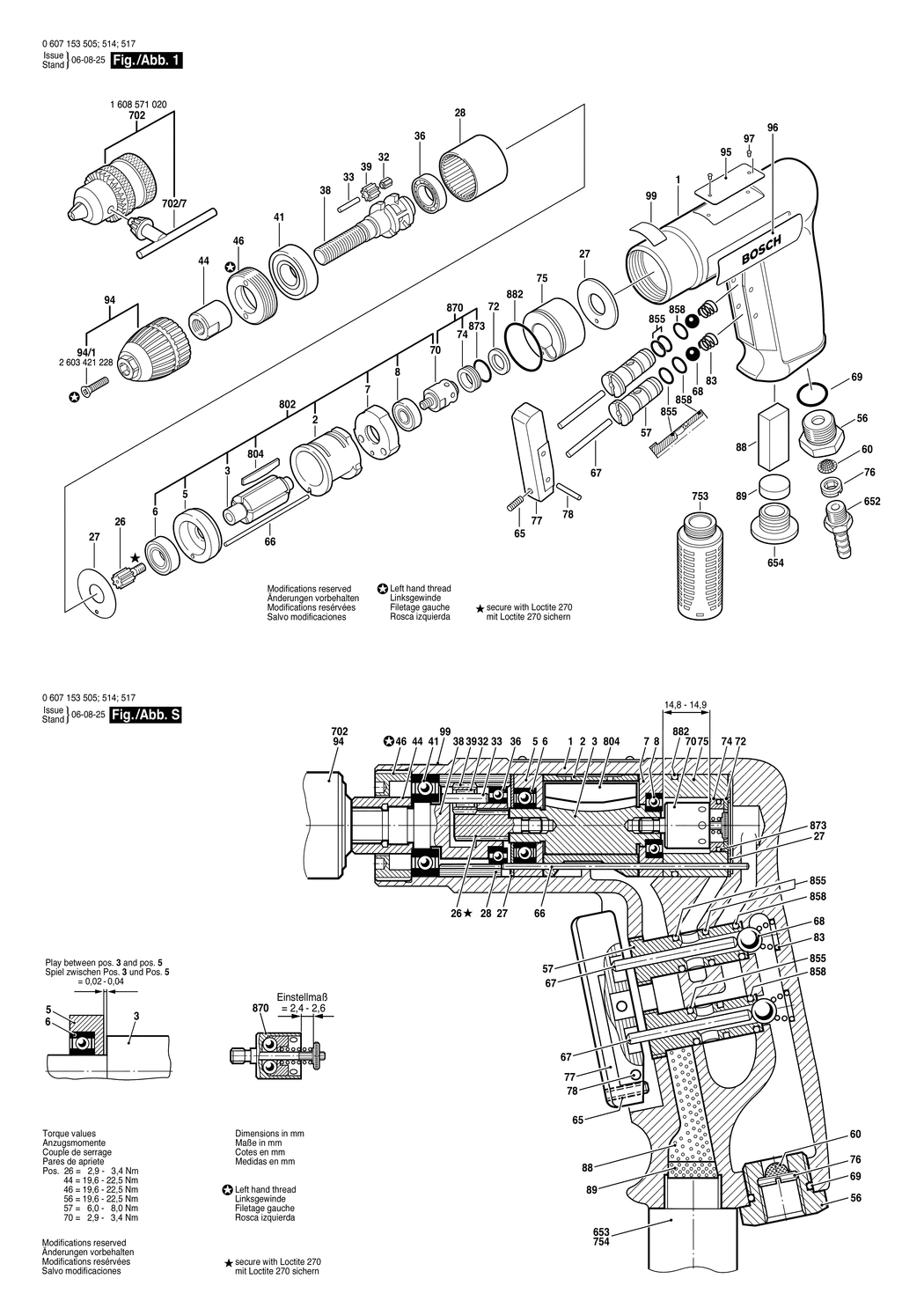

1 - MOTOR HOUSING
BSD-3605108038.A5
3605108038
|
-
|
|
|
|
2 - STATOR 180W
BSD-3604090011.A18
3604090011
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220009.A20
3604220009
|
£72.18
|
£86.62
|
|
|
5 - BEARING FLANGE
BSD-3605700015.A48
3605700015
|
£45.67
|
£54.80
|
|
|
6 - GROOVE BALL BEARING DIN 625-7x19x6
BSD-3600905148.A95
3600905148
|
£8.49
|
£10.19
|
|
|
7 - BEARING FLANGE
BSD-3605700016.A35
3605700016
|
£59.53
|
£71.44
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A241
1900905028
|
£33.74
|
£40.49
|
|
|
26 - PINION
BSD-3606300012.A3
3606300012
|
£19.45
|
£23.34
|
|
|
27 - STOP DISC
BSD-3600101047.A103
3600101047
|
£2.16
|
£2.59
|
|
|
28 - RING GEAR
BSD-3606334004.A16
3606334004
|
£40.80
|
£48.96
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A76
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A328
3603201000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A92
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337017.A15
3606337017
|
£72.18
|
£86.62
|
|
|
39 - CYLINDRICAL GEAR Z=14
BSD-3606316093.A87
3606316093
|
£2.61
|
£3.13
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905015.A24
3600905015
|
£16.41
|
£19.69
|
|
|
44 - THREADED BUSHING
BSD-3600390003.A26
3600390003
|
£12.04
|
£14.45
|
|
|
46 - THREADED RING
BSD-3603344004.A11
3603344004
|
£14.91
|
£17.89
|
|
|
56 - FITTING
BSD-3603458009.A11
3603458009
|
-
|
|
|
|
57 - GUIDE SLEEVE
BSD-3600364005.A13
3600364005
|
£9.49
|
£11.39
|
|
|
60 - STRAINER
BSD-3600002001.A130
3600002001
|
£2.61
|
£3.13
|
|
|
65 - SET SCREW DIN 438-M3x10-5.8
BSD-2912021052.A2
2912021052
|
-
|
|
|
|
66 - STRAIGHT PIN
BSD-3603201010.A4
3603201010
|
£8.67
|
£10.41
|
|
|
67 - STRAIGHT PIN
BSD-3603201013.A8
3603201013
|
-
|
|
|
|
68 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A312
1903230013
|
£2.16
|
£2.59
|
|
|
69 - O-RING 15x2 MM
BSD-1900210112.A204
1900210112
|
£2.61
|
£3.13
|
|
|
70 - CENTRIFUGAL GOVERNOR
BSD-3607021007.A7
3607021007
|
£33.74
|
£40.49
|
|
|
72 - STOP DISC
BSD-3600100012.A5
3600100012
|
-
|
|
|
|
74 - RETAINING SNAP RING
BSD-3600211001.A6
3600211001
|
£6.52
|
£7.83
|
|
|
75 - GUIDE BUSHING
BSD-3600311002.A15
3600311002
|
-
|
|
|
|
76 - THREADED RING
BSD-3603344003.A49
3603344003
|
£2.61
|
£3.13
|
|
|
77 - CONTROL LEVER
BSD-3602053002.A22
3602053002
|
£4.26
|
£5.11
|
|
|
78 - STRAIGHT PIN 3M6x24 DIN 7-C35K
BSD-2917610083.A10
2917610083
|
£1.75
|
£2.10
|
|
|
83 - COMPRESSION SPRING
BSD-3604611006.A96
3604611006
|
£2.16
|
£2.59
|
|
|
88 - SILENCER
BSD-3601010004.A4
3601010004
|
£2.16
|
£2.59
|
|
|
89 - SILENCER
BSD-3600009000.A19
3600009000
|
£2.16
|
£2.59
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A531
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A386
1601110481
|
£2.16
|
£2.59
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A475
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A284
3601119236
|
£3.72
|
£4.47
|
|
|
652 - HOSE FITTING
BSD-3603386002.A133
3603386002
|
£3.34
|
£4.01
|
|
|
653 - SILENCER
BSD-3607000074.A31
3607000074
|
£23.86
|
£28.63
|
|
|
654 - SILENCER
BSD-3607000023.A11
3607000023
|
£11.30
|
£13.56
|
|
|
702 - KEY CHUCK dia1-10 MM. 3/8
BSD-1608571020.A120
1608571020
|
-
|
|
|
|
702/7 - CHUCK WRENCH SG2
BSD-2607950007.A351
2607950007
|
£6.52
|
£7.83
|
|
|
753 - SILENCER
BSD-3607000074.A32
3607000074
|
£23.86
|
£28.63
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031044.A12
3607031044
|
-
|
|
|
|
804 - PARTS SET
BSD-3607030256.A60
3607030256
|
£30.42
|
£36.51
|
|
|
855 - PARTS SET
BSD-3607010000.A29
3607010000
|
£5.58
|
£6.70
|
|
|
858 - PARTS SET
BSD-3607010023.A23
3607010023
|
£5.58
|
£6.70
|
|
|
870 - ASSEMBLY OF SERVICE PARTS
BSD-3607031038.A15
3607031038
|
£40.80
|
£48.96
|
|
|
873 - O-RING
BSD-3607010003.A23
3607010003
|
£16.41
|
£19.69
|
|
|
882 - O-RING
BSD-3607010006.A5
3607010006
|
£31.64
|
£37.97
|
|
