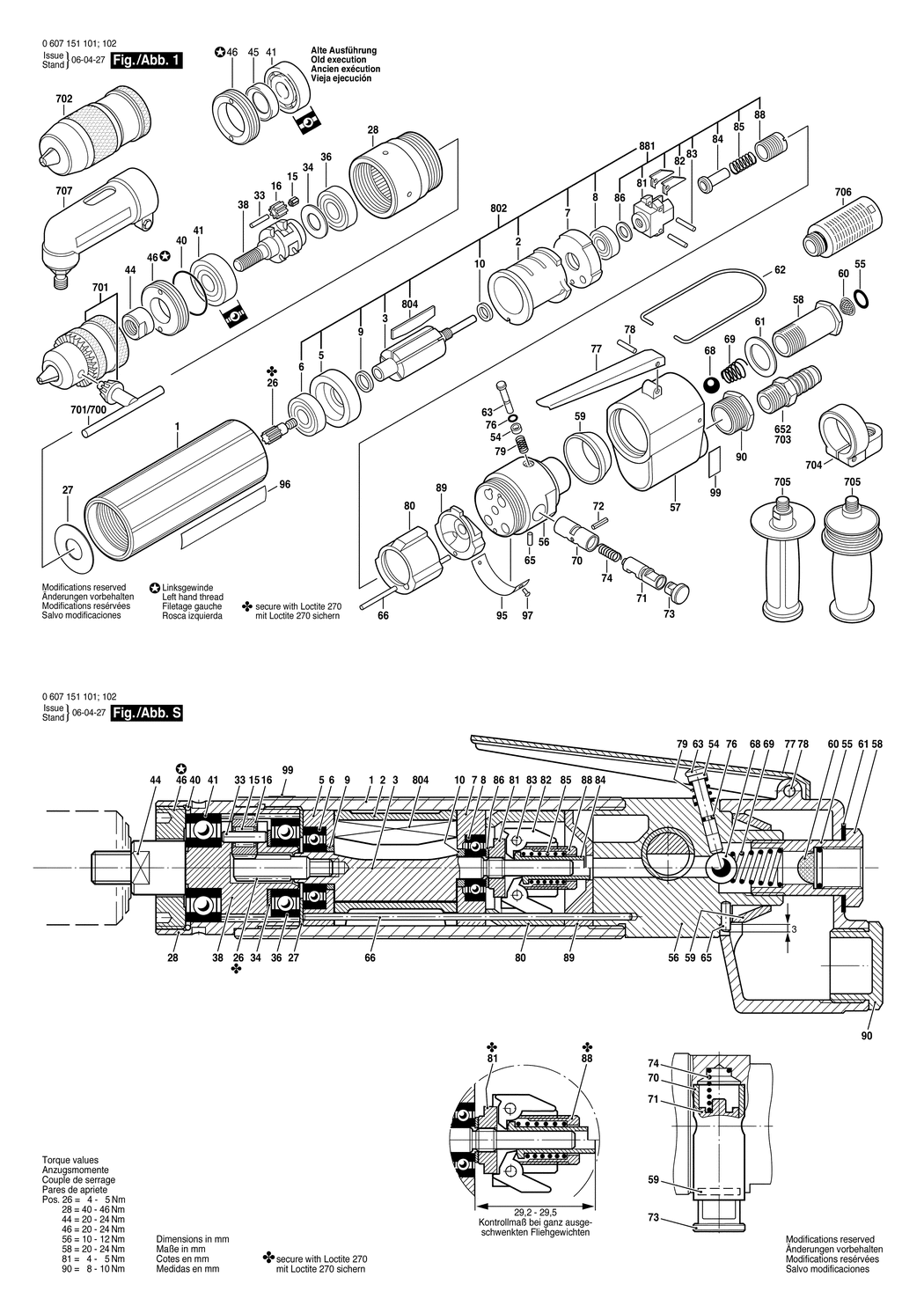

1 - MOTOR HOUSING
BSD-3600760016.A5
3600760016
|
£102.57
|
£123.08
|
|
|
2 - STATOR 370W
BSD-3604090003.A105
3604090003
|
£93.88
|
£112.65
|
|
|
3 - ROTOR
BSD-3604220004.A14
3604220004
|
£93.88
|
£112.65
|
|
|
5 - BEARING FLANGE
BSD-3605700005.A25
3605700005
|
£54.42
|
£65.30
|
|
|
6 - BALL BEARING 7x19x6
BSD-2600905032.A389
2600905032
|
£5.30
|
£6.36
|
|
|
7 - BEARING FLANGE
BSD-3605700007.A7
3605700007
|
£63.50
|
£76.20
|
|
|
8 - BALL BEARING 7x19x6
BSD-2600905032.A390
2600905032
|
£5.30
|
£6.36
|
|
|
9 - SPACER RING
BSD-2600202013.A2
2600202013
|
£8.67
|
£10.41
|
|
|
10 - SPACER RING
BSD-2600202014.A194
2600202014
|
£11.30
|
£13.56
|
|
|
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A339
3600913000
|
£4.26
|
£5.11
|
|
|
16 - CYLINDRICAL GEAR
BSD-3606316101.A85
3606316101
|
£21.68
|
£26.01
|
|
|
26 - PINION Z=8
BSD-3606300004.A12
3606300004
|
£23.86
|
£28.63
|
|
|
27 - STOP DISC
BSD-3600101001.A97
3600101001
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=49
BSD-3606334001.A1
3606334001
|
£93.88
|
£112.65
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A180
3603201000
|
£1.75
|
£2.10
|
|
|
34 - SHIM WASHER
BSD-3600103002.A132
3600103002
|
£3.72
|
£4.47
|
|
|
36 - GROOVE BALL BEARING 12x28x8
BSD-1900900287.A73
1900900287
|
£21.68
|
£26.01
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337006.A14
3606337006
|
£81.81
|
£98.17
|
|
|
40 - PARTS SET
BSD-3607010007.A12
3607010007
|
£18.96
|
£22.75
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905069.A46
3600905069
|
£16.41
|
£19.69
|
|
|
44 - THREADED BUSHING
BSD-3600390003.A111
3600390003
|
£12.04
|
£14.45
|
|
|
46 - THREADED RING
BSD-3603344000.A16
3603344000
|
£16.41
|
£19.69
|
|
|
54 - SPACER BUSHING
BSD-3600328021.A10
3600328021
|
-
|
|
|
|
55 - O-RING 10x2 MM
BSD-1900210306.A177
1900210306
|
£1.75
|
£2.10
|
|
|
56 - VALVE BODY
BSD-3605190005.A1
3605190005
|
-
|
|
|
|
57 - SILENCER
BSD-3605190014.A32
3605190014
|
-
|
|
|
|
58 - FITTING
BSD-3603458001.A1
3603458001
|
-
|
|
|
|
59 - SINTERED-METAL BUSHING
BSD-3600521000.A0
3600521000
|
-
|
|
|
|
60 - STRAINER
BSD-3600002000.A234
3600002000
|
£3.72
|
£4.47
|
|
|
61 - PLAIN WASHER
BSD-3600101003.A19
3600101003
|
-
|
|
|
|
62 - SUSPENSION LOOP
BSD-2604720004.A76
2604720004
|
£4.26
|
£5.11
|
|
|
63 - PRESSURE SPINDLE
BSD-3603123000.A2
3603123000
|
-
|
|
|
|
65 - STRAIGHT PIN 3 H 8x6 DIN 7
BSD-2917500074.A2
2917500074
|
-
|
|
|
|
66 - STRAIGHT PIN
BSD-3604710001.A5
3604710001
|
-
|
|
|
|
68 - BALL III DIN 5401 ST
BSD-1903230529.A10
1903230529
|
-
|
|
|
|
69 - COMPRESSION SPRING
BSD-3604643002.A26
3604643002
|
£2.80
|
£3.36
|
|
|
70 - VALVE BUSHING
BSD-3600390008.A2
3600390008
|
-
|
|
|
|
71 - CONTROL PISTON
BSD-3608750000.A15
3608750000
|
-
|
|
|
|
72 - SLOTTED SPRING PIN 2x12 DIN 1481
BSD-2917760037.A2
2917760037
|
-
|
|
|
|
73 - PUSH-BUTTON
BSD-3603122000.A5
3603122000
|
-
|
|
|
|
74 - COMPRESSION SPRING
BSD-3604611002.A15
3604611002
|
£2.80
|
£3.36
|
|
|
76 - O-RING 1.8x1.0 MM
BSD-3600210002.A46
3600210002
|
£2.61
|
£3.13
|
|
|
77 - CONTROL LEVER
BSD-3601902000.A0
3601902000
|
-
|
|
|
|
78 - STRAIGHT PIN 3 H 8x20 DIN 7
BSD-2917500081.A2
2917500081
|
-
|
|
|
|
79 - COMPRESSION SPRING
BSD-3604610001.A0
3604610001
|
-
|
|
|
|
80 - CONTROL HOUSING
BSD-3600328001.A5
3600328001
|
-
|
|
|
|
81 - FLYWEIGHT CARRIER
BSD-3602125000.A27
3602125000
|
£27.23
|
£32.68
|
|
|
82 - FLYWEIGHT
BSD-3602190004.A6
3602190004
|
£2.16
|
£2.59
|
|
|
83 - NEEDLE ROLLER A 2x11.8G2DIN5402
BSD-1903201002.A0
1903201002
|
£1.75
|
£2.10
|
|
|
84 - CONTROL SLEEVE
BSD-3600322000.A4
3600322000
|
-
|
|
|
|
85 - COMPRESSION SPRING
BSD-3604612001.A22
3604612001
|
£2.16
|
£2.59
|
|
|
86 - SHIM 0.3 MM
BSD-2600100570.A339
2600100570
|
£1.75
|
£2.10
|
|
|
88 - THREADED BUSHING
BSD-3600361000.A28
3600361000
|
£2.80
|
£3.36
|
|
|
89 - INTERMEDIATE PIECE
BSD-3600516000.A3
3600516000
|
-
|
|
|
|
90 - SILENCER
BSD-3603462000.A89
3603462000
|
£16.41
|
£19.69
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A29
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A204
1601110481
|
£2.16
|
£2.59
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A278
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1419
3601119236
|
£3.72
|
£4.47
|
|
|
652 - HOSE FITTING
BSD-2603386002.A223
2603386002
|
£5.30
|
£6.36
|
|
|
701 - KEY CHUCK dia1-10 MM. 3/8
BSD-1608571020.A144
1608571020
|
-
|
|
|
|
701/700 - CHUCK WRENCH SG2
BSD-2607950007.A1620
2607950007
|
£6.52
|
£7.83
|
|
|
702 - KEYLESS CHUCK dia 0-8 MM.3/8.
BSD-1608572012.A22
1608572012
|
-
|
|
|
|
703 - HOSE FITTING dia 8 MM
BSD-3603386001.A79
3603386001
|
£16.41
|
£19.69
|
|
|
704 - SUPPORT CLAMP
BSD-3608040000.A66
3608040000
|
-
|
|
|
|
705 - AUXILIARY HANDLE M14
BSD-1602025022.A626
1602025022
|
£13.41
|
£16.09
|
|
|
705 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A728
1602025030
|
£18.96
|
£22.75
|
|
|
706 - SILENCER
BSD-3607000073.A152
3607000073
|
£18.96
|
£22.75
|
|
|
707 - COMBI ANGLE DRIVE
BSD-1608580011.A12
1608580011
|
-
|
|
|
|
802 - REFLECTOR AND DRIVE ASSY.
BSD-3607031014.A5
3607031014
|
-
|
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030248.A65
3607030248
|
£31.64
|
£37.97
|
|
|
881 - ASSEMBLY OF SERVICE PARTS
BSD-3607031005.A13
3607031005
|
£63.50
|
£76.20
|
|
