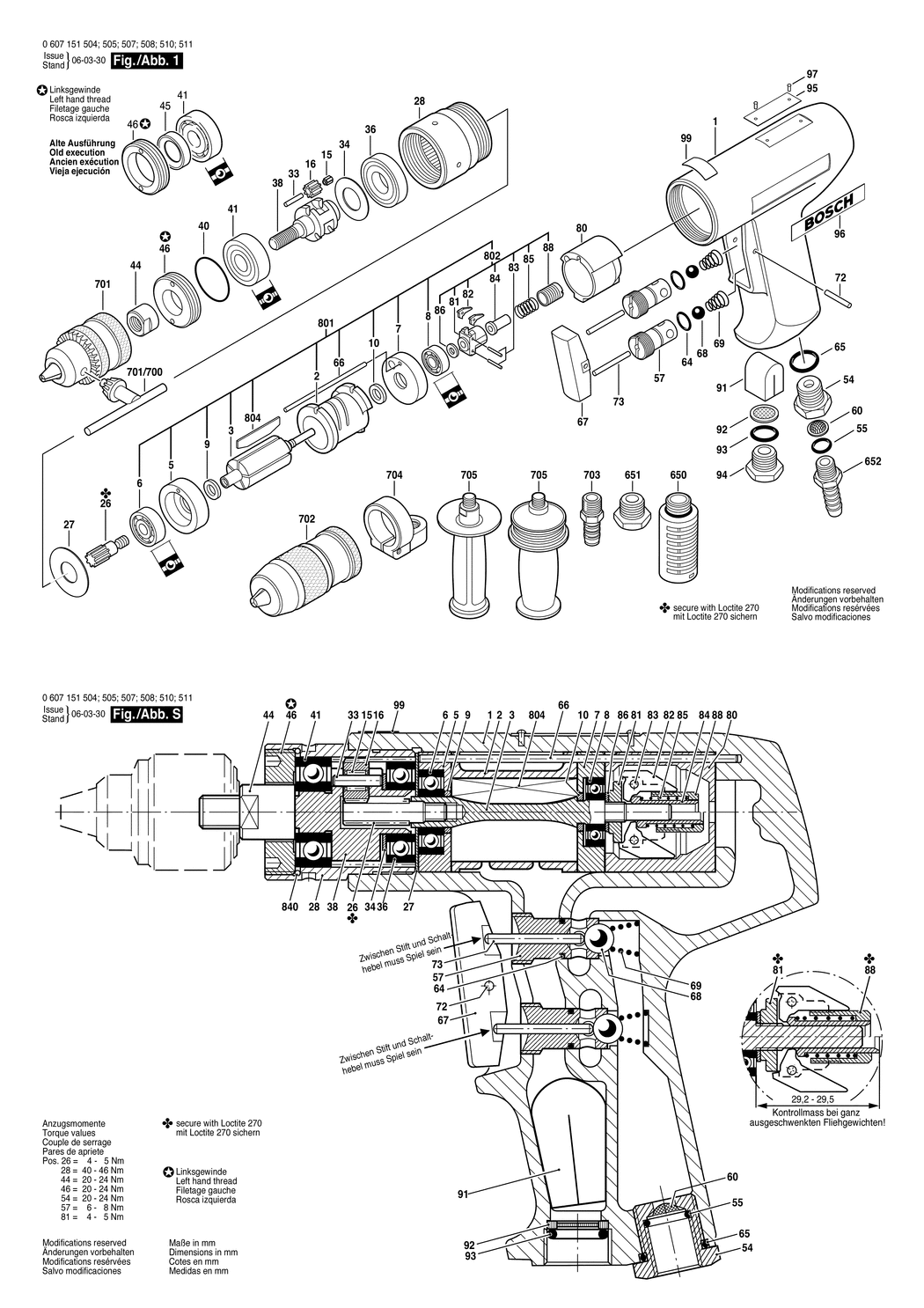

1 - MOTOR HOUSING
BSD-3605108032.A12
3605108032
|
-
|
|
|
|
2 - STATOR 370W
BSD-3604090003.A100
3604090003
|
£93.88
|
£112.65
|
|
|
3 - ROTOR
BSD-3604220004.A5
3604220004
|
£93.88
|
£112.65
|
|
|
5 - BEARING FLANGE
BSD-3605700005.A35
3605700005
|
£54.42
|
£65.30
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A331
3600905039
|
£12.04
|
£14.45
|
|
|
7 - BEARING FLANGE
BSD-3605700008.A25
3605700008
|
-
|
|
|
|
8 - BALL BEARING 7x19x6
BSD-2600905032.A393
2600905032
|
£5.30
|
£6.36
|
|
|
9 - SPACER RING
BSD-2600202013.A13
2600202013
|
£8.67
|
£10.41
|
|
|
10 - SPACER RING
BSD-2600202014.A183
2600202014
|
£11.30
|
£13.56
|
|
|
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A335
3600913000
|
£4.26
|
£5.11
|
|
|
16 - CYLINDRICAL GEAR
BSD-3606316101.A81
3606316101
|
£21.68
|
£26.01
|
|
|
26 - PINION Z=8
BSD-3606300004.A8
3606300004
|
£23.86
|
£28.63
|
|
|
27 - STOP DISC
BSD-3600101001.A89
3600101001
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=49
BSD-3606334001.A4
3606334001
|
£93.88
|
£112.65
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A189
3603201000
|
£1.75
|
£2.10
|
|
|
34 - SHIM WASHER
BSD-3600103002.A128
3600103002
|
£3.72
|
£4.47
|
|
|
36 - GROOVE BALL BEARING 12x28x8
BSD-1900900287.A61
1900900287
|
£21.68
|
£26.01
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337006.A17
3606337006
|
£81.81
|
£98.17
|
|
|
40 - O-RING 10x2 MM
BSD-1900210306.A194
1900210306
|
£1.75
|
£2.10
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905069.A34
3600905069
|
£16.41
|
£19.69
|
|
|
44 - THREADED BUSHING
BSD-3600390003.A100
3600390003
|
£12.04
|
£14.45
|
|
|
46 - THREADED RING
BSD-3603344000.A6
3603344000
|
£16.41
|
£19.69
|
|
|
54 - FITTING
BSD-3603458008.A19
3603458008
|
£8.67
|
£10.41
|
|
|
55 - O-RING 10x2 MM
BSD-1900210306.A195
1900210306
|
£1.75
|
£2.10
|
|
|
57 - VALVE BUSHING
BSD-3600364008.A6
3600364008
|
-
|
|
|
|
60 - STRAINER
BSD-3600002000.A240
3600002000
|
£3.72
|
£4.47
|
|
|
64 - O-RING 9.0x1.5 MM
BSD-2600210021.A26
2600210021
|
£1.75
|
£2.10
|
|
|
65 - O-RING 15.6x1.8 MM
BSD-3600210003.A58
3600210003
|
£1.75
|
£2.10
|
|
|
66 - STRAIGHT PIN
BSD-3604710025.A15
3604710025
|
£7.36
|
£8.83
|
|
|
67 - CONTROL LEVER
BSD-3602053000.A18
3602053000
|
-
|
|
|
|
68 - BALL
BSD-3603230000.A42
3603230000
|
£2.80
|
£3.36
|
|
|
69 - COMPRESSION SPRING
BSD-3604616002.A27
3604616002
|
£2.16
|
£2.59
|
|
|
72 - STRAIGHT PIN 3 M 6x24 DIN 7
BSD-2917510083.A16
2917510083
|
-
|
|
|
|
73 - STRAIGHT PIN
BSD-3603101000.A5
3603101000
|
-
|
|
|
|
80 - CONTROL HOUSING
BSD-3600328023.A3
3600328023
|
£14.75
|
£17.70
|
|
|
81 - FLYWEIGHT CARRIER
BSD-3602125000.A19
3602125000
|
£27.23
|
£32.68
|
|
|
82 - FLYWEIGHT
BSD-3602190004.A14
3602190004
|
£2.16
|
£2.59
|
|
|
83 - NEEDLE ROLLER A 2x11.8G2DIN5402
BSD-1903201002.A16
1903201002
|
£1.75
|
£2.10
|
|
|
84 - CONTROL SLEEVE
BSD-3600322000.A18
3600322000
|
-
|
|
|
|
85 - COMPRESSION SPRING
BSD-3604612001.A18
3604612001
|
£2.16
|
£2.59
|
|
|
86 - SHIM 0.3 MM
BSD-2600100570.A358
2600100570
|
£1.75
|
£2.10
|
|
|
88 - THREADED BUSHING
BSD-3600361000.A7
3600361000
|
£2.80
|
£3.36
|
|
|
91 - SILENCER
BSD-3601010006.A79
3601010006
|
£1.75
|
£2.10
|
|
|
92 - FILTER SCREEN
BSD-3600002004.A43
3600002004
|
£2.80
|
£3.36
|
|
|
93 - O-RING 14.0x3.0 MM
BSD-3600210009.A2
3600210009
|
£1.32
|
£1.58
|
|
|
94 - SILENCER
BSD-3603462000.A70
3603462000
|
£16.41
|
£19.69
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A18
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A217
1601110481
|
£2.16
|
£2.59
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A264
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1387
3601119236
|
£3.72
|
£4.47
|
|
|
650 - SILENCER
BSD-3607000073.A139
3607000073
|
£18.96
|
£22.75
|
|
|
651 - SILENCER
BSD-3603462000.A69
3603462000
|
£16.41
|
£19.69
|
|
|
652 - HOSE FITTING
BSD-2603386002.A235
2603386002
|
£5.30
|
£6.36
|
|
|
701 - KEY CHUCK dia1-10 MM. 3/8
BSD-1608571020.A128
1608571020
|
-
|
|
|
|
701/700 - CHUCK WRENCH SG2
BSD-2607950007.A1641
2607950007
|
£6.52
|
£7.83
|
|
|
702 - KEYLESS CHUCK dia 0-8 MM.3/8.
BSD-1608572012.A11
1608572012
|
-
|
|
|
|
703 - HOSE FITTING dia 8 MM
BSD-3603386001.A99
3603386001
|
£16.41
|
£19.69
|
|
|
704 - SUPPORT CLAMP
BSD-3608040000.A61
3608040000
|
-
|
|
|
|
705 - AUXILIARY HANDLE M14
BSD-1602025022.A637
1602025022
|
£13.41
|
£16.09
|
|
|
705 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A719
1602025030
|
£18.96
|
£22.75
|
|
|
801 - REFLECTOR AND DRIVE ASSY.
BSD-3607031021.A8
3607031021
|
-
|
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031005.A2
3607031005
|
£63.50
|
£76.20
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030248.A53
3607030248
|
£31.64
|
£37.97
|
|
