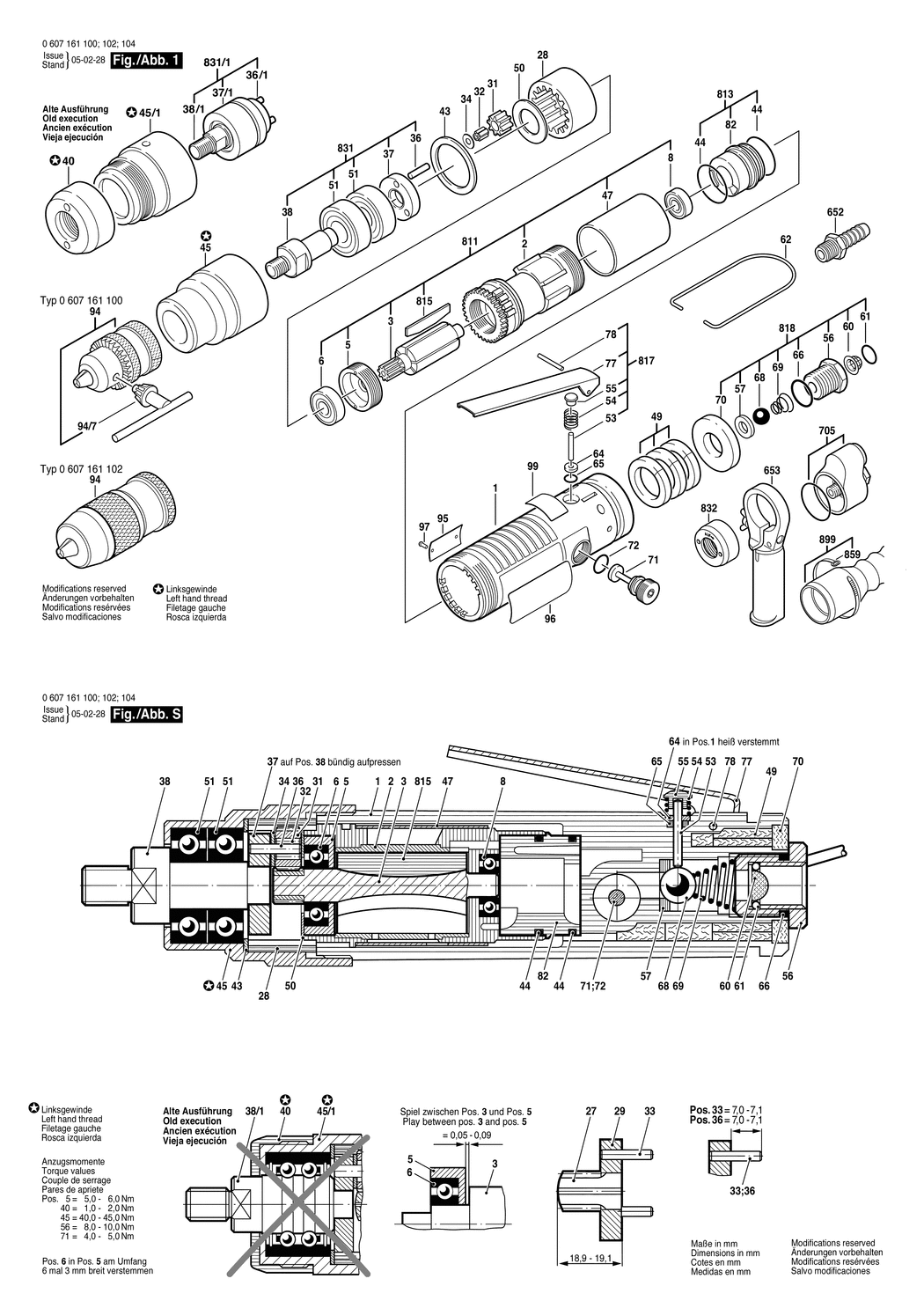

An exploded drawing and listing for the Bosch 400 WATT-SERIE / 0607161100 / ---
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605108070.A6 3605108070 £33.74 £40.49
2 - STATOR 400W BSD-3604090046.A54 3604090046 £102.57 £123.08
3 - ROTOR BSD-3604220061.A2 3604220061 £135.25 £162.30
5 - BEARING FLANGE BSD-3605700076.A43 3605700076 £48.38 £58.06
6 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A201 3600905039 £12.04 £14.45
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A227 1900905028 £33.74 £40.49
28 - RING GEAR Z=42 BSD-3606334055.A3 3606334055 £21.52 £25.83
31 - CYLINDRICAL GEAR BSD-3606316111.A19 3606316111 £21.52 £25.83
32 - NEEDLE-ROLLER CAGE BSD-3600913006.A47 3600913006 £7.36 £8.83
34 - SHIM 0.20 MM BSD-2600100586.A88 2600100586 £1.75 £2.10
36 - NEEDLE ROLLER BSD-3603201047.A46 3603201047 £1.75 £2.10
37 - CARRIER BSD-3606337121.A5 3606337121 -
38 - STUD BOLT BSD-3603100022.A3 3603100022 -
43 - STOP DISC BSD-3600102021.A17 3600102021 £3.72 £4.47
44 - O-RING 26.0x1.5 MM BSD-2600210018.A109 2600210018 £3.72 £4.47
45 - GEAR HOUSING BSD-3605125037.A1 3605125037 £59.53 £71.44
47 - SPIGOT BSD-3600700032.A35 3600700032 £21.68 £26.01
49 - SILENCER BSD-3601010006.A6 3601010006 £1.75 £2.10
50 - RETAINING WASHER BSD-3600101036.A40 3600101036 £4.26 £5.11
51 - GROOVE BALL BEARING BSD-3600905045.A15 3600905045 £16.41 £19.69
53 - NEEDLE ROLLER BSD-3603201050.A15 3603201050 £1.75 £2.10
54 - COMPRESSION SPRING BSD-3604611006.A114 3604611006 £2.16 £2.59
55 - VALVE CONE BSD-3603132000.A36 3603132000 £2.80 £3.36
56 - FITTING BSD-3603458008.A80 3603458008 £8.67 £10.41
57 - SEALING DISK BSD-3600206006.A24 3600206006 -
60 - STRAINER BSD-3600002000.A59 3600002000 £3.72 £4.47
61 - O-RING 10x2 MM BSD-1900210306.A13 1900210306 £1.75 £2.10
62 - SUSPENSION LOOP BSD-3604720004.A21 3604720004 £2.80 £3.36
64 - PLAIN WASHER DIN 125-A3.2-ST BSD-2916011006.A97 2916011006 £1.75 £2.10
65 - O-RING 2.4x1.9 MM BSD-2600210007.A43 2600210007 £2.16 £2.59
66 - O-RING 16x1.25 MM BSD-3600210036.A17 3600210036 £2.16 £2.59
68 - BALL DIN 5401-9.5MM-III-ST BSD-1903230528.A58 1903230528 £1.75 £2.10
69 - COMPRESSION SPRING BSD-3604616008.A43 3604616008 -
70 - SILENCER BSD-3600105002.A31 3600105002 £10.10 £12.12
71 - VALVE PISTON BSD-3608750028.A2 3608750028 £5.58 £6.70
72 - O-RING BSD-1900210307.A19 1900210307 £4.26 £5.11
77 - CONTROL LEVER BSD-3601902001.A39 3601902001 £6.52 £7.83
78 - GROOVED PIN DIN 1475-2x18-ST BSD-2917700040.A84 2917700040 £2.80 £3.36
82 - INTERMEDIATE PIECE BSD-3608750027.A35 3608750027 £14.91 £17.89
94 - KEY CHUCK dia1.0-10MM.1/2 BSD-1608571081.A20 1608571081 £27.23 £32.68
94/7 - CHUCK WRENCH SG2 BSD-2607950007.A331 2607950007 £6.52 £7.83
95 - MANUFACTURER'S NAMEPLATE BSD-3601110047.A1 3601110047 £2.80 £3.36
96 - MANUFACTURER'S NAMEPLATE BSD-3601110039.A35 3601110039 £5.30 £6.36
97 - GROOVED NAIL BSD-3603133000.A464 3603133000 £2.61 £3.13
99 - REFERENCE PLATE BSD-3601119236.A319 3601119236 £3.72 £4.47
652 - HOSE FITTING BSD-2603386002.A93 2603386002 £5.30 £6.36
653 - AUXILIARY HANDLE BSD-3602025009.A41 3602025009 £18.96 £22.75
705 - AIR HOSE SET BSD-3607030024.A10 3607030024 £37.72 £45.27
811 - ASSEMBLY OF SERVICE PARTS BSD-3607030034.A0 3607030034 £306.65 £367.98
813 - ASSEMBLY OF SERVICE PARTS BSD-3607030028.A1 3607030028 £12.04 £14.45
815 - ROTOR LAMELLA BSD-3607030030.A81 3607030030 £31.64 £37.97
817 - CONTROL LEVER BSD-3607030032.A1 3607030032 £13.12 £15.75
818 - ASSEMBLY OF SERVICE PARTS BSD-3607030033.A30 3607030033 £31.64 £37.97
831 - RING BALL BEARING BSD-3600905079.A1 3600905079 £102.57 £123.08
832 - COVER BSD-3600508013.A19 3600508013 £6.52 £7.83
859 - HOLDING BELT BSD-3604710062.A116 3604710062 £1.75 £2.10
899 - AIR HOSE BSD-3607000027.A43 3607000027 £33.74 £40.49
