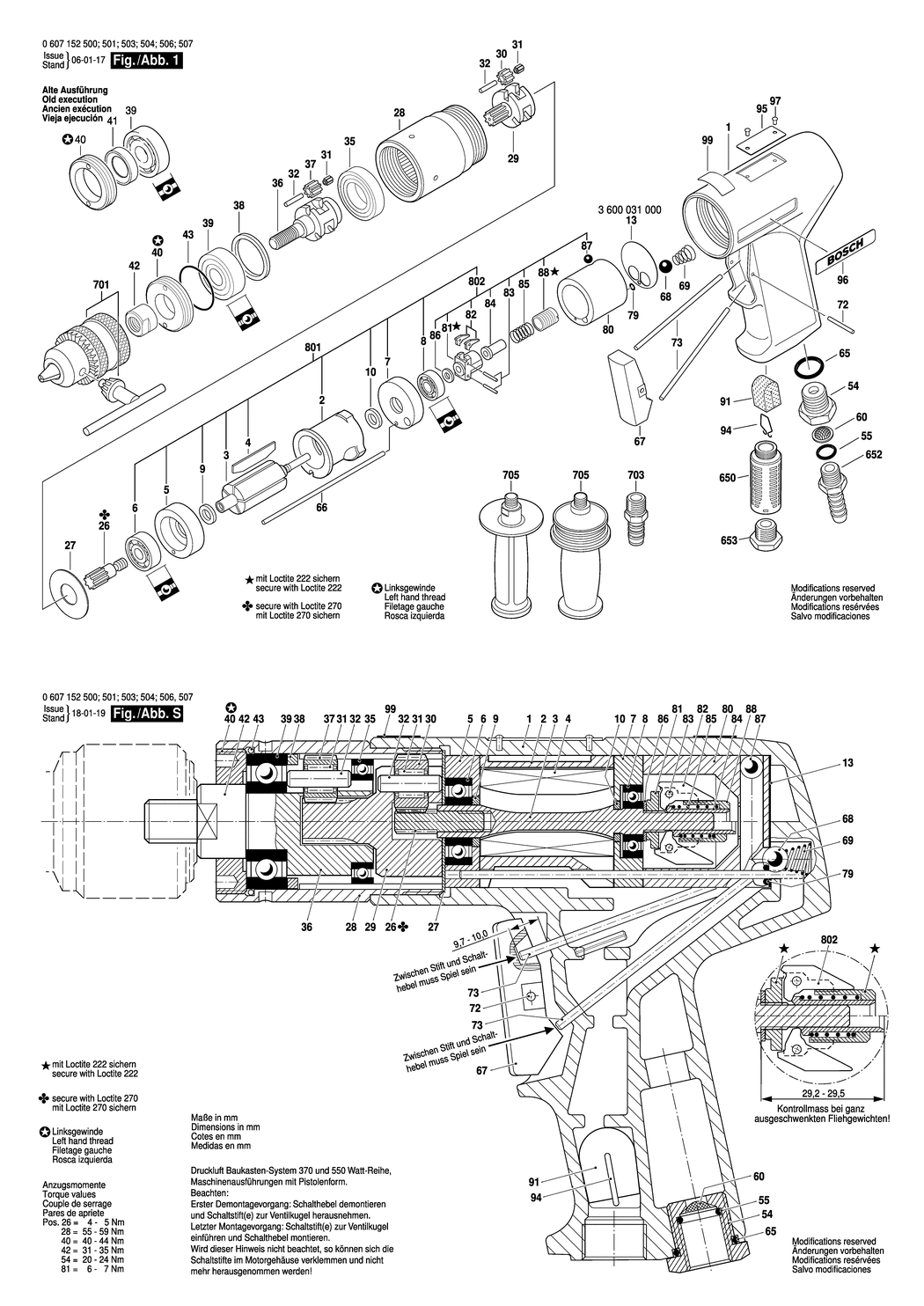

1 - MOTOR HOUSING
BSD-3605108026.A0
3605108026
|
£218.41
|
£262.09
|
|
|
2 - STATOR 550W
BSD-3604090009.A19
3604090009
|
£93.88
|
£112.65
|
|
|
3 - ROTOR
BSD-3604220006.A5
3604220006
|
£81.81
|
£98.17
|
|
|
4 - ASSEMBLY OF SERVICE PARTS
BSD-3607030260.A39
3607030260
|
£21.68
|
£26.01
|
|
|
5 - BEARING FLANGE
BSD-3605700014.A31
3605700014
|
£59.53
|
£71.44
|
|
|
6 - GROOVE BALL BEARING 10x26x8
BSD-1900905127.A67
1900905127
|
£27.23
|
£32.68
|
|
|
7 - BEARING FLANGE
BSD-3605700012.A6
3605700012
|
£33.74
|
£40.49
|
|
|
8 - BALL BEARING 8x22x7
BSD-1900905029.A219
1900905029
|
£21.52
|
£25.83
|
|
|
9 - SPACER RING
BSD-2600200007.A29
2600200007
|
£10.10
|
£12.12
|
|
|
10 - SPACER RING
BSD-3600202004.A58
3600202004
|
£11.30
|
£13.56
|
|
|
13 - SEALING PLATE
BSD-3600031000.A6
3600031000
|
£2.16
|
£2.59
|
|
|
26 - PINION
BSD-3606300156.A6
3606300156
|
£31.64
|
£37.97
|
|
|
27 - STOP DISC
BSD-3600101004.A31
3600101004
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=46
BSD-3606334002.A12
3606334002
|
£135.25
|
£162.30
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337010.A13
3606337010
|
£93.88
|
£112.65
|
|
|
30 - CYLINDRICAL GEAR
BSD-3606316102.A1
3606316102
|
£31.64
|
£37.97
|
|
|
31 - NEEDLE-ROLLER ASSEMBLY
BSD-3600910000.A13
3600910000
|
£4.26
|
£5.11
|
|
|
32 - NEEDLE ROLLER
BSD-3603201005.A15
3603201005
|
£2.80
|
£3.36
|
|
|
35 - GROOVE BALL BEARING 25x37x7
BSD-3600905001.A19
3600905001
|
£31.64
|
£37.97
|
|
|
36 - PLANETARY-GEAR CARRIER
BSD-3606337012.A11
3606337012
|
£102.57
|
£123.08
|
|
|
37 - CYLINDRICAL GEAR Z=16
BSD-3606316091.A20
3606316091
|
£2.80
|
£3.36
|
|
|
38 - STOP DISC
BSD-3600101005.A25
3600101005
|
£6.52
|
£7.83
|
|
|
39 - GROOVE BALL BEARING
BSD-3600905025.A54
3600905025
|
£16.41
|
£19.69
|
|
|
40 - THREADED RING
BSD-3603344001.A4
3603344001
|
£16.41
|
£19.69
|
|
|
42 - THREADED SLEEVE
BSD-3600390004.A1
3600390004
|
£31.64
|
£37.97
|
|
|
43 - O-RING 41.0x1.78 MM
BSD-3600210006.A25
3600210006
|
£2.16
|
£2.59
|
|
|
54 - FITTING
BSD-3603458008.A22
3603458008
|
£8.67
|
£10.41
|
|
|
55 - O-RING 10x2 MM
BSD-1900210306.A178
1900210306
|
£1.75
|
£2.10
|
|
|
60 - STRAINER
BSD-3600002000.A245
3600002000
|
£3.72
|
£4.47
|
|
|
65 - O-RING 15.6x1.8 MM
BSD-3600210003.A64
3600210003
|
£1.75
|
£2.10
|
|
|
66 - STRAIGHT PIN
BSD-3604710007.A12
3604710007
|
£10.10
|
£12.12
|
|
|
67 - CONTROL LEVER
BSD-3602053005.A7
3602053005
|
£14.91
|
£17.89
|
|
|
68 - BALL dia9 MM
BSD-3603230004.A66
3603230004
|
£3.72
|
£4.47
|
|
|
69 - COMPRESSION SPRING
BSD-3604616002.A24
3604616002
|
£2.16
|
£2.59
|
|
|
72 - STRAIGHT PIN 3M6x24 DIN 7-C35K
BSD-2917610083.A105
2917610083
|
£1.75
|
£2.10
|
|
|
73 - STRAIGHT PIN
BSD-3604710003.A24
3604710003
|
£6.52
|
£7.83
|
|
|
79 - O-RING 1.8x1.0 MM
BSD-3600210002.A37
3600210002
|
£2.61
|
£3.13
|
|
|
80 - CONTROL SLEEVE
BSD-3600390006.A6
3600390006
|
£156.22
|
£187.46
|
|
|
81 - FLYWEIGHT CARRIER
BSD-3602125000.A7
3602125000
|
£27.23
|
£32.68
|
|
|
82 - FLYWEIGHT
BSD-3602190004.A26
3602190004
|
£2.16
|
£2.59
|
|
|
83 - NEEDLE ROLLER A 2x11.8G2DIN5402
BSD-1903201002.A21
1903201002
|
£1.75
|
£2.10
|
|
|
84 - CONTROL SLEEVE
BSD-3600322000.A22
3600322000
|
-
|
|
|
|
85 - COMPRESSION SPRING
BSD-3604612001.A12
3604612001
|
£2.16
|
£2.59
|
|
|
86 - SHIM 0.3 MM
BSD-2600100570.A354
2600100570
|
£1.75
|
£2.10
|
|
|
87 - BALL
BSD-3603230000.A33
3603230000
|
£2.80
|
£3.36
|
|
|
88 - THREADED BUSHING
BSD-3600361000.A12
3600361000
|
£2.80
|
£3.36
|
|
|
91 - SILENCER
BSD-3601010001.A51
3601010001
|
£2.16
|
£2.59
|
|
|
94 - HOLDING SPRING
BSD-3601250003.A45
3601250003
|
£2.80
|
£3.36
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A12
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A222
1601110481
|
£2.16
|
£2.59
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A259
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1381
3601119236
|
£3.72
|
£4.47
|
|
|
650 - SILENCER
BSD-3607000073.A131
3607000073
|
£18.96
|
£22.75
|
|
|
652 - HOSE FITTING
BSD-2603386002.A238
2603386002
|
£5.30
|
£6.36
|
|
|
653 - SILENCER
BSD-3603462000.A74
3603462000
|
£16.41
|
£19.69
|
|
|
701 - KEY CHUCK dia1.5-13 MM. 1/2
BSD-1608571022.A14
1608571022
|
-
|
|
|
|
701/700 - CHUCK WRENCH SG2
BSD-2607950007.A1638
2607950007
|
£6.52
|
£7.83
|
|
|
703 - HOSE FITTING dia 8 MM
BSD-3603386001.A94
3603386001
|
£16.41
|
£19.69
|
|
|
705 - AUXILIARY HANDLE dia48 MM
BSD-3602025007.A7
3602025007
|
£27.23
|
£32.68
|
|
|
705 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A714
1602025030
|
£18.96
|
£22.75
|
|
|
801 - ASSEMBLY OF SERVICE PARTS
BSD-3607031028.A0
3607031028
|
£306.65
|
£367.98
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031029.A8
3607031029
|
£63.50
|
£76.20
|
|
