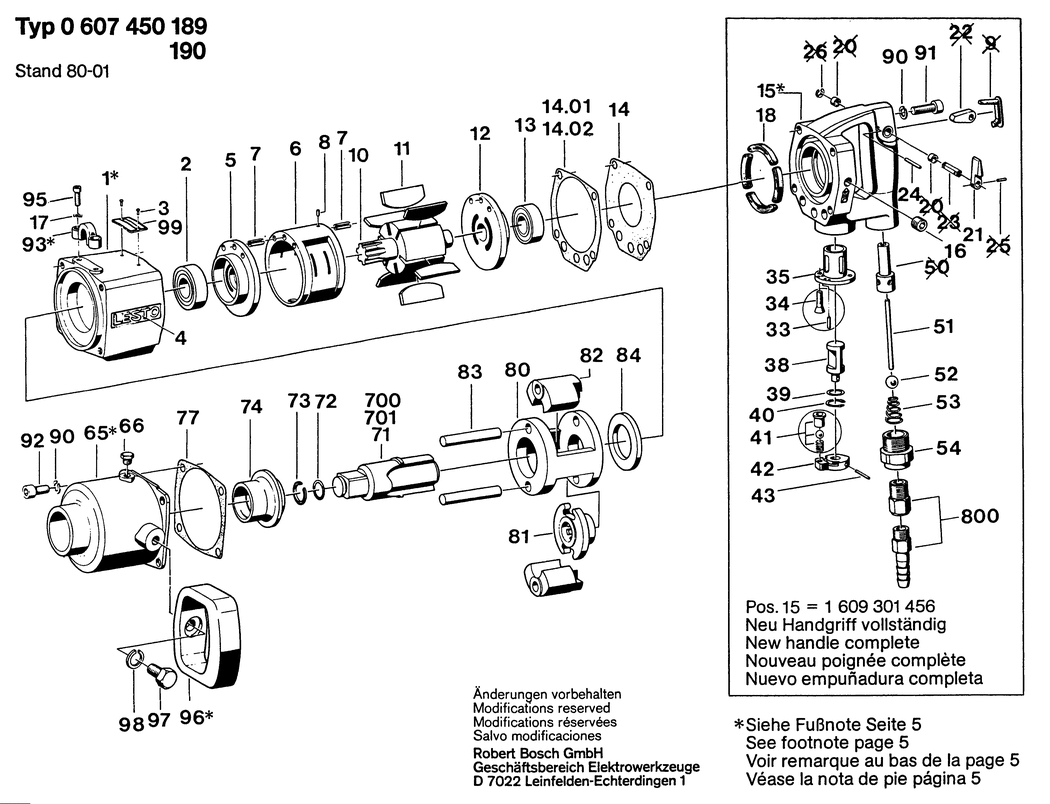

1 - MOTOR HOUSING
BSD-1609301103.A0
1609301103
|
-
|
|
|
|
2 - GROOVE BALL BEARING 6205 DIN 625
BSD-1900900307.A18
1900900307
|
-
|
|
|
|
3 - ROUND-HEAD GROOVED PIN 2x4 DIN 1476 ST
BSD-2917721032.A12
2917721032
|
-
|
|
|
|
4 - MANUFACTURER'S NAMEPLATE
BSD-1609301208.A1
1609301208
|
-
|
|
|
|
5 - BEARING FLANGE
BSD-1609301107.A1
1609301107
|
-
|
|
|
|
6 - STATOR
BSD-1609301105.A2
1609301105
|
£306.65
|
£367.98
|
|
|
7 - SLOTTED SPRING PIN
BSD-1609301133.A0
1609301133
|
£2.80
|
£3.36
|
|
|
8 - SLOTTED SPRING PIN
BSD-1609301134.A1
1609301134
|
-
|
|
|
|
9 - SEALING CAP
BSD-1609301209.A0
1609301209
|
-
|
|
|
|
10 - ROTOR
BSD-1609301106.A0
1609301106
|
£357.27
|
£428.72
|
|
|
11 - ROTOR LAMELLA
BSD-1609301135.A0
1609301135
|
£23.86
|
£28.63
|
|
|
12 - BEARING FLANGE
BSD-1609301104.A0
1609301104
|
£156.22
|
£187.46
|
|
|
13 - GROOVE BALL BEARING
BSD-1609301132.A2
1609301132
|
-
|
|
|
|
14 - SEALING PLATE
BSD-1609301117.A2
1609301117
|
-
|
|
|
|
15 - HANDLE
BSD-1609301456.A0
1609301456
|
-
|
|
|
|
16 - SCREW PLUG
BSD-1609301390.A2
1609301390
|
£5.87
|
£7.04
|
|
|
17 - SPRING LOCK WASHER M6
BSD-2916690005.A207
2916690005
|
-
|
|
|
|
18 - OILER
BSD-1609301097.A0
1609301097
|
-
|
|
|
|
19 - DRIVE BUSHING
BSD-1609301359.A1
1609301359
|
-
|
|
|
|
20 - BUSHING
BSD-1609301357.A1
1609301357
|
-
|
|
|
|
21 - CONTROL LEVER
BSD-1609301389.A2
1609301389
|
-
|
|
|
|
22 - CONTROL LEVER
BSD-1609301095.A1
1609301095
|
-
|
|
|
|
23 - SWITCHING PIN
BSD-1609301358.A0
1609301358
|
-
|
|
|
|
24 - STRAIGHT PIN
BSD-1609301450.A1
1609301450
|
-
|
|
|
|
25 - SLOTTED SPRING PIN
BSD-1609301122.A1
1609301122
|
-
|
|
|
|
26 - LOCKING WASHER DIN 6799-5-FSt
BSD-2916080008.A120
2916080008
|
-
|
|
|
|
33 - STRAIGHT PIN
BSD-1609301451.A1
1609301451
|
-
|
|
|
|
34 - COUNTERSUNK-HEAD SCREW
BSD-1609301452.A1
1609301452
|
-
|
|
|
|
35 - VALVE BUSHING
BSD-1609301453.A1
1609301453
|
-
|
|
|
|
38 - CONTROL VALVE
BSD-1609301101.A0
1609301101
|
-
|
|
|
|
39 - SEAL RING
BSD-1609301130.A2
1609301130
|
-
|
|
|
|
39 - SEAL RING
BSD-1609301131.A0
1609301131
|
-
|
|
|
|
40 - RETAINING RING
BSD-1609301057.A0
1609301057
|
-
|
|
|
|
41 - DETENT PIN
BSD-1609301059.A4
1609301059
|
-
|
|
|
|
42 - CONTROL LEVER
BSD-1609301102.A2
1609301102
|
-
|
|
|
|
43 - SLOTTED SPRING PIN
BSD-1609301051.A3
1609301051
|
-
|
|
|
|
50 - VALVE BUSHING
BSD-1609301454.A0
1609301454
|
-
|
|
|
|
51 - STRAIGHT PIN
BSD-1609301455.A2
1609301455
|
-
|
|
|
|
52 - BALL
BSD-1609301212.A1
1609301212
|
-
|
|
|
|
53 - COMPRESSION SPRING
BSD-1609301124.A0
1609301124
|
-
|
|
|
|
54 - FITTING
BSD-1609301099.A3
1609301099
|
-
|
|
|
|
65 - GEAR HOUSING
BSD-1609301108.A0
1609301108
|
-
|
|
|
|
66 - SCREW PLUG
BSD-1609301056.A3
1609301056
|
-
|
|
|
|
71 - TOOLHOLDER
BSD-1609301114.A0
1609301114
|
-
|
|
|
|
72 - O-RING
BSD-1609301141.A0
1609301141
|
£6.52
|
£7.83
|
|
|
73 - RETAINING RING
BSD-1609301142.A4
1609301142
|
£7.36
|
£8.83
|
|
|
74 - BUSHING
BSD-1609301115.A1
1609301115
|
-
|
|
|
|
77 - SEALING PLATE
BSD-1609301120.A0
1609301120
|
£16.41
|
£19.69
|
|
|
80 - STRIKER HOLDER
BSD-1609301111.A1
1609301111
|
-
|
|
|
|
81 - CARRIER
BSD-1609301110.A0
1609301110
|
-
|
|
|
|
82 - STRIKER
BSD-1609301112.A0
1609301112
|
-
|
|
|
|
83 - STRAIGHT PIN
BSD-1609301113.A1
1609301113
|
-
|
|
|
|
84 - COVER DISC
BSD-1609301109.A1
1609301109
|
£54.42
|
£65.30
|
|
|
90 - SPRING LOCK WASHER
BSD-1609301139.A1
1609301139
|
-
|
|
|
|
91 - HEX SOCKET HEAD CAP SCREW
BSD-1609301137.A2
1609301137
|
-
|
|
|
|
92 - HEX SOCKET HEAD CAP SCREW
BSD-1609301138.A0
1609301138
|
-
|
|
|
|
93 - SUSPENSION LOOP
BSD-1609300236.A3
1609300236
|
-
|
|
|
|
95 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x15-8.8
BSD-2910141196.A3
2910141196
|
-
|
|
|
|
96 - AUXILIARY HANDLE
BSD-1609301116.A0
1609301116
|
-
|
|
|
|
97 - HEX SCREW
BSD-1609301143.A0
1609301143
|
-
|
|
|
|
98 - SPRING LOCK WASHER
BSD-1609301144.A1
1609301144
|
-
|
|
|
|
99 - NAMEPLATE
BSD-1601104507.A2
1601104507
|
-
|
|
|
|
700 - STRIKER SPINDLE
BSD-1609301044.A0
1609301044
|
-
|
|
|
|
701 - STRIKER SPINDLE
BSD-1609301045.A1
1609301045
|
-
|
|
|
|
702 - CONTROL LEVER
BSD-1609301448.A1
1609301448
|
-
|
|
|
|
800 - HOSE FITTING
BSD-1609301062.A4
1609301062
|
-
|
|
|
