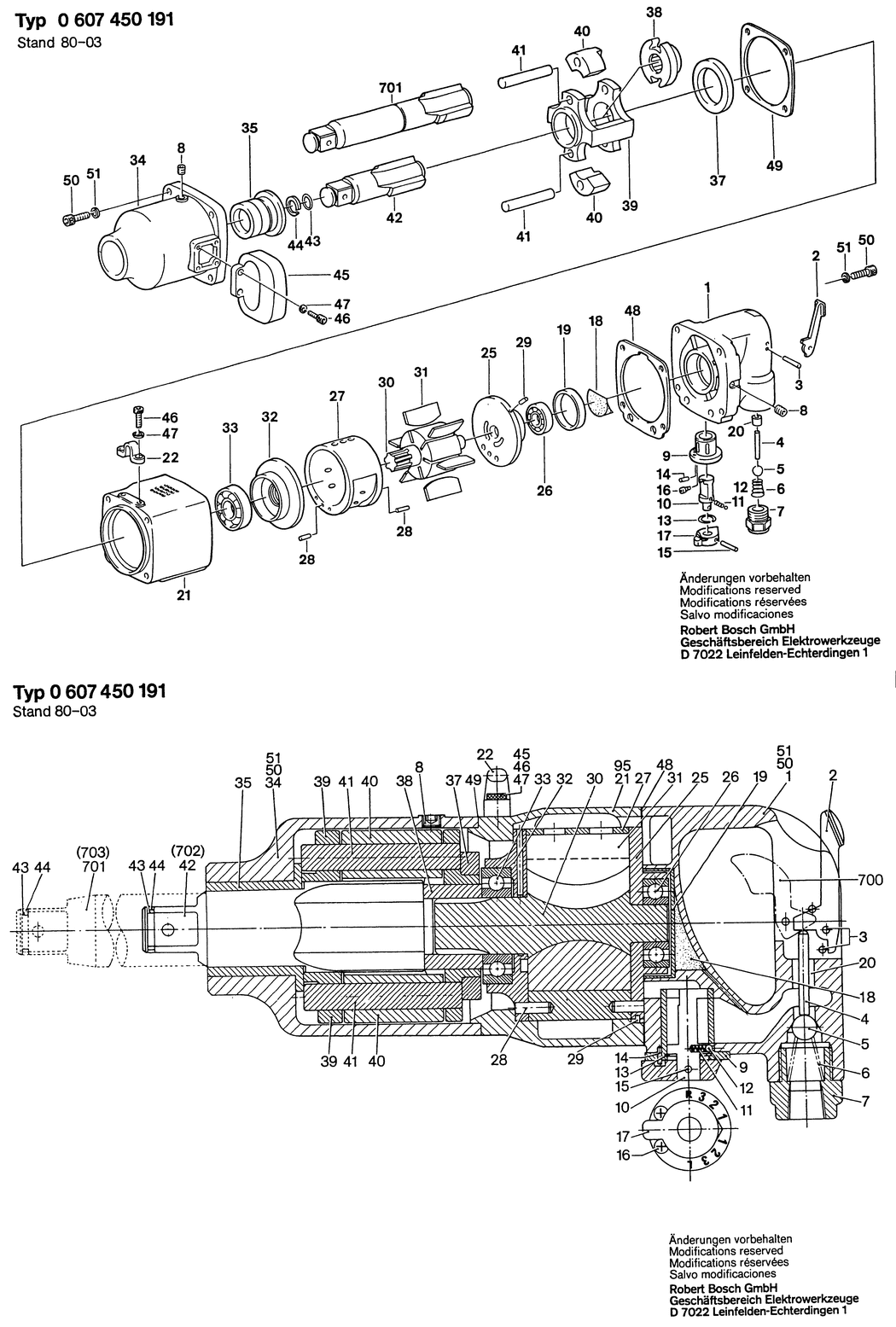

An exploded drawing and listing for the Bosch ---- / 0607450191 / ---
Ex VAT Inc VAT
1 - HANDLE BSD-1609301388.A0 1609301388 -
2 - CONTROL LEVER BSD-1609301389.A0 1609301389 -
3 - STRAIGHT PIN DIN 6325-4M6x24 BSD-2917530101.A40 2917530101 £2.80 £3.36
5 - BALL BSD-1609301213.A3 1609301213 £12.04 £14.45
6 - COMPRESSION SPRING BSD-1609301124.A3 1609301124 -
7 - FITTING BSD-1609301099.A2 1609301099 -
8 - SCREW PLUG BSD-1609301390.A4 1609301390 £5.87 £7.04
9 - VALVE BUSHING BSD-1609301391.A0 1609301391 -
10 - CONTROL VALVE BSD-1609301392.A0 1609301392 -
12 - BALL BSD-1609301393.A0 1609301393 £2.80 £3.36
13 - SPRING RETAINING RING DIN 472-22x1MM BSD-2916660007.A28 2916660007 £1.75 £2.10
14 - STRAIGHT PIN 5M2x10 DIN 6325 BSD-2917530036.A6 2917530036 £1.75 £2.10
15 - SLOTTED SPRING PIN BSD-1609301394.A0 1609301394 -
16 - COUNTERSUNK-HEAD SCREW M 4x14 DIN 965-4.8 BSD-2910860124.A0 2910860124 -
17 - ROTARY KNOB BSD-1609301395.A0 1609301395 -
18 - OILER BSD-1609301097.A3 1609301097 -
19 - SEALING CAP BSD-1609301396.A0 1609301396 -
20 - GUIDE BUSHING BSD-1609301397.A0 1609301397 -
21 - MOTOR HOUSING BSD-1609301398.A0 1609301398 -
22 - SUSPENSION LOOP BSD-1609300236.A1 1609300236 -
25 - BEARING FLANGE BSD-1609301399.A0 1609301399 -
26 - GROOVE BALL BEARING BSD-1609301400.A0 1609301400 £37.27 £44.72
27 - STATOR BSD-1609301401.A0 1609301401 -
28 - SLOTTED SPRING PIN BSD-1609301133.A3 1609301133 £2.80 £3.36
29 - SLOTTED SPRING PIN BSD-1609301402.A0 1609301402 £2.16 £2.59
30 - ROTOR BSD-1609301403.A0 1609301403 -
31 - ROTOR LAMELLA BSD-1609301404.A0 1609301404 -
32 - BEARING FLANGE BSD-1609301405.A0 1609301405 -
33 - GROOVE BALL BEARING BSD-1609301406.A0 1609301406 -
34 - IMPACT MECHANISM HOUSING BSD-1609301407.A0 1609301407 -
35 - BUSHING BSD-1609301408.A0 1609301408 £63.50 £76.20
37 - RETAINING SNAP RING BSD-1609301409.A0 1609301409 -
38 - CARRIER BSD-1609301410.A0 1609301410 -
39 - STRIKER HOLDER BSD-1609301411.A0 1609301411 -
40 - STRIKER BSD-1609301412.A0 1609301412 -
41 - STRAIGHT PIN BSD-1609301413.A0 1609301413 -
42 - STRIKER SPINDLE BSD-1609301414.A0 1609301414 -
43 - O-RING BSD-1609301141.A3 1609301141 £6.52 £7.83
44 - RETAINING RING BSD-1609301142.A1 1609301142 £7.36 £8.83
45 - HANDLE BSD-1609301415.A0 1609301415 £63.50 £76.20
46 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x18-8.8 BSD-2910141199.A0 2910141199 £3.72 £4.47
47 - SPRING LOCK WASHER M6 BSD-2916690005.A208 2916690005 -
48 - SEALING PLATE BSD-1609301416.A0 1609301416 -
49 - SEALING PLATE BSD-1609301417.A0 1609301417 -
50 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x30-8.8 BSD-2910141246.A10 2910141246 -
51 - SPRING LOCK WASHER B 8 DIN 127 BSD-2916680009.A36 2916680009 -
99 - REFERENCE PLATE BSD-3601119236.A328 3601119236 £3.72 £4.47
650 - HOSE FITTING BSD-1609301062.A3 1609301062 -
701 - STRIKER SPINDLE BSD-1609301419.A0 1609301419 -
