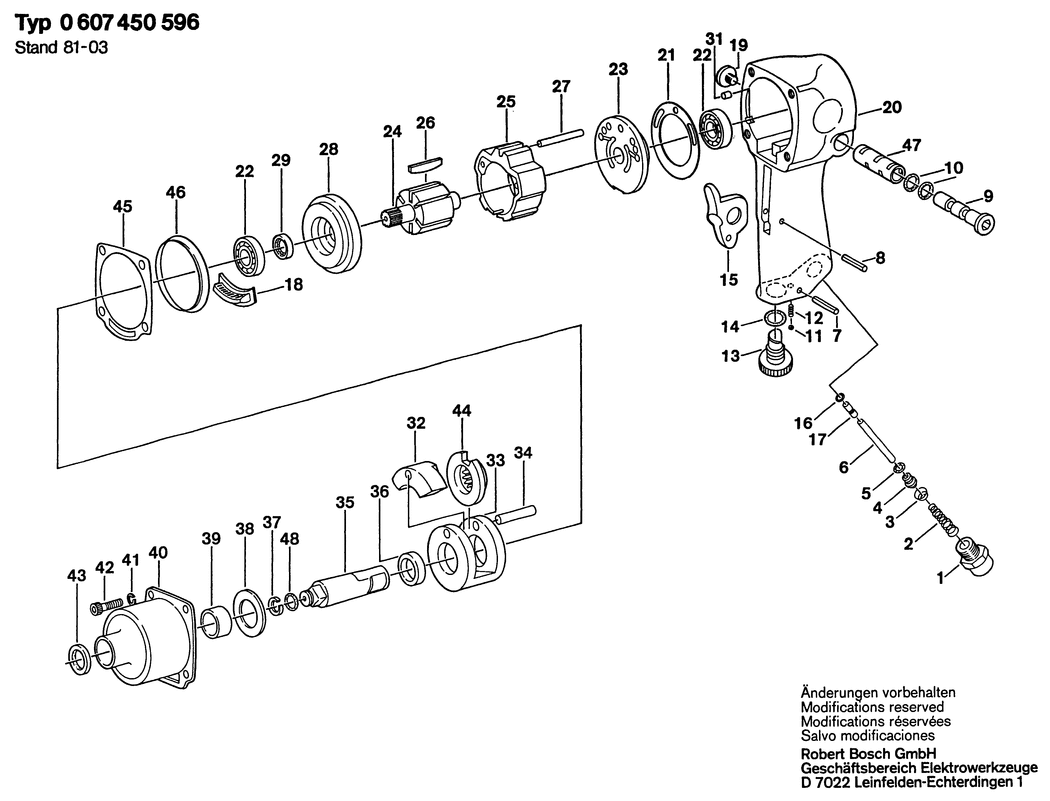

1 - FITTING
BSD-1609302000.A0
1609302000
|
-
|
|
|
2 - COMPRESSION SPRING
BSD-1609302001.A0
1609302001
|
-
|
|
|
3 - RETAINING SNAP RING
BSD-1609302002.A0
1609302002
|
-
|
|
|
4 - CONTROL VALVE
BSD-1609302003.A0
1609302003
|
-
|
|
|
5 - O-RING
BSD-1609302004.A0
1609302004
|
-
|
|
|
6 - STRAIGHT PIN
BSD-1609302005.A0
1609302005
|
-
|
|
|
7 - SLOTTED SPRING PIN
BSD-1609302006.A0
1609302006
|
-
|
|
|
8 - SLOTTED SPRING PIN
BSD-1609302007.A0
1609302007
|
-
|
|
|
9 - VALVE PISTON
BSD-1609302008.A0
1609302008
|
-
|
|
|
10 - O-RING
BSD-1609302009.A0
1609302009
|
-
|
|
|
11 - BALL
BSD-1609302010.A0
1609302010
|
-
|
|
|
12 - COMPRESSION SPRING
BSD-1609302011.A0
1609302011
|
-
|
|
|
13 - ROTARY KNOB
BSD-1609302012.A0
1609302012
|
-
|
|
|
14 - O-RING
BSD-1609302013.A0
1609302013
|
-
|
|
|
15 - CONTROL LEVER
BSD-1609302014.A0
1609302014
|
-
|
|
|
16 - NAMEPLATE
BSD-1609302015.A0
1609302015
|
-
|
|
|
17 - PRESSURE SPINDLE
BSD-1609302016.A0
1609302016
|
-
|
|
|
18 - SILENCER
BSD-1609302017.A0
1609302017
|
-
|
|
|
19 - ROUND-HEAD BOLT
BSD-1609302018.A0
1609302018
|
-
|
|
|
20 - MOTOR HOUSING
BSD-1609302019.A0
1609302019
|
-
|
|
|
21 - SEALING DISK
BSD-1609302020.A0
1609302020
|
-
|
|
|
22 - GROOVE BALL BEARING 6001 Y DIN 625 FD150
BSD-1900900271.A13
1900900271
|
-
|
|
|
23 - BEARING FLANGE
BSD-1609302021.A0
1609302021
|
-
|
|
|
24 - ROTOR
BSD-1609302022.A0
1609302022
|
-
|
|
|
25 - STATOR
BSD-1609302023.A0
1609302023
|
-
|
|
|
26 - ROTOR LAMELLA
BSD-1609302024.A0
1609302024
|
-
|
|
|
27 - STRAIGHT PIN
BSD-1609302025.A0
1609302025
|
-
|
|
|
28 - BEARING FLANGE
BSD-1609302026.A0
1609302026
|
-
|
|
|
29 - SEAL RING
BSD-1609302027.A0
1609302027
|
-
|
|
|
31 - STRAIGHT PIN
BSD-1609302028.A0
1609302028
|
-
|
|
|
32 - STRIKER
BSD-1609302029.A0
1609302029
|
-
|
|
|
33 - STRIKER HOLDER
BSD-1609302030.A0
1609302030
|
-
|
|
|
34 - STRAIGHT PIN
BSD-1609302031.A0
1609302031
|
-
|
|
|
35 - STRIKER SPINDLE
BSD-1609302032.A0
1609302032
|
-
|
|
|
36 - SPACER RING
BSD-1609302033.A0
1609302033
|
-
|
|
|
37 - RETAINING RING
BSD-1609302034.A0
1609302034
|
-
|
|
|
38 - SHIM WASHER
BSD-1609302035.A0
1609302035
|
-
|
|
|
39 - BUSHING
BSD-1609302036.A0
1609302036
|
-
|
|
|
40 - IMPACT MECHANISM HOUSING
BSD-1609302037.A0
1609302037
|
-
|
|
|
41 - SPRING LOCK WASHER
BSD-1609302038.A0
1609302038
|
-
|
|
|
42 - HEX SOCKET HEAD CAP SCREW
BSD-1609302039.A0
1609302039
|
-
|
|
|
43 - SEALING DISK
BSD-1609302040.A0
1609302040
|
-
|
|
|
44 - CARRIER
BSD-1609302041.A0
1609302041
|
-
|
|
|
45 - SEALING PLATE
BSD-1609302042.A0
1609302042
|
-
|
|
|
46 - SPACER RING
BSD-1609302043.A0
1609302043
|
-
|
|
|
47 - VALVE BUSHING
BSD-1609302044.A0
1609302044
|
-
|
|
|
48 - O-RING
BSD-1609302045.A0
1609302045
|
-
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A331
3601119236
|
£3.72
|
£4.47
|
|
206 - COMPRESSION SPRING
BSD-3609202B92.A2
3609202B92
|
£1.75
|
£2.10
|
|
207 - BALL
BSD-3603230016.A2
3603230016
|
£1.75
|
£2.10
|
|
