Bosch 400 WATT-SERIE / 0607661102 / --- Spare Parts

Home Details Reviews Delivery

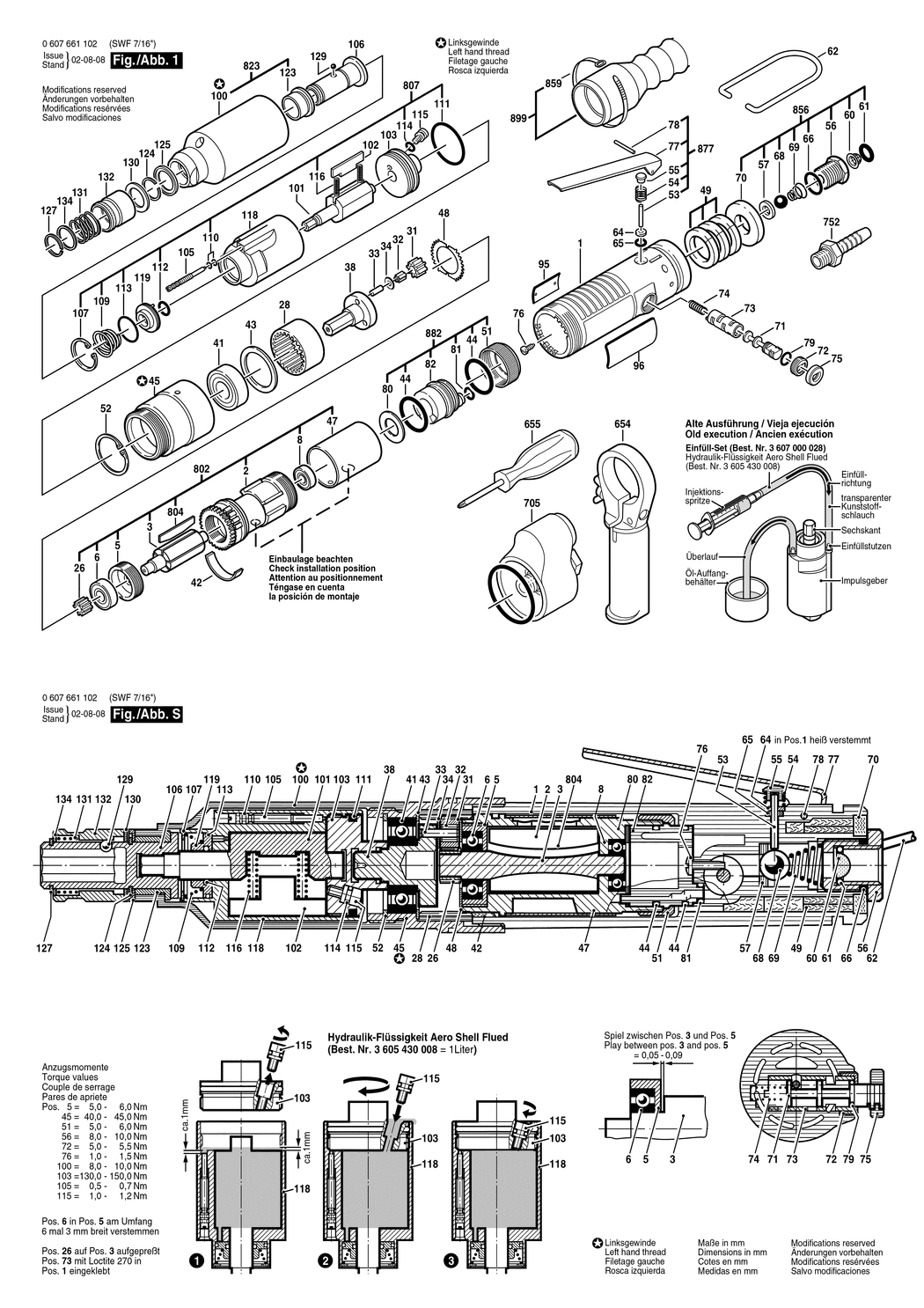

An exploded drawing and listing for the Bosch 400 WATT-SERIE / 0607661102 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108072.A6 3605108072	£31.64	£37.97
2 - STATOR 320-400W BSD-3604090044.A25 3604090044	£85.90	£103.08
3 - ROTOR BSD-3604220060.A14 3604220060	£66.68	£80.01
5 - BEARING FLANGE BSD-3605700076.A54 3605700076	£50.80	£60.96
6 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A93 2600905039	£12.64	£15.17
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A19 1900905028	£33.74	£40.49
26 - CYLINDRICAL GEAR Z=15 BSD-3606316063.A16 3606316063	£39.13	£46.96
28 - RING GEAR Z=42 BSD-3606334055.A12 3606334055	£22.60	£27.12
31 - CYLINDRICAL GEAR Z=15 BSD-3606316059.A4 3606316059	-
32 - NEEDLE-ROLLER CAGE BSD-3600913006.A67 3600913006	£7.72	£9.27
33 - NEEDLE ROLLER BSD-3603201047.A52 3603201047	£1.84	£2.21
34 - SHIM 0.20 MM BSD-2600100586.A3 2600100586	£1.84	£2.21
38 - PLANETARY-GEAR CARRIER BSD-3606337138.A3 3606337138	£72.18	£86.62
41 - GROOVE BALL BEARING 15x35x11 BSD-1900905234.A4 1900905234	£33.22	£39.87
42 - NON-WOVEN FABRIC BSD-3601010028.A14 3601010028	-
43 - STOP DISC BSD-3600102021.A6 3600102021	£3.72	£4.47
44 - O-RING 26.0x1.5 MM BSD-2600210018.A3 2600210018	£3.72	£4.47
45 - GEAR HOUSING BSD-3605125043.A2 3605125043	£57.14	£68.57
47 - SPIGOT BSD-3600700032.A10 3600700032	£21.68	£26.01
48 - RETAINING WASHER BSD-3600101036.A56 3600101036	£4.26	£5.11
49 - SILENCER BSD-3601010006.A88 3601010006	£1.84	£2.21
51 - UNION NUT BSD-3603313001.A10 3603313001	£15.65	£18.78
52 - SPRING RETAINING RING BSD-3600118008.A4 3600118008	£1.84	£2.21
53 - NEEDLE ROLLER BSD-3603201050.A20 3603201050	£1.75	£2.10
54 - COMPRESSION SPRING BSD-3604611006.A52 3604611006	£2.27	£2.72
55 - VALVE CONE BSD-3603132000.A60 3603132000	£2.94	£3.53
56 - FITTING BSD-3603458008.A12 3603458008	£9.11	£10.93
57 - SEALING DISK BSD-3600206006.A2 3600206006	-
60 - STRAINER BSD-3600002000.A192 3600002000	£3.72	£4.47
61 - O-RING 10x2 MM BSD-1900210306.A211 1900210306	£1.84	£2.21
62 - SUSPENSION LOOP BSD-3604720004.A117 3604720004	£2.94	£3.53
64 - PLAIN WASHER DIN 125-A3.2-ST BSD-2916011006.A34 2916011006	£1.84	£2.21
65 - O-RING 2.4x1.9 MM BSD-2600210007.A50 2600210007	£2.27	£2.72
66 - O-RING 16x1.25 MM BSD-3600210036.A50 3600210036	£2.27	£2.72
68 - BALL DIN 5401-9.5MM-III-ST BSD-1903230528.A11 1903230528	£1.84	£2.21
69 - COMPRESSION SPRING BSD-3604616008.A2 3604616008	-
70 - SILENCER BSD-3600105002.A1 3600105002	£10.10	£12.12
71 - CONTROL PISTON BSD-3608750023.A10 3608750023	£47.95	£57.54
72 - THREADED RING BSD-3603344023.A2 3603344023	£33.22	£39.87
73 - VALVE BUSHING BSD-3600340005.A8 3600340005	£57.14	£68.57
74 - COMPRESSION SPRING BSD-3604611006.A51 3604611006	£2.27	£2.72
75 - RETAINING SNAP RING BSD-3600202012.A9 3600202012	£10.61	£12.73
76 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A14 2910611006	£1.84	£2.21
77 - CONTROL LEVER BSD-3601902001.A86 3601902001	£6.52	£7.83
78 - GROOVED PIN DIN 1475-2x18-ST BSD-2917700040.A5 2917700040	£2.80	£3.36
79 - O-RING 9.0x1.2 MM BSD-3600210038.A36 3600210038	£2.61	£3.13
80 - SEALING PLATE BSD-3600054004.A22 3600054004	£6.52	£7.83
81 - O-RING 8.0x1.5 MM BSD-1900210103.A7 1900210103	£2.94	£3.53
82 - INTERMEDIATE PIECE BSD-3608750027.A8 3608750027	£15.65	£18.78
95 - NAMEPLATE BSD-160111A3HF.A152 160111A3HF	£3.91	£4.69
96 - MANUFACTURER'S NAMEPLATE BSD-3601110039.A8 3601110039	£5.57	£6.68
98 - SCREENING RING BSD-3600521002.A10 3600521002	£2.80	£3.36
99 - REFERENCE PLATE BSD-3601119236.A1325 3601119236	£3.91	£4.69
100 - CONTROL HOUSING BSD-3605125042.A6 3605125042	£85.90	£103.08
101 - ROTOR BSD-3604220068.A0 3604220068	£164.02	£196.83
102 - ROTOR LAMELLA BSD-3601165018.A2 3601165018	£75.79	£90.95
103 - CARRIER BSD-3606445036.A4 3606445036	£164.02	£196.83
105 - THROTTLE SCREW BSD-3603412002.A4 3603412002	£14.91	£17.89
106 - DRIVE SHAFT BSD-3606455034.A2 3606455034	£93.88	£112.65
107 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A166 2916660009	£2.16	£2.59
109 - COMPRESSION SPRING BSD-3604643015.A4 3604643015	£4.48	£5.37
110 - O-RING 2.5x1.0 MM BSD-3600210045.A3 3600210045	£2.16	£2.59
111 - O-RING 34.0x2.5 MM BSD-3600210046.A4 3600210046	£9.11	£10.93
112 - O-RING 10x2 MM BSD-1280210725.A1 1280210725	£3.91	£4.69
113 - O-RING 21.0x1.5 MM BSD-3600210060.A3 3600210060	£2.27	£2.72
114 - O-RING 4.0x1.5 MM BSD-3600210064.A4 3600210064	£2.74	£3.29
115 - SCREW PLUG BSD-3603414012.A3 3603414012	£5.57	£6.68
116 - COMPRESSION SPRING BSD-3604610029.A2 3604610029	£2.27	£2.72
118 - WORKING CYLINDER 400W BSD-3604090047.A1 3604090047	£321.98	£386.38
119 - POWER PISTON BSD-3600313009.A3 3600313009	£22.76	£27.31
123 - BUSHING BSD-3600322004.A4 3600322004	£22.76	£27.31
124 - RETAINING RING BSD-3600118007.A5 3600118007	£2.27	£2.72
125 - STOP DISC BSD-3600114011.A4 3600114011	£19.91	£23.89
127 - RETAINING RING BSD-3600224001.A35 3600224001	£3.72	£4.47
129 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A288 1903230007	£1.84	£2.21
130 - STOP DISC BSD-3600101042.A1 3600101042	£13.12	£15.75
131 - COMPRESSION SPRING BSD-3604615001.A37 3604615001	£2.74	£3.29
132 - CLAMPING SLEEVE BSD-3600311015.A3 3600311015	£31.64	£37.97
134 - PLAIN WASHER BSD-3600101055.A57 3600101055	£12.04	£14.45
654 - AUXILIARY HANDLE BSD-3602025009.A47 3602025009	£18.96	£22.75
655 - SCREWDRIVER BSD-1907959023.A7 1907959023	£4.99	£5.99
705 - AIR HOSE SET BSD-3607030024.A6 3607030024	£39.61	£47.53
752 - HOSE FITTING BSD-2603386002.A193 2603386002	£5.30	£6.36
802 - ASSEMBLY OF SERVICE PARTS BSD-3607030113.A6 3607030113	£297.68	£357.21
804 - ROTOR LAMELLA BSD-3607030030.A16 3607030030	£31.64	£37.97
807 - ASSEMBLY OF SERVICE PARTS BSD-3607030117.A7 3607030117	-
823 - ASSEMBLY OF SERVICE PARTS BSD-3607030119.A0 3607030119	£102.57	£123.08
856 - ASSEMBLY OF SERVICE PARTS BSD-3607030033.A5 3607030033	£31.64	£37.97
859 - HOLDING BELT BSD-3604710062.A35 3604710062	£1.84	£2.21
877 - CONTROL LEVER BSD-3607030032.A15 3607030032	£13.78	£16.54
882 - ASSEMBLY OF SERVICE PARTS BSD-3607030057.A8 3607030057	£28.59	£34.31
899 - AIR HOSE BSD-3607000027.A2 3607000027	£33.74	£40.49

Attribute Name	Value
Brand	Bosch
