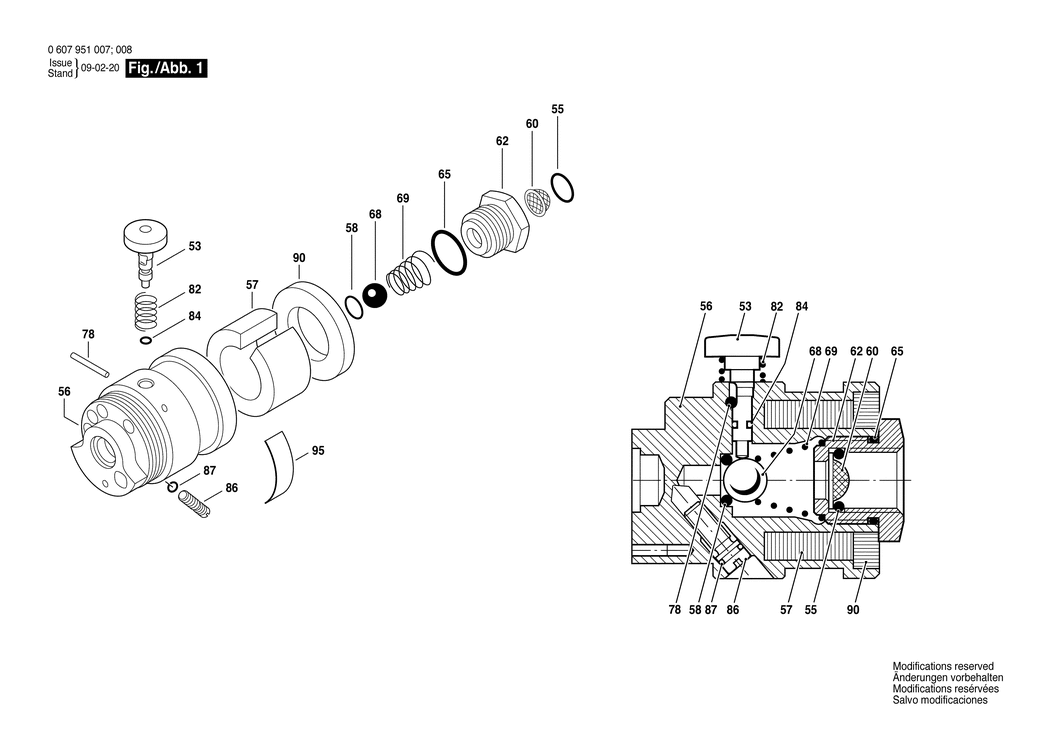

An exploded drawing and listing for the Bosch ---- / 0607951008 / ---
Ex VAT Inc VAT
53 - BOLT BSD-3604710072.A5 3604710072 £27.23 £32.68
55 - O-RING 10x2 MM BSD-1900210306.A40 1900210306 £1.75 £2.10
56 - VALVE HOUSING BSD-3605190197.A3 3605190197 -
57 - SILENCER BSD-3601010002.A25 3601010002 £2.80 £3.36
58 - O-RING 6.0x2.5 MM BSD-3600210126.A8 3600210126 £1.75 £2.10
60 - STRAINER BSD-3600002000.A19 3600002000 £3.72 £4.47
62 - FITTING BSD-3603458018.A2 3603458018 £16.41 £19.69
65 - O-RING 16x1.25 MM BSD-3600210036.A23 3600210036 £2.16 £2.59
68 - BALL DIN 5401-9.5MM-III-ST BSD-1903230528.A55 1903230528 £1.75 £2.10
69 - COMPRESSION SPRING BSD-3604616018.A16 3604616018 £1.75 £2.10
78 - GROOVED PIN DIN 1475-2x18-ST BSD-2917700040.A119 2917700040 £2.80 £3.36
82 - COMPRESSION SPRING BSD-3604643011.A8 3604643011 £6.52 £7.83
84 - O-RING 3.0x1.0 MM BSD-1600210046.A8 1600210046 £1.75 £2.10
86 - ADJUSTING SCREW BSD-3603435048.A42 3603435048 £16.41 £19.69
87 - O-RING 4.0x1.0 MM BSD-3600210015.A38 3600210015 £3.72 £4.47
90 - SILENCER BSD-3600105002.A33 3600105002 £10.10 £12.12
95 - NAMEPLATE BSD-160111A3HF.A667 160111A3HF £3.72 £4.47
