Bosch ---- / 0607958828 / --- Spare Parts

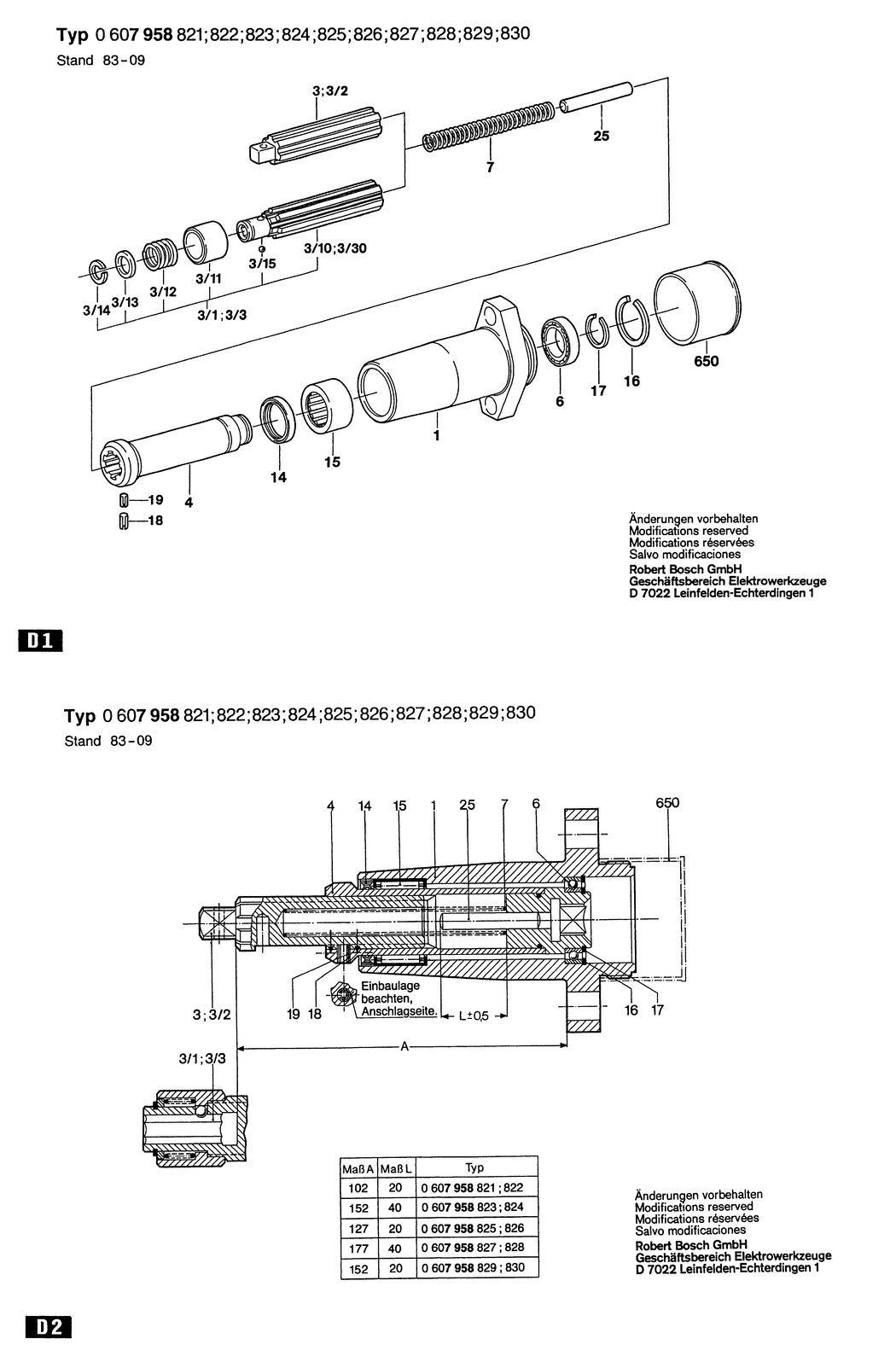

An exploded drawing and listing for the Bosch ---- / 0607958828 / ---

	Ex VAT	Inc VAT
1 - SPINDLE HOUSING BSD-3605806043.A2 3605806043	-
3 - SPLINED SHAFT BSD-3603161023.A1 3603161023	-
4 - HOLLOW SHAFT BSD-3600700012.A1 3600700012	-
6 - GROOVE BALL BEARING BSD-3600900009.A6 3600900009	-
7 - COMPRESSION SPRING BSD-3604610021.A3 3604610021	£3.72	£4.47
13 - STRAIGHT PIN DIN 6325-5m 3x14 BSD-2917550078.A8 2917550078	£1.32	£1.58
14 - RADIAL SEAL 20 X 26 X 4 BSD-3600283007.A2 3600283007	-
15 - NEEDLE BEARING BSD-1600910017.A13 1600910017	-
16 - RETAINING RING BSD-3600224014.A2 3600224014	-
17 - RETAINING RING BSD-3600118002.A5 3600118002	£2.16	£2.59
18 - SLOTTED SPRING PIN 3x5 DIN 1481 BSD-2917760073.A3 2917760073	-
19 - SLOTTED SPRING PIN 2x5 DIN 1481 BSD-2917760033.A33 2917760033	£1.75	£2.10
25 - HALF-LENGTH GROOVED PIN DIN 1474-5x50-ST BSD-2917680134.A5 2917680134	£1.75	£2.10
650 - PROTECTIVE CAP BSD-3600508006.A5 3600508006	£1.32	£1.58
700 - COMPRESSION SPRING BSD-3604610019.A3 3604610019	-
