Bosch ---- / 0607958832 / --- Spare Parts

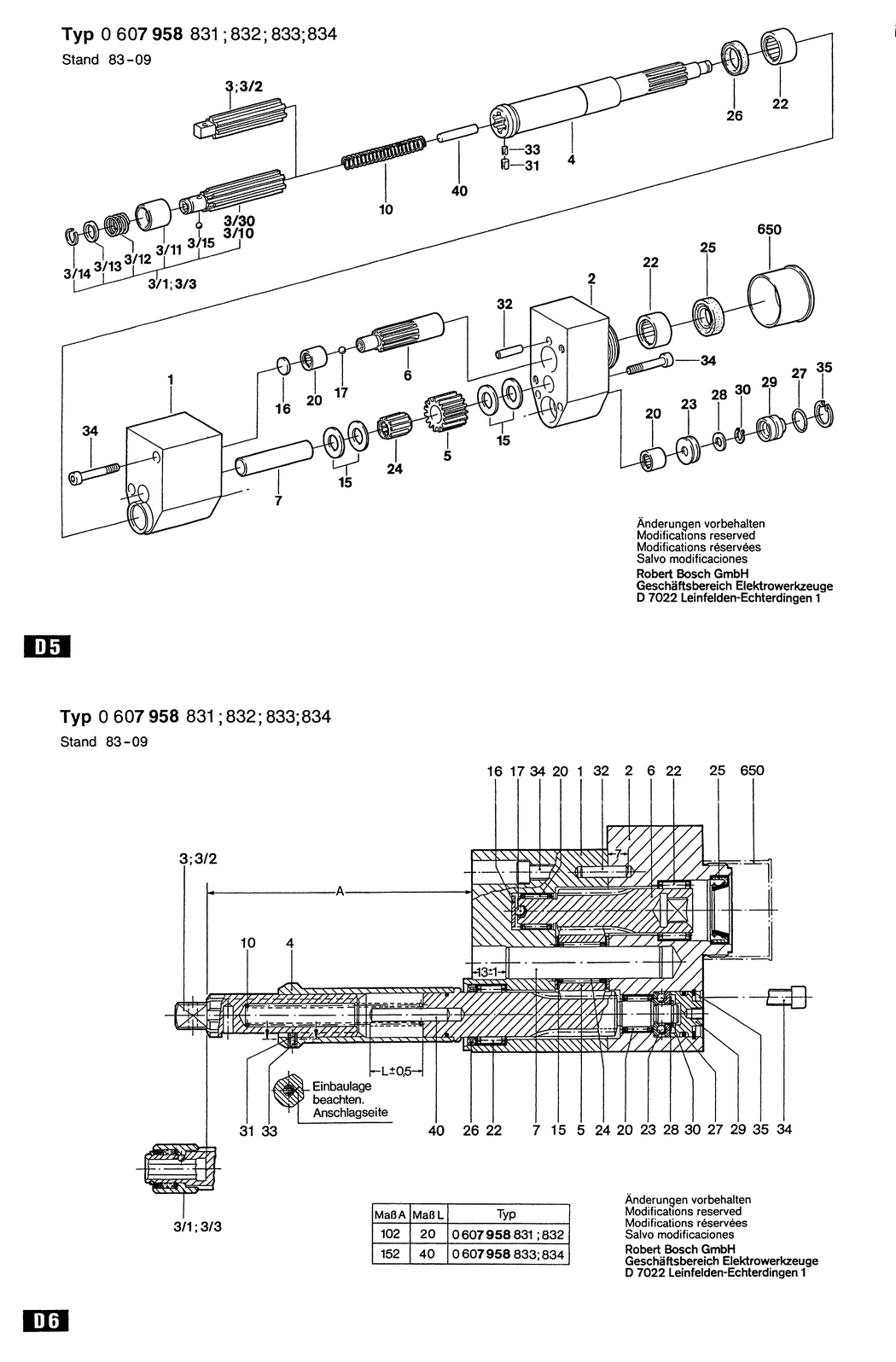

An exploded drawing and listing for the Bosch ---- / 0607958832 / ---

	Ex VAT	Inc VAT
1 - GEAR HOUSING BSD-3605106026.A7 3605106026	-
2 - GEAR HOUSING BSD-3605106025.A3 3605106025	-
3 - SPLINED SHAFT BSD-3606161020.A2 3606161020	-
4 - HOLLOW SHAFT BSD-3600700015.A1 3600700015	-
5 - CYLINDRICAL GEAR Z=18 BSD-3606316056.A7 3606316056	-
6 - TOOTHED SHAFT Z=11 BSD-3606337077.A4 3606337077	-
7 - AXLE BSD-3603000000.A8 3603000000	-
10 - COMPRESSION SPRING BSD-3604611015.A10 3604611015	-
13 - STRAIGHT PIN DIN 6325-5m 3x14 BSD-2917550078.A5 2917550078	£1.32	£1.58
15 - SHIM BSD-2600101601.A23 2600101601	£1.75	£2.10
16 - FRICTION WASHER BSD-3600000001.A7 3600000001	-
17 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A625 1903230007	£1.75	£2.10
20 - NEEDLE BEARING BSD-3600917000.A7 3600917000	-
22 - NEEDLE BEARING BSD-3600917001.A4 3600917001	-
23 - D-GROOVE BALL THR BEARING BSD-3600929000.A7 3600929000	-
24 - NEEDLE-ROLLER ASSEMBLY BSD-3600913002.A6 3600913002	-
26 - RADIAL SEAL 17 X 23 X 3 BSD-3600283006.A4 3600283006	-
27 - O-RING 13.0x2.0 MM BSD-3600210011.A3 3600210011	-
28 - SHIM 0.5 MM BSD-1600100631.A63 1600100631	£1.75	£2.10
29 - SCREW PLUG BSD-3603345001.A8 3603345001	-
30 - SPRING RETAINING RING DIN 471-7x0.8-FST BSD-2916640004.A28 2916640004	£1.75	£2.10
32 - STRAIGHT PIN 4 H 8x16 DIN 7 BSD-2917500097.A5 2917500097	-
34 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x45-8.8 BSD-2910141172.A65 2910141172	£1.75	£2.10
35 - SPRING RETAINING RING 17x1MM. DIN 472 BSD-2916660035.A6 2916660035	-
40 - HALF-LENGTH GROOVED PIN DIN 1474-5x30-ST BSD-2917680128.A4 2917680128	-
650 - PROTECTIVE CAP BSD-3600508006.A9 3600508006	£1.32	£1.58
700 - COMPRESSION SPRING BSD-3604610020.A8 3604610020	-

Attribute Name	Value
Brand	Bosch
