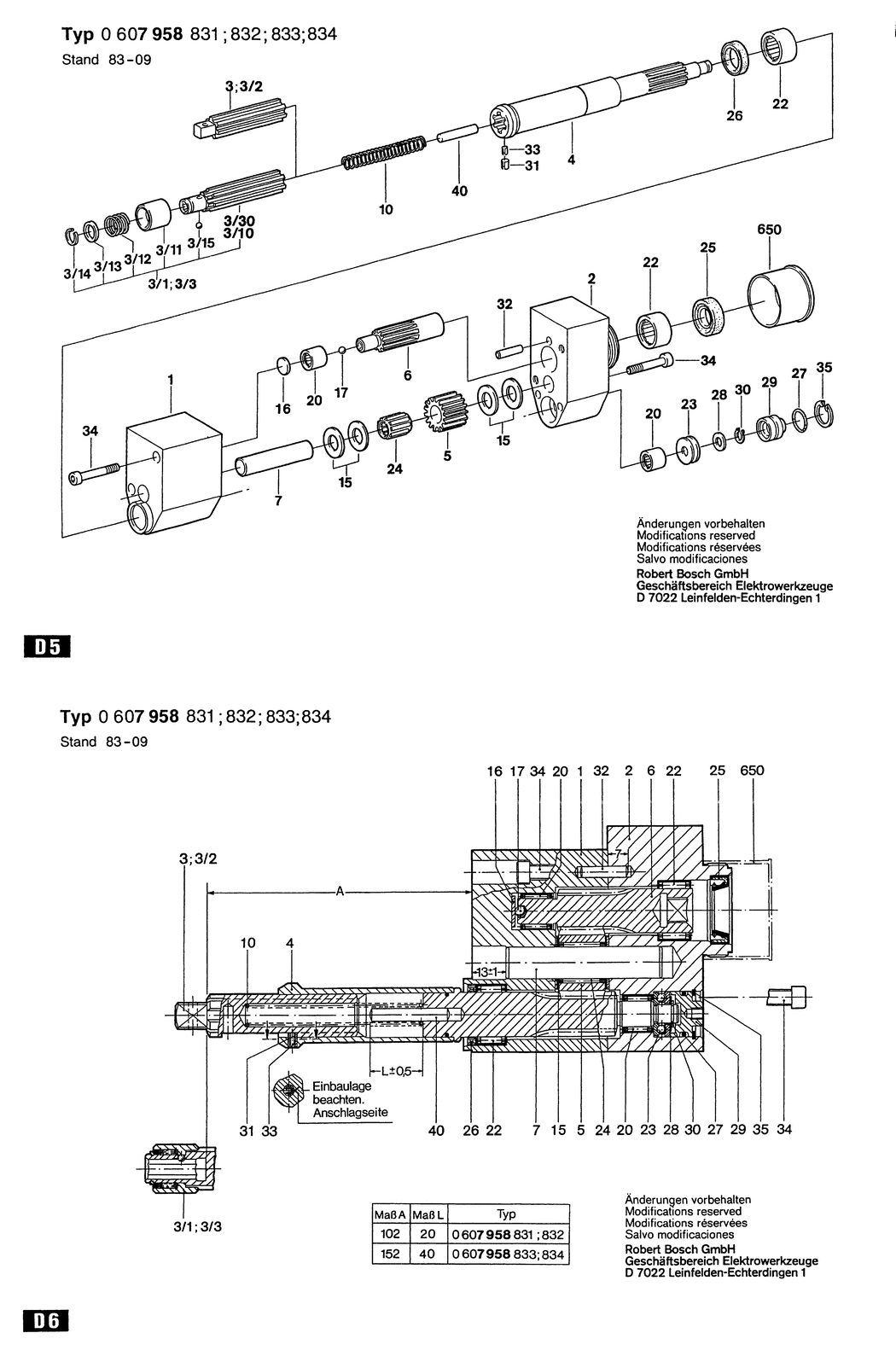

1 - GEAR HOUSING
BSD-3605106026.A5
3605106026
|
-
|
|
|
|
2 - GEAR HOUSING
BSD-3605106025.A5
3605106025
|
-
|
|
|
|
3 - SPLINED SHAFT
BSD-3603161023.A2
3603161023
|
-
|
|
|
|
4 - HOLLOW SHAFT
BSD-3600700019.A0
3600700019
|
-
|
|
|
|
5 - CYLINDRICAL GEAR Z=18
BSD-3606316056.A4
3606316056
|
-
|
|
|
|
6 - TOOTHED SHAFT Z=11
BSD-3606337077.A7
3606337077
|
-
|
|
|
|
7 - AXLE
BSD-3603000000.A9
3603000000
|
-
|
|
|
|
10 - COMPRESSION SPRING
BSD-3604610021.A7
3604610021
|
£3.72
|
£4.47
|
|
|
13 - STRAIGHT PIN DIN 6325-5m 3x14
BSD-2917550078.A13
2917550078
|
£1.32
|
£1.58
|
|
|
15 - SHIM
BSD-2600101601.A19
2600101601
|
£1.75
|
£2.10
|
|
|
16 - FRICTION WASHER
BSD-3600000001.A8
3600000001
|
-
|
|
|
|
17 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A629
1903230007
|
£1.75
|
£2.10
|
|
|
20 - NEEDLE BEARING
BSD-3600917000.A6
3600917000
|
-
|
|
|
|
22 - NEEDLE BEARING
BSD-3600917001.A5
3600917001
|
-
|
|
|
|
23 - D-GROOVE BALL THR BEARING
BSD-3600929000.A6
3600929000
|
-
|
|
|
|
24 - NEEDLE-ROLLER ASSEMBLY
BSD-3600913002.A8
3600913002
|
-
|
|
|
|
26 - RADIAL SEAL 17 X 23 X 3
BSD-3600283006.A5
3600283006
|
-
|
|
|
|
27 - O-RING 13.0x2.0 MM
BSD-3600210011.A9
3600210011
|
-
|
|
|
|
28 - SHIM 0.5 MM
BSD-1600100631.A65
1600100631
|
£1.75
|
£2.10
|
|
|
29 - SCREW PLUG
BSD-3603345001.A3
3603345001
|
-
|
|
|
|
30 - SPRING RETAINING RING DIN 471-7x0.8-FST
BSD-2916640004.A23
2916640004
|
£1.75
|
£2.10
|
|
|
32 - STRAIGHT PIN 4 H 8x16 DIN 7
BSD-2917500097.A0
2917500097
|
-
|
|
|
|
34 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x45-8.8
BSD-2910141172.A70
2910141172
|
£1.75
|
£2.10
|
|
|
35 - SPRING RETAINING RING 17x1MM. DIN 472
BSD-2916660035.A11
2916660035
|
-
|
|
|
|
40 - HALF-LENGTH GROOVED PIN DIN 1474-5x50-ST
BSD-2917680134.A9
2917680134
|
£1.75
|
£2.10
|
|
|
650 - PROTECTIVE CAP
BSD-3600508006.A13
3600508006
|
£1.32
|
£1.58
|
|
|
700 - COMPRESSION SPRING
BSD-3604610019.A7
3604610019
|
-
|
|
|
