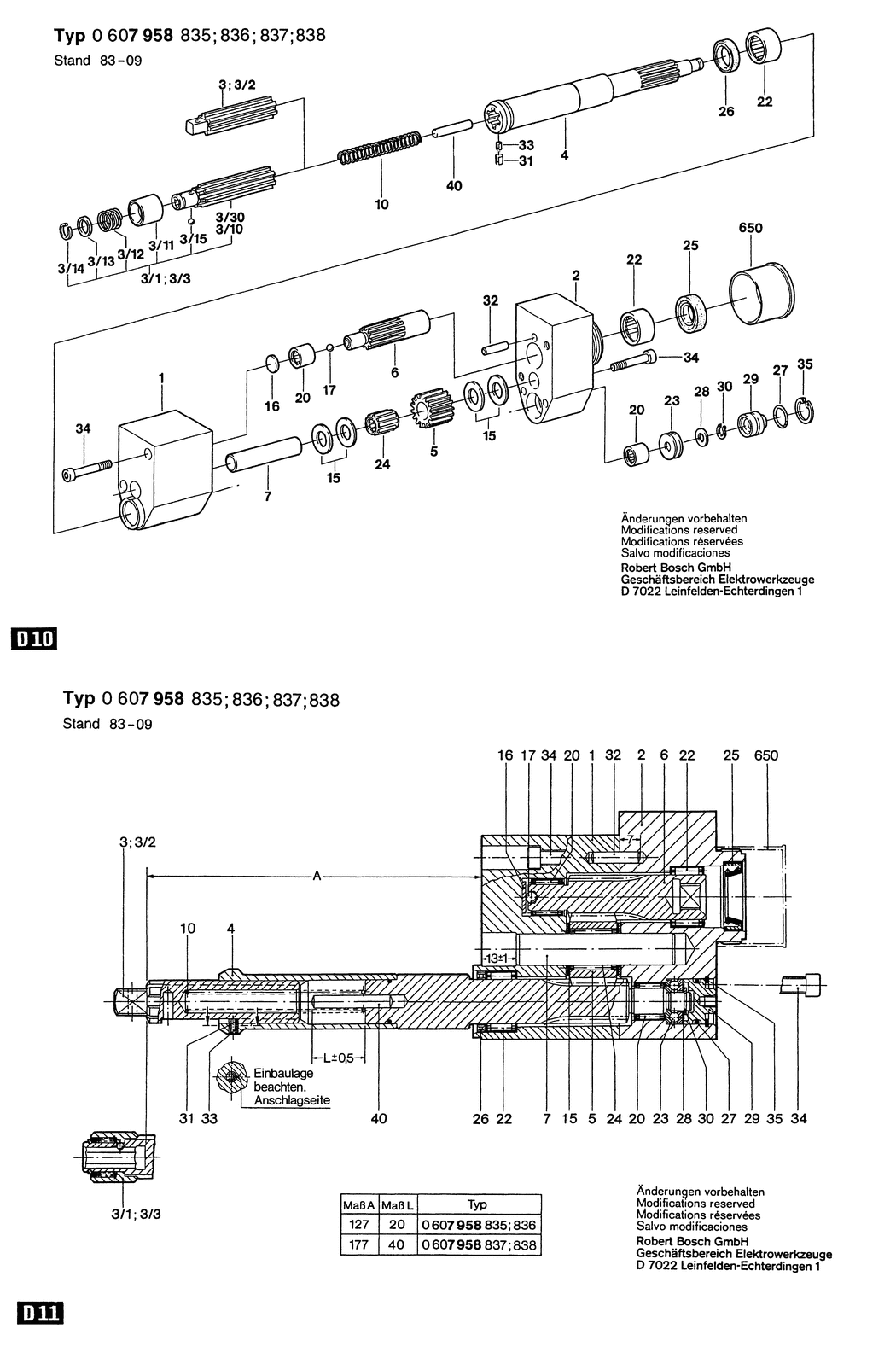

1 - GEAR HOUSING
BSD-3605106026.A2
3605106026
|
-
|
|
|
|
2 - GEAR HOUSING
BSD-3605106025.A7
3605106025
|
-
|
|
|
|
3 - SPLINED SHAFT
BSD-3603161022.A2
3603161022
|
-
|
|
|
|
3 - SPLINED SHAFT
BSD-3606161020.A4
3606161020
|
-
|
|
|
|
3 - SPLINED SHAFT
BSD-3603161021.A4
3603161021
|
-
|
|
|
|
3 - SPLINED SHAFT
BSD-3603161023.A4
3603161023
|
-
|
|
|
|
4 - HOLLOW SHAFT
BSD-3600700016.A2
3600700016
|
-
|
|
|
|
4 - HOLLOW SHAFT
BSD-3600700017.A1
3600700017
|
-
|
|
|
|
5 - CYLINDRICAL GEAR Z=18
BSD-3606316056.A5
3606316056
|
-
|
|
|
|
6 - TOOTHED SHAFT Z=11
BSD-3606337077.A6
3606337077
|
-
|
|
|
|
7 - AXLE
BSD-3603000000.A12
3603000000
|
-
|
|
|
|
10 - COMPRESSION SPRING
BSD-3604611015.A5
3604611015
|
-
|
|
|
|
10 - COMPRESSION SPRING
BSD-3604610021.A4
3604610021
|
£3.72
|
£4.47
|
|
|
13 - STRAIGHT PIN DIN 6325-5m 3x14
BSD-2917550078.A10
2917550078
|
£1.32
|
£1.58
|
|
|
15 - SHIM
BSD-2600101601.A22
2600101601
|
£1.75
|
£2.10
|
|
|
16 - FRICTION WASHER
BSD-3600000001.A11
3600000001
|
-
|
|
|
|
17 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A626
1903230007
|
£1.75
|
£2.10
|
|
|
20 - NEEDLE BEARING
BSD-3600917000.A3
3600917000
|
-
|
|
|
|
22 - NEEDLE BEARING
BSD-3600917001.A8
3600917001
|
-
|
|
|
|
23 - D-GROOVE BALL THR BEARING
BSD-3600929000.A3
3600929000
|
-
|
|
|
|
24 - NEEDLE-ROLLER ASSEMBLY
BSD-3600913002.A11
3600913002
|
-
|
|
|
|
26 - RADIAL SEAL 17 X 23 X 3
BSD-3600283006.A8
3600283006
|
-
|
|
|
|
27 - O-RING 13.0x2.0 MM
BSD-3600210011.A6
3600210011
|
-
|
|
|
|
28 - SHIM 0.5 MM
BSD-1600100631.A68
1600100631
|
£1.75
|
£2.10
|
|
|
29 - SCREW PLUG
BSD-3603345001.A6
3603345001
|
-
|
|
|
|
30 - SPRING RETAINING RING DIN 471-7x0.8-FST
BSD-2916640004.A26
2916640004
|
£1.75
|
£2.10
|
|
|
32 - STRAIGHT PIN 4 H 8x16 DIN 7
BSD-2917500097.A3
2917500097
|
-
|
|
|
|
34 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x45-8.8
BSD-2910141172.A67
2910141172
|
£1.75
|
£2.10
|
|
|
35 - SPRING RETAINING RING 17x1MM. DIN 472
BSD-2916660035.A8
2916660035
|
-
|
|
|
|
40 - HALF-LENGTH GROOVED PIN DIN 1474-5x30-ST
BSD-2917680128.A2
2917680128
|
-
|
|
|
|
40 - HALF-LENGTH GROOVED PIN DIN 1474-5x50-ST
BSD-2917680134.A6
2917680134
|
£1.75
|
£2.10
|
|
|
650 - PROTECTIVE CAP
BSD-3600508006.A10
3600508006
|
£1.32
|
£1.58
|
|
|
700 - COMPRESSION SPRING
BSD-3604610020.A5
3604610020
|
-
|
|
|
|
700 - COMPRESSION SPRING
BSD-3604610019.A4
3604610019
|
-
|
|
|
