Bosch ---- / 0607958900 / --- Spare Parts

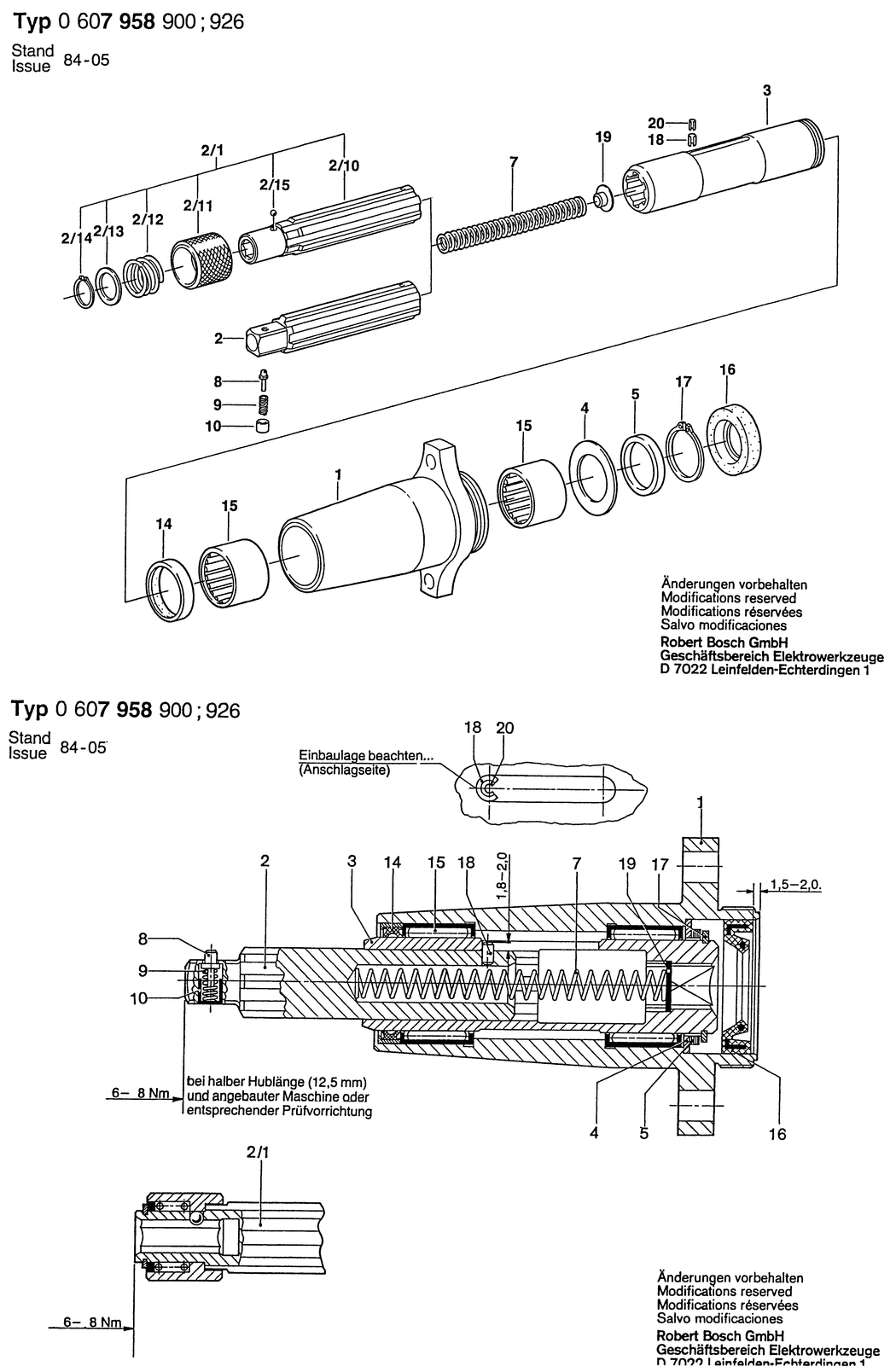

An exploded drawing and listing for the Bosch ---- / 0607958900 / ---

	Ex VAT	Inc VAT
1 - SPINDLE HOUSING BSD-3605806019.A1 3605806019	-
2/12 - CLAMPING SLEEVE BSD-3600311016.A3 3600311016	£21.52	£25.83
2/13 - COMPRESSION SPRING BSD-3604617000.A19 3604617000	£1.75	£2.10
2/14 - BACKUP RING BSD-3600202006.A29 3600202006	£2.80	£3.36
2/15 - RETAINING RING BSD-3600224006.A165 3600224006	£2.80	£3.36
2/16 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A310 1903230004	£2.16	£2.59
3 - HOLLOW SHAFT BSD-3600700000.A0 3600700000	-
4 - RETAINING WASHER BSD-3600102002.A0 3600102002	-
5 - SUPPORT DISC BSD-3600102001.A1 3600102001	-
7 - COMPRESSION SPRING BSD-3604610017.A2 3604610017	-
8 - PRESSURE SPINDLE BSD-1603124060.A1 1603124060	£5.58	£6.70
9 - COMPRESSION SPRING BSD-1604611004.A0 1604611004	£2.80	£3.36
10 - GUIDE SLEEVE BSD-3600320016.A69 3600320016	£14.91	£17.89
14 - RADIAL SEAL 20 X 26 X 4 BSD-3600283007.A4 3600283007	-
15 - NEEDLE BEARING BSD-1600910017.A5 1600910017	-
16 - RADIAL SEAL BSD-3600283005.A0 3600283005	-
17 - SPRING RETAINING RING DIN 471 20x1.2 BSD-2916650011.A80 2916650011	£2.16	£2.59
18 - SLOTTED SPRING PIN 2.5x5 DIN 1481 BSD-2917760053.A0 2917760053	-
19 - CENTERING PIECE BSD-3603203011.A0 3603203011	-
20 - COILED SPRING PIN DIN 1481-1.5x5 BSD-2917760013.A3 2917760013	-
700 - COMPRESSION SPRING BSD-3604610010.A0 3604610010	-
801 - SPLINED SHAFT BSD-3603161018.A0 3603161018	-
