Bosch ---- / 0607958905 / --- Spare Parts

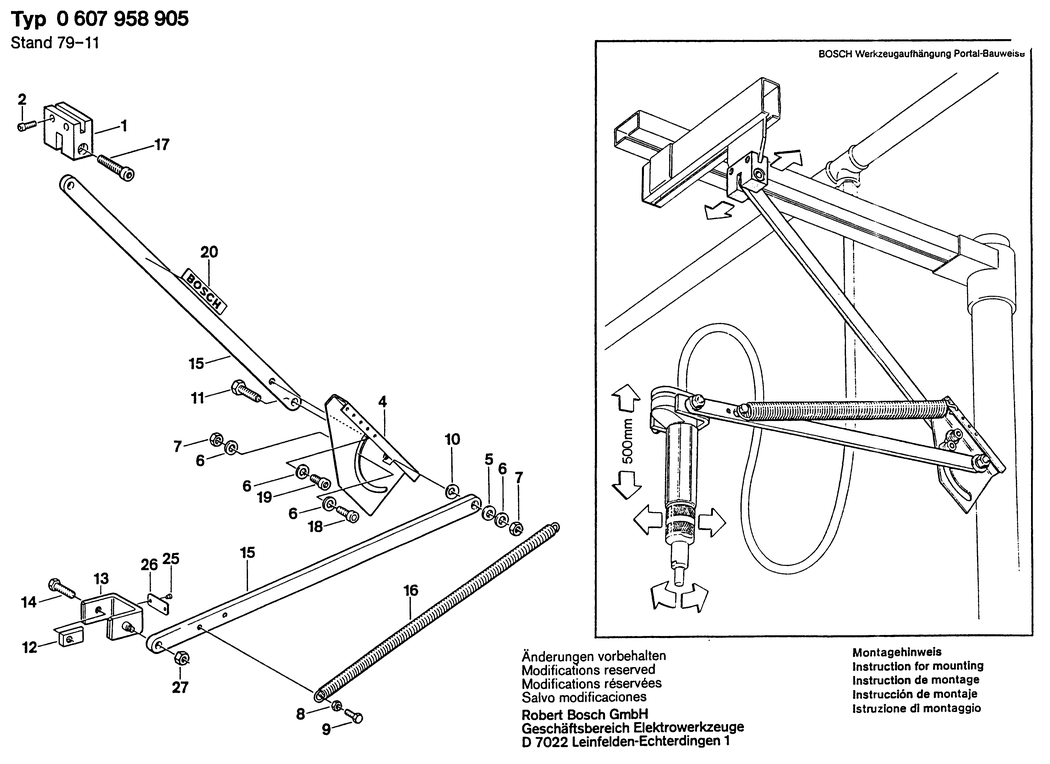

An exploded drawing and listing for the Bosch ---- / 0607958905 / ---

	Ex VAT	Inc VAT
1 - FASTENING PART BSD-3602309000.A0 3602309000	-
2 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8 BSD-2910145164.A0 2910145164	-
4 - STOP BRACKET BSD-3601334000.A0 3601334000	-
5 - PLAIN WASHER BSD-3600101011.A0 3600101011	-
6 - PLAIN WASHER 8.4 DIN 433-ST BSD-2916011015.A16 2916011015	£1.75	£2.10
7 - HEX NUT DIN 934-M8-8-A BSD-2915012009.A0 2915012009	-
8 - HEX NUT DIN 934-M6-M8 BSD-2915012007.A0 2915012007	-
9 - HEX SCREW DIN 933-M6x20-5.6 BSD-2911052201.A0 2911052201	-
10 - DISC SPRING A 6 DIN 137-ST BSD-2916169007.A0 2916169007	-
11 - HEX SCREW BSD-3603453000.A0 3603453000	-
12 - THRUST MEMBER BSD-3601030001.A0 3601030001	-
13 - MOUNTING BRACKET BSD-3602317000.A0 3602317000	-
14 - HEX SCREW DIN 561-AM 8x35-5.8 BSD-2911355248.A0 2911355248	-
15 - SWIVELLING LEVER BSD-3601921000.A0 3601921000	-
17 - PARTS SET BSD-1617000125.A0 1617000125	-
18 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x16-10.9 BSD-2910152238.A0 2910152238	-
19 - HEX SOCKET HEAD CAP SCREW DIN 912-M 8x12-10.9 BSD-2910152234.A0 2910152234	-
20 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A528 1601110481	£2.16	£2.59
25 - GROOVED NAIL BSD-3603133000.A611 3603133000	£2.61	£3.13
26 - NAMEPLATE BSD-160111A3HF.A445 160111A3HF	£3.72	£4.47
27 - HEX NUT BSD-3603314000.A0 3603314000	-

Attribute Name	Value
Brand	Bosch
