Bosch ---- / 0607950924 / --- Spare Parts

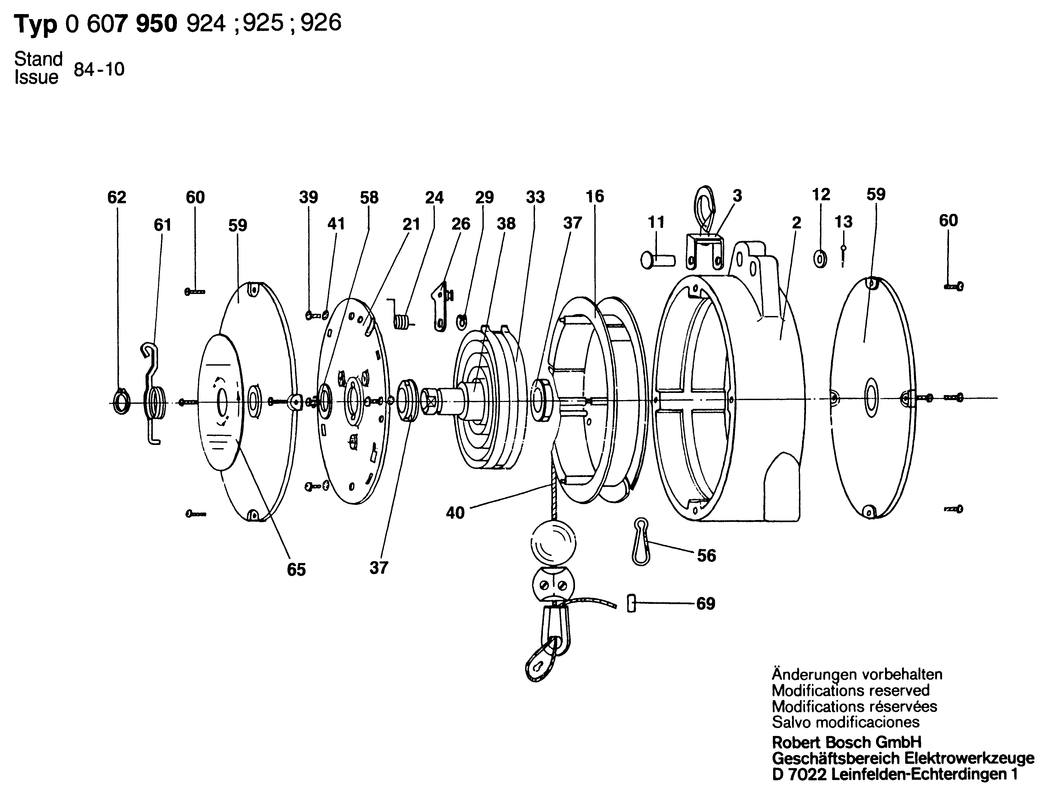

An exploded drawing and listing for the Bosch ---- / 0607950924 / ---

	Ex VAT	Inc VAT
2 - HOUSING BSD-3609200442.A2 3609200442	£63.50	£76.20
3 - HOOK BSD-3609200385.A0 3609200385	£61.98	£74.38
11 - PIVOT PIN BSD-3609200345.A5 3609200345	£5.87	£7.04
12 - PLAIN WASHER DIN 125-A 8.4-ST BSD-2916011016.A88 2916011016	£1.75	£2.10
13 - SPLIT PIN 2x14 DIN 94-ST BSD-1904681191.A0 1904681191	-
16 - ROPE DRUM BSD-3609200402.A2 3609200402	-
21 - COVER PLATE BSD-3609200401.A0 3609200401	-
24 - COILED SPRING BSD-3609200346.A0 3609200346	£2.80	£3.36
26 - LOCKING LEVER BSD-3609200382.A1 3609200382	-
29 - SPRING RETAINING RING DIN 471-6x0.7-FSt BSD-2916640003.A56 2916640003	-
33 - SPIRAL SPRING BSD-3609200404.A0 3609200404	£102.57	£123.08
37 - SPACER BUSHING BSD-3609200347.A2 3609200347	£5.01	£6.01
38 - AXLE BSD-3609200407.A2 3609200407	-
39 - OVAL-HEAD SCREW DIN 7985-M4X8-4.8 BSD-2910641118.A1 2910641118	-
40 - CABLE CONTROL BSD-3609200384.A4 3609200384	£93.88	£112.65
41 - TOOTHED LOCK WASHER DIN 6797-A4.3-FST BSD-2916030006.A43 2916030006	£1.75	£2.10
56 - SPRING HOOK BSD-3609200477.A3 3609200477	£21.52	£25.83
58 - PLAIN WASHER BSD-3609200348.A0 3609200348	-
59 - HOUSING COVER BSD-3609200441.A4 3609200441	-
60 - OVAL-HEAD SCREW BSD-3609200349.A5 3609200349	-
61 - BRAKE SPRING BSD-3609200403.A0 3609200403	-
62 - SPRING RETAINING RING DIN 471 16x1MM BSD-2916650007.A8 2916650007	-
65 - NAMEPLATE BSD-3609200446.A0 3609200446	-
69 - CLAMPING PIECE BSD-3609200478.A1 3609200478	£2.80	£3.36
99 - REFERENCE PLATE BSD-3601119236.A423 3601119236	£3.72	£4.47

Attribute Name	Value
Brand	Bosch
