Bosch ---- / 0607950933 / --- Spare Parts

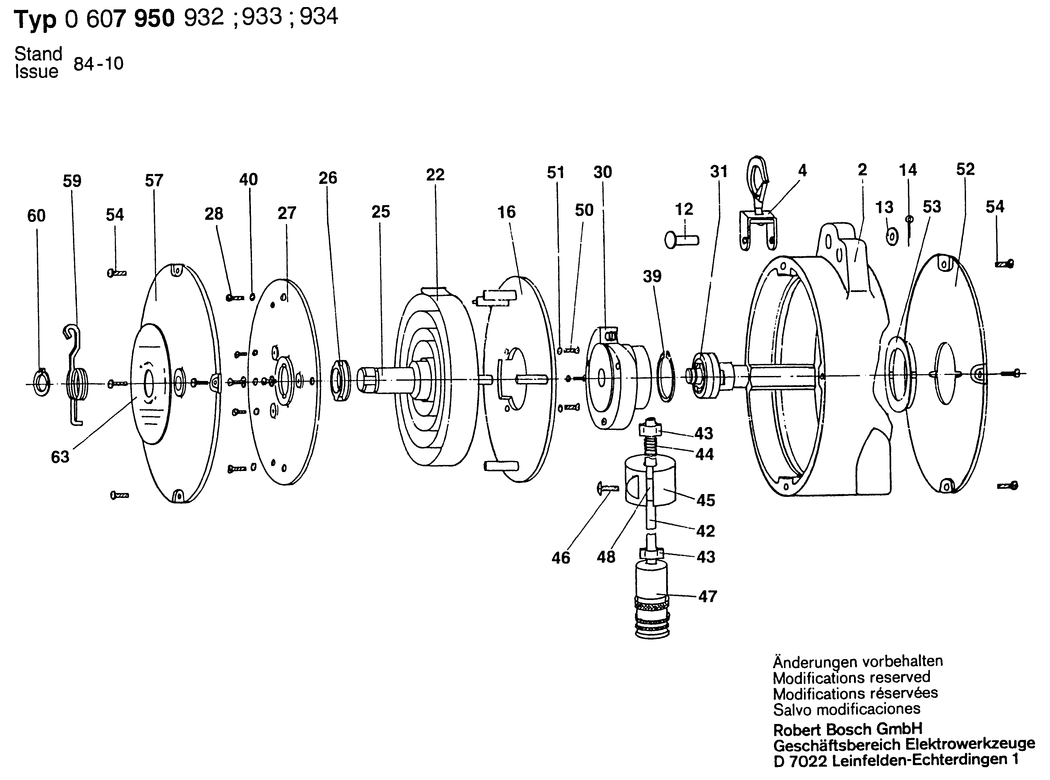

An exploded drawing and listing for the Bosch ---- / 0607950933 / ---

	Ex VAT	Inc VAT
2 - HOUSING BSD-3609200442.A5 3609200442	£63.50	£76.20
4 - HOOK BSD-3609200385.A4 3609200385	£61.98	£74.38
12 - PIVOT PIN BSD-3609200345.A1 3609200345	£5.87	£7.04
13 - PLAIN WASHER DIN 125-A 8.4-ST BSD-2916011016.A87 2916011016	£1.75	£2.10
14 - SPLIT PIN 2x14 DIN 94-ST BSD-1904681191.A3 1904681191	-
16 - ROPE DRUM BSD-3609200425.A2 3609200425	-
22 - SPIRAL SPRING BSD-3609200427.A0 3609200427	-
25 - AXLE BSD-3609200429.A1 3609200429	-
26 - SPACER BUSHING BSD-3609200340.A1 3609200340	-
27 - COVER PLATE BSD-3609200430.A1 3609200430	-
28 - OVAL-HEAD SCREW DIN 966-M4x10-4.8 BSD-2910890120.A0 2910890120	-
30 - BEARING FLANGE BSD-3609200393.A2 3609200393	-
31 - O-RING BSD-3609200381.A2 3609200381	-
39 - SPRING RETAINING RING DIN 472-28x1.2 MM BSD-2916660011.A152 2916660011	£1.75	£2.10
40 - TOOTHED LOCK WASHER DIN 6797-V4.3-FSt BSD-2916050005.A2 2916050005	-
42 - AIR HOSE BSD-3609200481.A2 3609200481	-
43 - HOSE CLAMPER BSD-3609200482.A0 3609200482	-
44 - COMPRESSION SPRING BSD-3609200339.A1 3609200339	-
45 - STOP RING BSD-3609200337.A1 3609200337	-
46 - ROUND-HEAD SCREW BSD-3609200338.A1 3609200338	-
47 - HOSE COUPLING BSD-1609233008.A1 1609233008	-
48 - SPACER BUSHING BSD-3609200431.A1 3609200431	-
50 - COUNTERSUNK-HEAD SCREW DIN 963-M3x6-4.8 BSD-2910760048.A2 2910760048	-
51 - TOOTHED LOCK WASHER BSD-2916050003.A0 2916050003	-
52 - HOUSING COVER BSD-3609200433.A1 3609200433	-
53 - SPACER BUSHING BSD-3609200336.A1 3609200336	-
54 - OVAL-HEAD SCREW BSD-3609200349.A2 3609200349	-
57 - HOUSING COVER BSD-3609200441.A2 3609200441	-
59 - BRAKE SPRING BSD-3609200403.A3 3609200403	-
60 - SPRING RETAINING RING DIN 471 16x1MM BSD-2916650007.A5 2916650007	-
63 - NAMEPLATE BSD-3609200444.A0 3609200444	-
99 - REFERENCE PLATE BSD-3601119236.A439 3601119236	£3.72	£4.47
