Bosch ---- / 0607950937 / --- Spare Parts

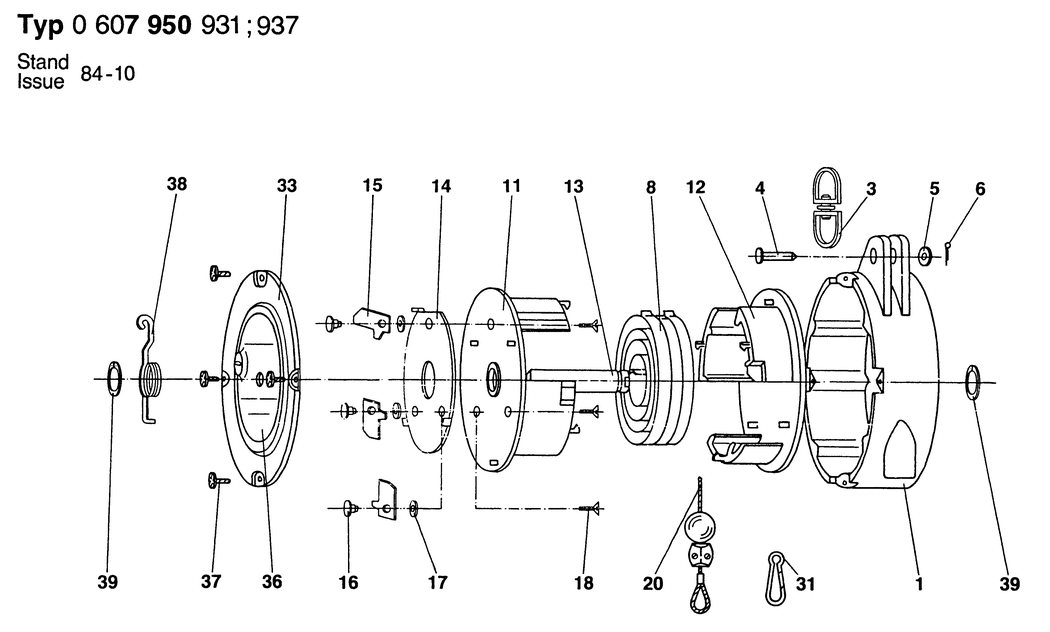

An exploded drawing and listing for the Bosch ---- / 0607950937 / ---

	Ex VAT	Inc VAT
1 - HOUSING BSD-3609200438.A5 3609200438	-
3 - CHAIN LINK BSD-3609201219.A0 3609201219	-
4 - PIVOT PIN BSD-3609200362.A5 3609200362	£8.67	£10.41
5 - PLAIN WASHER DIN 125-A6.4-A2 BSD-2918650008.A3 2918650008	-
6 - SPLIT PIN 1.6x12 DIN 94-ST BSD-1904681090.A0 1904681090	-
8 - SPIRAL SPRING BSD-3609200419.A2 3609200419	-
11 - HALF DRUM BSD-3609200465.A0 3609200465	£14.75	£17.70
12 - HALF DRUM BSD-3609200462.A5 3609200462	-
13 - AXLE BSD-3609200330.A0 3609200330	-
14 - STOP DISC BSD-3609200392.A1 3609200392	-
15 - LOCKING LEVER BSD-3609200329.A1 3609200329	-
16 - BUSHING BSD-3609200328.A0 3609200328	-
17 - PLAIN WASHER BSD-3609200327.A1 3609200327	-
18 - COUNTERSUNK-HEAD SCREW DIN 963-M4x8-4.8 BSD-2910760118.A1 2910760118	-
20 - CABLE CONTROL BSD-3609200386.A5 3609200386	-
31 - SPRING HOOK BSD-3609200479.A5 3609200479	£18.96	£22.75
33 - HOUSING COVER BSD-3609200461.A0 3609200461	-
36 - NAMEPLATE BSD-3609200459.A0 3609200459	-
37 - OVAL-HEAD SCREW BSD-3609200359.A0 3609200359	-
38 - BRAKE SPRING BSD-3609200398.A9 3609200398	£14.75	£17.70
39 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A188 2916650003	£1.75	£2.10
99 - REFERENCE PLATE BSD-3601119236.A429 3601119236	£3.72	£4.47
