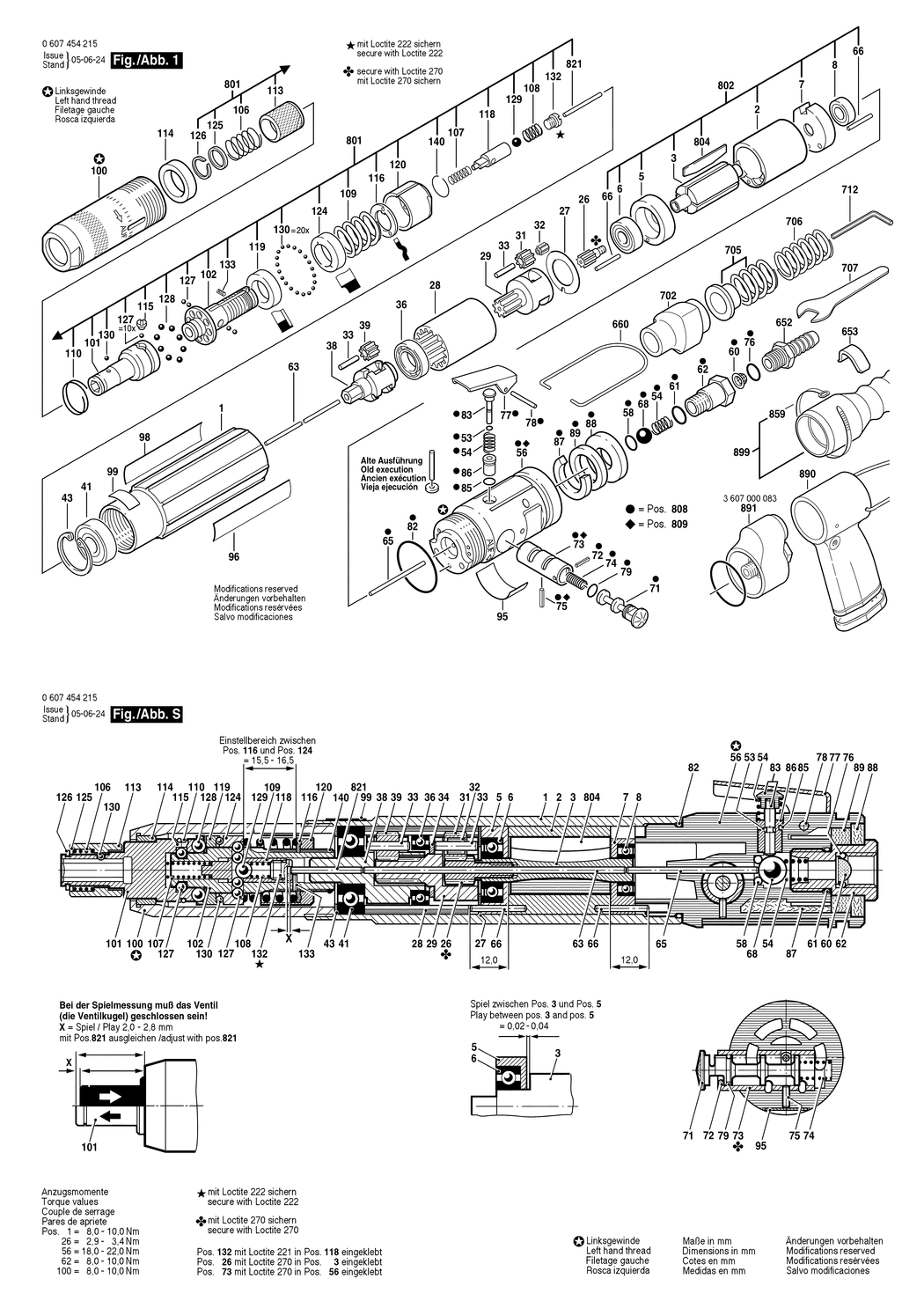

1 - MOTOR HOUSING
BSD-3600760096.A1
3600760096
|
£37.72
|
£45.27
|
|
2 - STATOR 120W
BSD-3604090058.A6
3604090058
|
£135.25
|
£162.30
|
|
3 - ROTOR
BSD-3604220087.A11
3604220087
|
£102.57
|
£123.08
|
|
5 - BEARING FLANGE
BSD-3605700111.A13
3605700111
|
£40.80
|
£48.96
|
|
6 - GROOVE BALL BEARING 7x19x6
BSD-1900905044.A127
1900905044
|
£7.36
|
£8.83
|
|
7 - BEARING FLANGE
BSD-3605700112.A11
3605700112
|
£48.38
|
£58.06
|
|
8 - GROOVE BALL BEARING 7x14x5
BSD-1900905030.A81
1900905030
|
£33.74
|
£40.49
|
|
26 - PINION
BSD-3606300180.A6
3606300180
|
£31.64
|
£37.97
|
|
27 - STOP DISC
BSD-3600101008.A24
3600101008
|
£1.75
|
£2.10
|
|
28 - RING GEAR
BSD-3606334084.A9
3606334084
|
£37.27
|
£44.72
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A163
3600913000
|
£4.26
|
£5.11
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A275
3603201000
|
£1.75
|
£2.10
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A47
3600905002
|
£16.41
|
£19.69
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337178.A6
3606337178
|
£135.25
|
£162.30
|
|
39 - CYLINDRICAL GEAR
BSD-3606316104.A25
3606316104
|
£21.68
|
£26.01
|
|
41 - GROOVE BALL BEARING
BSD-3600905023.A41
3600905023
|
£21.52
|
£25.83
|
|
43 - SPRING RETAINING RING
BSD-3600118006.A25
3600118006
|
£2.61
|
£3.13
|
|
53 - O-RING
BSD-3600210092.A35
3600210092
|
£2.16
|
£2.59
|
|
54 - COMPRESSION SPRING
BSD-3604611017.A82
3604611017
|
£2.61
|
£3.13
|
|
55 - VALVE CONE
BSD-3603132000.A28
3603132000
|
£2.80
|
£3.36
|
|
56 - VALVE HOUSING
BSD-3605190180.A0
3605190180
|
£40.80
|
£48.96
|
|
58 - O-RING 4.3x2.4 MM
BSD-3600210084.A48
3600210084
|
£2.61
|
£3.13
|
|
60 - STRAINER
BSD-3600002000.A10
3600002000
|
£3.72
|
£4.47
|
|
61 - O-RING 9.0x1.5 MM
BSD-2600210021.A94
2600210021
|
£1.75
|
£2.10
|
|
62 - FITTING
BSD-3603458016.A9
3603458016
|
£11.30
|
£13.56
|
|
63 - STRAIGHT PIN L=62 MM
BSD-3603201070.A7
3603201070
|
£5.30
|
£6.36
|
|
65 - STRAIGHT PIN
BSD-3603201026.A36
3603201026
|
£7.36
|
£8.83
|
|
66 - STRAIGHT PIN
BSD-3604710044.A6
3604710044
|
£8.67
|
£10.41
|
|
68 - BALL DIN 5401-8 MM III-ST
BSD-1903230014.A35
1903230014
|
£1.75
|
£2.10
|
|
71 - CONTROL PISTON
BSD-3608750038.A1
3608750038
|
£23.86
|
£28.63
|
|
72 - COILED SPRING PIN DIN 7343-1.5x10
BSD-2917800016.A56
2917800016
|
£1.75
|
£2.10
|
|
73 - VALVE BUSHING
BSD-3600340008.A50
3600340008
|
£45.67
|
£54.80
|
|
74 - COMPRESSION SPRING
BSD-3604611007.A7
3604611007
|
£2.16
|
£2.59
|
|
75 - STRAIGHT PIN DIN6325-2M6X6
BSD-2917550034.A53
2917550034
|
£1.75
|
£2.10
|
|
76 - O-RING
BSD-3600210094.A60
3600210094
|
£2.80
|
£3.36
|
|
77 - CONTROL LEVER
BSD-3601902007.A6
3601902007
|
£6.52
|
£7.83
|
|
78 - GROOVED PIN DIN 1475-2x18-ST
BSD-2917700040.A112
2917700040
|
£2.80
|
£3.36
|
|
79 - O-RING
BSD-3600210093.A13
3600210093
|
£1.75
|
£2.10
|
|
82 - O-RING 26.0x1.0 MM
BSD-3600210056.A21
3600210056
|
£1.75
|
£2.10
|
|
83 - CONTROL PIN
BSD-3608750048.A34
3608750048
|
£5.30
|
£6.36
|
|
85 - O-RING 4.0x1.0 MM
BSD-3600210015.A26
3600210015
|
£3.72
|
£4.47
|
|
86 - BUSHING
BSD-3600300064.A1
3600300064
|
£10.10
|
£12.12
|
|
87 - SILENCER
BSD-3601010010.A61
3601010010
|
£2.16
|
£2.59
|
|
88 - SILENCER
BSD-3601010037.A68
3601010037
|
£11.30
|
£13.56
|
|
89 - SILENCER
BSD-3601010044.A8
3601010044
|
£7.36
|
£8.83
|
|
95 - NAMEPLATE
BSD-160111A3HF.A650
160111A3HF
|
£3.72
|
£4.47
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601119055.A112
3601119055
|
£3.72
|
£4.47
|
|
98 - STICKER
BSD-3601110204.A62
3601110204
|
£1.75
|
£2.10
|
|
99 - REFERENCE PLATE
BSD-3601119236.A478
3601119236
|
£3.72
|
£4.47
|
|
100 - HOUSING
BSD-3605125052.A1
3605125052
|
-
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445035.A9
3606445035
|
£70.24
|
£84.29
|
|
102 - DRIVE SHAFT
BSD-3606122012.A18
3606122012
|
£93.88
|
£112.65
|
|
106 - COMPRESSION SPRING
BSD-3604610011.A32
3604610011
|
£2.80
|
£3.36
|
|
107 - COMPRESSION SPRING
BSD-3604610008.A33
3604610008
|
£1.75
|
£2.10
|
|
108 - COMPRESSION SPRING
BSD-3604610007.A3
3604610007
|
£1.75
|
£2.10
|
|
109 - COMPRESSION SPRING
BSD-3604619007.A8
3604619007
|
£2.80
|
£3.36
|
|
110 - RETAINING RING
BSD-3604603000.A25
3604603000
|
-
|
|
|
113 - CLAMP BUSHING
BSD-3600499023.A133
3600499023
|
£18.96
|
£22.75
|
|
114 - SINTERED-METAL BUSHING
BSD-3600301005.A0
3600301005
|
-
|
|
|
115 - SEALING PLATE
BSD-3600001003.A8
3600001003
|
-
|
|
|
116 - ADJUSTING DISC
BSD-3600134002.A25
3600134002
|
£1.75
|
£2.10
|
|
118 - LOCKING BOLT
BSD-3603150201.A12
3603150201
|
£21.68
|
£26.01
|
|
119 - SUPPORT DISC
BSD-3600114007.A27
3600114007
|
£10.10
|
£12.12
|
|
120 - ROUND NUT
BSD-3603340003.A3
3603340003
|
£23.86
|
£28.63
|
|
124 - COUPLING PLATE
BSD-3600114005.A3
3600114005
|
£7.36
|
£8.83
|
|
125 - BACKUP RING
BSD-3600202020.A77
3600202020
|
£8.67
|
£10.41
|
|
126 - RETAINING RING
BSD-3600224008.A19
3600224008
|
£2.16
|
£2.59
|
|
127 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A419
1903230004
|
£2.16
|
£2.59
|
|
128 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A781
1903230007
|
£1.75
|
£2.10
|
|
129 - BALL DIN 5401-5 G28
BSD-1903230009.A893
1903230009
|
£1.75
|
£2.10
|
|
130 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A67
1903230003
|
£2.61
|
£3.13
|
|
132 - SCREW PLUG
BSD-3603463001.A20
3603463001
|
£2.16
|
£2.59
|
|
133 - COILED SPRING PIN DIN 7343-1.5x4
BSD-2917800012.A12
2917800012
|
-
|
|
|
140 - RETAINING RING 10 DIN 9045
BSD-2916600006.A95
2916600006
|
£1.75
|
£2.10
|
|
652 - HOSE FITTING
BSD-3603386066.A49
3603386066
|
£14.91
|
£17.89
|
|
653 - ANGLE PIECE
BSD-3601329007.A169
3601329007
|
£4.26
|
£5.11
|
|
702 - HANDLE
BSD-3600499002.A20
3600499002
|
£21.68
|
£26.01
|
|
705 - CLUTCH ELEMENT
BSD-3607031085.A8
3607031085
|
-
|
|
|
706 - COMPRESSION SPRING
BSD-3604618007.A2
3604618007
|
£4.75
|
£5.70
|
|
707 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A195
2607950511
|
£4.26
|
£5.11
|
|
712 - HEXAGON-SOCKET KEY
BSD-3607950001.A78
3607950001
|
£2.80
|
£3.36
|
|
760 - SUSPENSION LOOP
BSD-2604720004.A74
2604720004
|
£4.26
|
£5.11
|
|
801 - CUTOFF COUPLING SP SET
BSD-3607031130.A9
3607031130
|
-
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031303.A6
3607031303
|
£410.78
|
£492.94
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607031305.A12
3607031305
|
£23.86
|
£28.63
|
|
808 - ASSEMBLY OF SERVICE PARTS
BSD-3607031424.A5
3607031424
|
£283.50
|
£340.20
|
|
809 - ASSEMBLY OF SERVICE PARTS
BSD-3607031421.A6
3607031421
|
£156.22
|
£187.46
|
|
821 - ASSEMBLY OF SERVICE PARTS
BSD-3607031086.A22
3607031086
|
£8.67
|
£10.41
|
|
859 - HOLDING BELT
BSD-3604710062.A110
3604710062
|
£1.75
|
£2.10
|
|
890 - AUXILIARY HANDLE
BSD-3607031352.A11
3607031352
|
£93.88
|
£112.65
|
|
891 - AIR HOSE
BSD-3607000083.A24
3607000083
|
£59.53
|
£71.44
|
|
899 - AIR HOSE
BSD-3607000064.A48
3607000064
|
£27.23
|
£32.68
|
|
