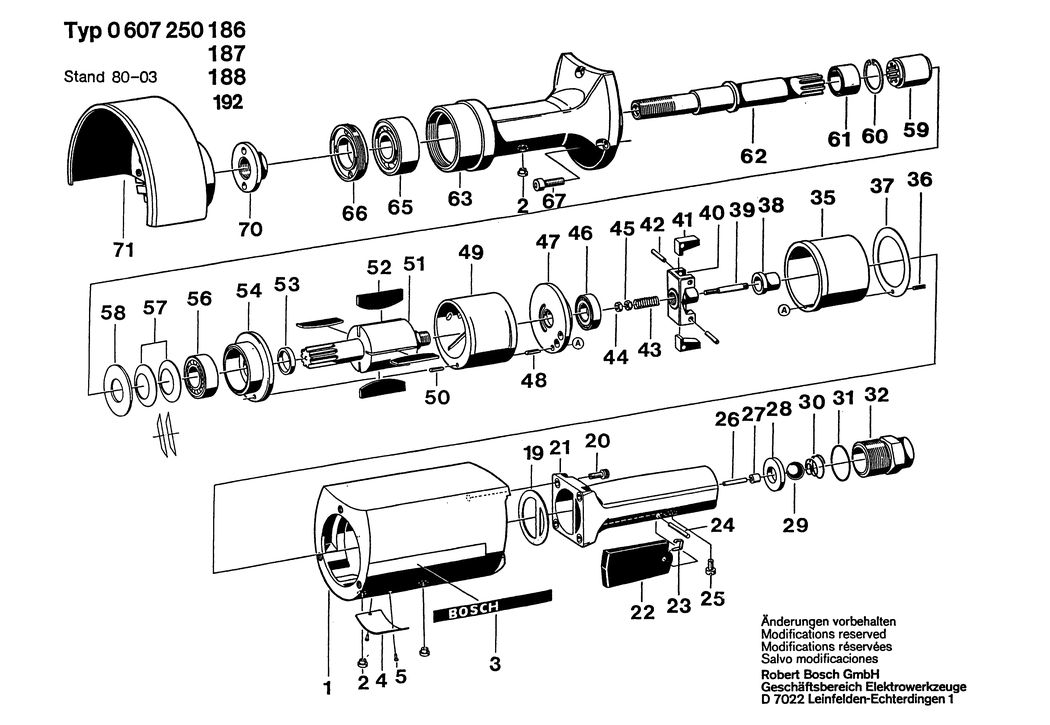

1 - MOTOR HOUSING
BSD-1609310257.A0
1609310257
|
-
|
|
|
|
2 - LUBRICATING NIPPLE
BSD-1609310104.A7
1609310104
|
-
|
|
|
|
3 - MANUFACTURER'S NAMEPLATE
BSD-1601110005.A77
1601110005
|
-
|
|
|
|
4 - NAMEPLATE
BSD-1601104577.A1
1601104577
|
-
|
|
|
|
5 - CTSK-HEAD GROOVED PIN
BSD-1609310136.A9
1609310136
|
-
|
|
|
|
19 - SEALING PLATE
BSD-1609310153.A2
1609310153
|
-
|
|
|
|
20 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8
BSD-2910141154.A13
2910141154
|
£1.75
|
£2.10
|
|
|
21 - HANDLE
BSD-1609310263.A2
1609310263
|
-
|
|
|
|
21 - THREADED BUSHING
BSD-1609310344.A2
1609310344
|
-
|
|
|
|
22 - CONTROL LEVER
BSD-1609310272.A3
1609310272
|
-
|
|
|
|
23 - STOP BRACKET
BSD-1609310267.A10
1609310267
|
-
|
|
|
|
24 - NEEDLE ROLLER
BSD-1609310021.A19
1609310021
|
-
|
|
|
|
25 - SOCKET HEAD CAP SCREW DIN 84-AM5x8-8.8
BSD-2910021150.A23
2910021150
|
-
|
|
|
|
26 - NEEDLE ROLLER
BSD-1609310021.A20
1609310021
|
-
|
|
|
|
27 - GUIDE SLEEVE
BSD-1609310083.A10
1609310083
|
-
|
|
|
|
28 - PLAIN WASHER
BSD-1609310177.A1
1609310177
|
-
|
|
|
|
29 - BALL
BSD-1609310099.A2
1609310099
|
-
|
|
|
|
30 - COMPRESSION SPRING
BSD-1609310186.A1
1609310186
|
-
|
|
|
|
31 - SEAL RING
BSD-1609310157.A4
1609310157
|
-
|
|
|
|
32 - FITTING
BSD-1609310148.A2
1609310148
|
-
|
|
|
|
35 - STOP BUSHING
BSD-1609310253.A8
1609310253
|
-
|
|
|
|
36 - SLOTTED SPRING PIN 3x8 DIN 1481
BSD-2917760075.A11
2917760075
|
-
|
|
|
|
37 - SEALING DISK
BSD-1609310151.A1
1609310151
|
-
|
|
|
|
38 - GUIDE BUSHING
BSD-1609310247.A9
1609310247
|
-
|
|
|
|
39 - STUD BOLT
BSD-1609310144.A0
1609310144
|
-
|
|
|
|
40 - REGULATOR ARMATURE
BSD-1609310245.A7
1609310245
|
-
|
|
|
|
41 - FLYWEIGHT
BSD-1609310250.A6
1609310250
|
-
|
|
|
|
42 - NEEDLE ROLLER A 4x19.8 G2 DIN 5402
BSD-1903201056.A8
1903201056
|
-
|
|
|
|
43 - COMPRESSION SPRING
BSD-1609310191.A2
1609310191
|
-
|
|
|
|
44 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A184
2915011005
|
£1.75
|
£2.10
|
|
|
45 - HEX NUT
BSD-1609310345.A1
1609310345
|
-
|
|
|
|
46 - GROOVE BALL BEARING 6002-Z DIN 625
BSD-1900905102.A64
1900905102
|
-
|
|
|
|
47 - BEARING FLANGE
BSD-1609310242.A7
1609310242
|
-
|
|
|
|
48 - SLOTTED SPRING PIN 3x14 DIN 1481
BSD-2917760078.A1
2917760078
|
-
|
|
|
|
49 - STATOR
BSD-1609310226.A7
1609310226
|
-
|
|
|
|
50 - CLAMPING SLEEVE 3x10 DIN 1481
BSD-2917761076.A5
2917761076
|
-
|
|
|
|
51 - ROTOR
BSD-1609310219.A2
1609310219
|
-
|
|
|
|
52 - ROTOR LAMELLA
BSD-1609310231.A7
1609310231
|
-
|
|
|
|
53 - O-RING
BSD-1609310281.A7
1609310281
|
-
|
|
|
|
54 - BEARING FLANGE
BSD-1609310237.A7
1609310237
|
-
|
|
|
|
56 - ANG. CONTACT BALL BEARING 3204 DIN 628
BSD-1900900658.A1
1900900658
|
-
|
|
|
|
57 - DISC SPRING
BSD-1609310194.A2
1609310194
|
-
|
|
|
|
58 - SHIM
BSD-1609310180.A1
1609310180
|
-
|
|
|
|
59 - CARRIER
BSD-1609310216.A2
1609310216
|
-
|
|
|
|
60 - SPRING RETAINING RING
BSD-1609310169.A1
1609310169
|
-
|
|
|
|
61 - NEEDLE-ROLLER BEARING
BSD-1609310207.A2
1609310207
|
-
|
|
|
|
62 - DRIVE SHAFT
BSD-1609310268.A1
1609310268
|
-
|
|
|
|
63 - SPINDLE BEARING
BSD-1609310261.A3
1609310261
|
-
|
|
|
|
65 - ANG. CONTACT BALL BEARING 3203 DIN 628
BSD-1900900653.A2
1900900653
|
-
|
|
|
|
66 - THREADED RING
BSD-1609310273.A0
1609310273
|
-
|
|
|
|
67 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8
BSD-2910141201.A239
2910141201
|
£2.61
|
£3.13
|
|
|
70 - ROUND NUT
BSD-1609310278.A2
1609310278
|
-
|
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A929
3601119236
|
£3.72
|
£4.47
|
|
|
650 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A560
2607950004
|
£1.75
|
£2.10
|
|
|
651 - OFFSET SCREWDRIVER SW8
BSD-1607950009.A20
1607950009
|
-
|
|
|
|
657 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A265
1907950007
|
£5.30
|
£6.36
|
|
