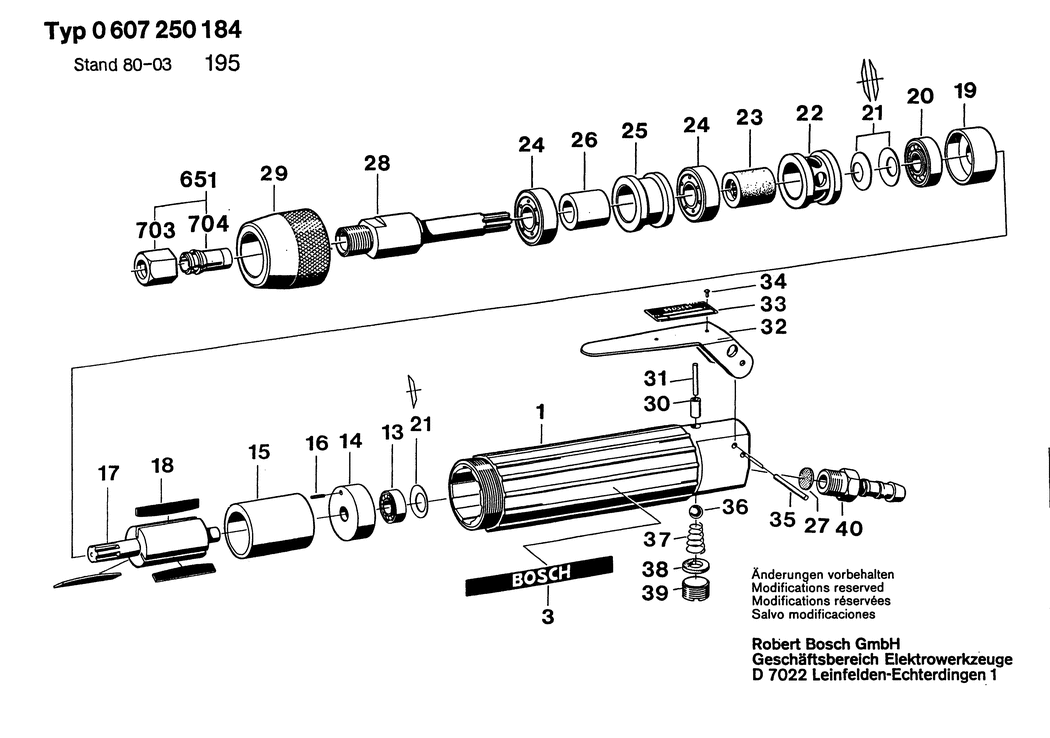

1 - HOUSING
BSD-1609310325.A0
1609310325
|
-
|
|
|
|
3 - MANUFACTURER'S NAMEPLATE
BSD-1609310208.A2
1609310208
|
-
|
|
|
|
13 - GROOVE BALL BEARING 624 DIN 625
BSD-1900900231.A0
1900900231
|
£0.00
|
£0.00
|
|
|
14 - BEARING FLANGE
BSD-1609310239.A1
1609310239
|
-
|
|
|
|
15 - STATOR
BSD-1609310228.A1
1609310228
|
-
|
|
|
|
16 - SLOTTED SPRING PIN 1.5x6 DIN 1481
BSD-2917760014.A0
2917760014
|
-
|
|
|
|
17 - ROTOR
BSD-1609310218.A0
1609310218
|
-
|
|
|
|
18 - ROTOR LAMELLA
BSD-1609310229.A0
1609310229
|
-
|
|
|
|
19 - BEARING FLANGE
BSD-1609310234.A0
1609310234
|
-
|
|
|
|
20 - GROOVE BALL BEARING 607 P6 DIN 625
BSD-1900900245.A1
1900900245
|
-
|
|
|
|
21 - DISC SPRING
BSD-1609310193.A1
1609310193
|
-
|
|
|
|
22 - GUIDE BUSHING
BSD-1609310285.A0
1609310285
|
-
|
|
|
|
23 - CARRIER
BSD-1609310215.A1
1609310215
|
-
|
|
|
|
24 - GROOVE BALL BEARING
BSD-1609310197.A2
1609310197
|
-
|
|
|
|
25 - GUIDE BUSHING
BSD-1609310284.A1
1609310284
|
-
|
|
|
|
26 - GUIDE BUSHING
BSD-1609310183.A0
1609310183
|
-
|
|
|
|
27 - STRAINER
BSD-1609310149.A1
1609310149
|
-
|
|
|
|
28 - DRIVE SHAFT
BSD-1609310269.A1
1609310269
|
-
|
|
|
|
29 - PROTECTIVE CAP
BSD-1609310274.A1
1609310274
|
-
|
|
|
|
30 - GUIDE BUSHING
BSD-1609310182.A1
1609310182
|
-
|
|
|
|
31 - NEEDLE ROLLER
BSD-1903201521.A9
1903201521
|
£1.75
|
£2.10
|
|
|
32 - CONTROL LEVER
BSD-1609310271.A3
1609310271
|
-
|
|
|
|
33 - NAMEPLATE
BSD-1601104578.A4
1601104578
|
-
|
|
|
|
34 - ROUND-HEAD GROOVED PIN
BSD-1609310358.A7
1609310358
|
-
|
|
|
|
35 - NEEDLE ROLLER A 3x23.8 G2 DIN 5402
BSD-1903201047.A3
1903201047
|
-
|
|
|
|
36 - BALL
BSD-1609310155.A0
1609310155
|
-
|
|
|
|
37 - COMPRESSION SPRING
BSD-1609310184.A1
1609310184
|
-
|
|
|
|
38 - SEAL RING
BSD-1609310152.A1
1609310152
|
-
|
|
|
|
39 - SCREW PLUG
BSD-1609310134.A1
1609310134
|
-
|
|
|
|
40 - HOSE FITTING
BSD-1609310043.A7
1609310043
|
-
|
|
|
|
53 - FITTING
BSD-1609310326.A0
1609310326
|
-
|
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A932
3601119236
|
£3.72
|
£4.47
|
|
|
650 - SINGLE-HEAD ENG. WRENCH SW 14
BSD-1907950508.A62
1907950508
|
£14.91
|
£17.89
|
|
|
651 - COLLET dia 6 MM
BSD-1608570061.A1
1608570061
|
-
|
|
|
|
703 - UNION NUT
BSD-3603340018.A2
3603340018
|
£23.86
|
£28.63
|
|
|
704 - COLLET dia 3 MM
BSD-1608570059.A7
1608570059
|
-
|
|
|
|
704 - COLLET dia 1/8
BSD-2608570070.A9
2608570070
|
-
|
|
|
|
704 - COLLET dia 6 MM
BSD-2608570071.A0
2608570071
|
£23.07
|
£27.68
|
|
|
704 - COLLET dia 1/4
BSD-2608570072.A13
2608570072
|
£33.74
|
£40.49
|
|
