Bosch 50 WATT-SERIE / 0607250201 / --- Spare Parts

Bosch 50 WATT-SERIE / 0607250201 / --- Spare Parts

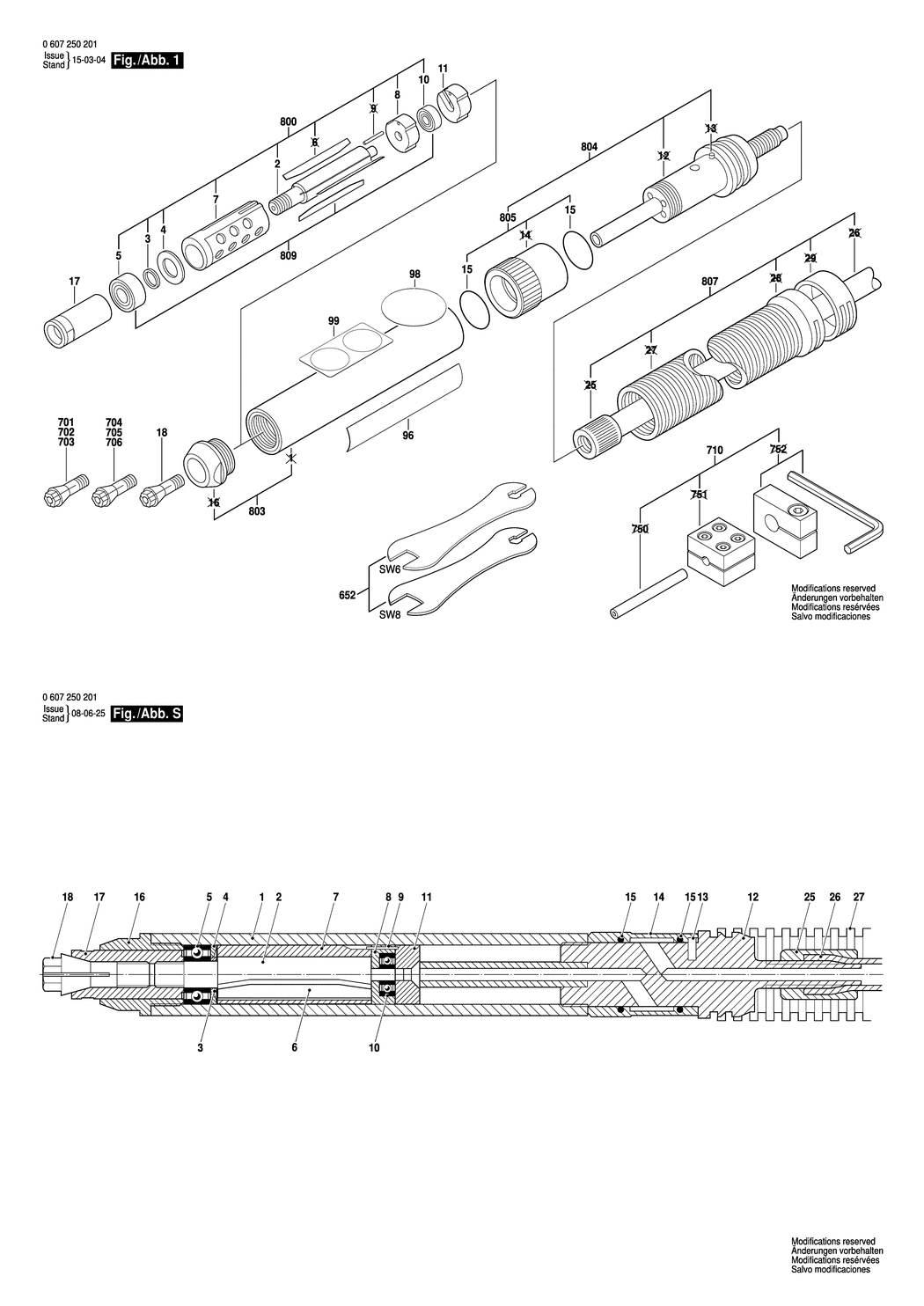

An exploded drawing and listing for the Bosch 50 WATT-SERIE / 0607250201 / ---
Ex VAT Inc VAT
2 - ROTOR BSD-3609202287.A1 3609202287 £283.50 £340.20
3 - RING BSD-3609202288.A0 3609202288 £27.23 £32.68
4 - PLATE BSD-3609202289.A1 3609202289 £45.67 £54.80
5 - GROOVE BALL BEARING BSD-3609202290.A0 3609202290 £48.38 £58.06
7 - STATOR BSD-3609202302.A0 3609202302 £357.27 £428.72
8 - PLATE BSD-3609202291.A1 3609202291 £120.11 £144.13
10 - GROOVE BALL BEARING BSD-3609202292.A0 3609202292 £37.72 £45.27
11 - AIR-DEFLECTOR RING BSD-3609201202.A1 3609201202 £81.81 £98.17
15 - O-RING BSD-3609201211.A0 3609201211 £13.12 £15.75
17 - SPINDLE BSD-3609201208.A0 3609201208 £81.81 £98.17
18 - COLLET dia 3.0 MM BSD-2609200158.A0 2609200158 £63.50 £76.20
96 - MANUFACTURER'S NAMEPLATE BSD-3601119055.A79 3601119055 £3.72 £4.47
98 - REFERENCE PLATE BSD-3601119245.A1 3601119245 -
99 - REFERENCE PLATE BSD-3601119236.A918 3601119236 £3.72 £4.47
652 - SET OF KEYS BSD-3607950022.A4 3607950022 £63.50 £76.20
701 - COLLET dia 1.0 MM BSD-3609201185.A0 3609201185 £68.42 £82.10
702 - COLLET dia 1.5 MM BSD-3609201186.A5 3609201186 £68.42 £82.10
703 - COLLET dia 2.0 MM BSD-3609201187.A0 3609201187 £63.50 £76.20
704 - COLLET dia 2.5 MM BSD-3609201188.A5 3609201188 £68.42 £82.10
705 - COLLET dia 3/32 BSD-3609201189.A0 3609201189 £68.42 £82.10
706 - COLLET dia 1/8 BSD-3609201190.A5 3609201190 £68.42 £82.10
710 - ASSEMBLY OF SERVICE PARTS BSD-3609201213.A0 3609201213 £500.46 £600.55
800 - ASSEMBLY OF SERVICE PARTS BSD-3609201201.A0 3609201201 £608.95 £730.74
803 - ASSEMBLY OF SERVICE PARTS BSD-3609201204.A0 3609201204 £218.41 £262.09
804 - ASSEMBLY OF SERVICE PARTS BSD-3609201205.A1 3609201205 £306.65 £367.98
805 - ASSEMBLY OF SERVICE PARTS BSD-3609201206.A0 3609201206 £156.22 £187.46
807 - ASSEMBLY OF SERVICE PARTS BSD-3609201198.A5 3609201198 £179.37 £215.24
809 - ASSEMBLY OF SERVICE PARTS BSD-3609201209.A1 3609201209 £156.22 £187.46
810 - SET OF CLUTCH PLATES BSD-3607031727.A0 3607031727 -
