Bosch 50 WATT-SERIE / 0607250203 / --- Spare Parts

Bosch 50 WATT-SERIE / 0607250203 / --- Spare Parts

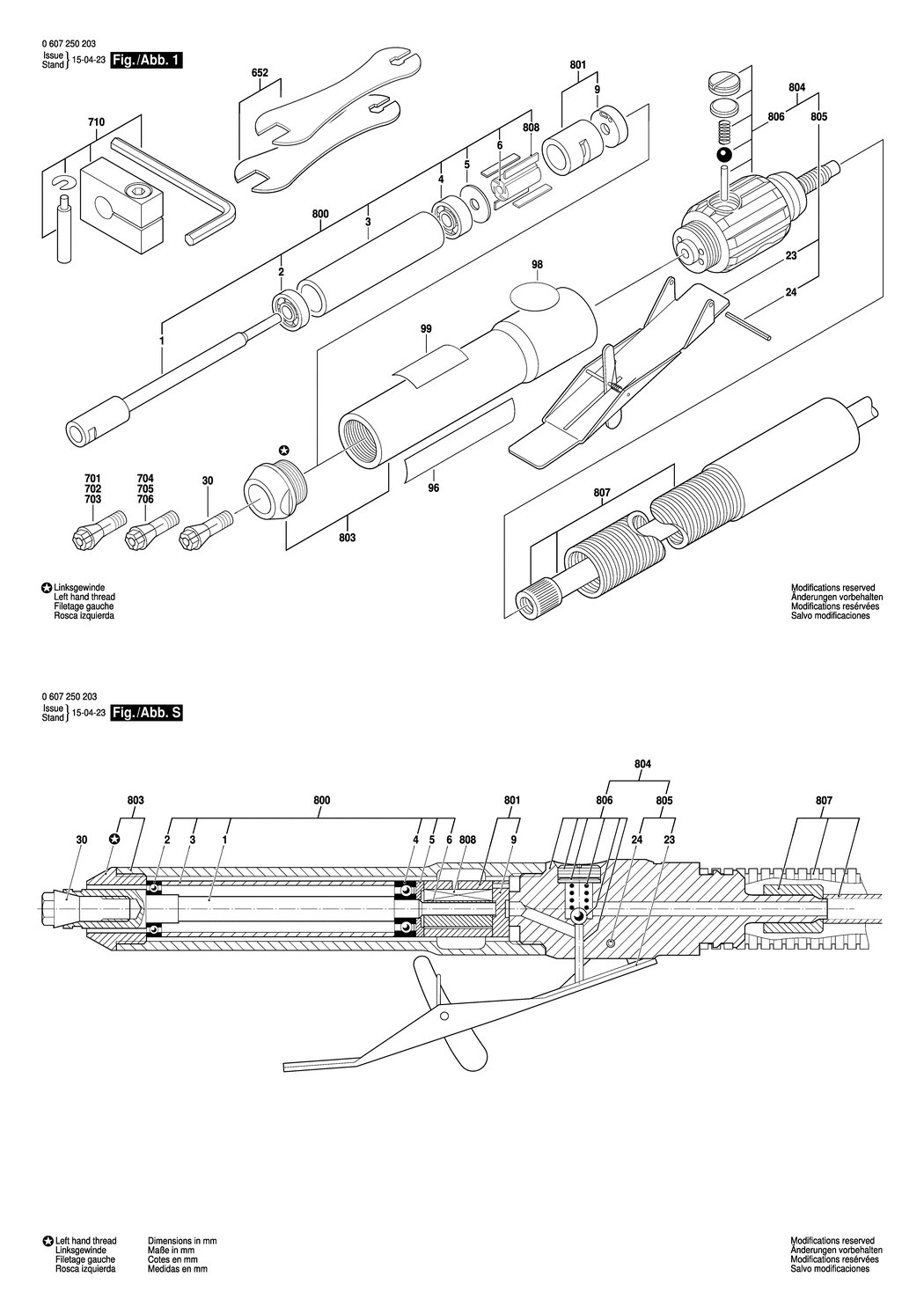

An exploded drawing and listing for the Bosch 50 WATT-SERIE / 0607250203 / ---
Ex VAT Inc VAT
1 - SPINDLE BSD-3609202293.A3 3609202293 £283.50 £340.20
2 - GROOVE BALL BEARING BSD-3609202294.A0 3609202294 £33.74 £40.49
3 - PIPE BSD-3609202301.A2 3609202301 -
4 - GROOVE BALL BEARING BSD-3609202295.A2 3609202295 £33.74 £40.49
5 - PLATE BSD-3609202296.A1 3609202296 £33.74 £40.49
6 - ROTOR BSD-3609202297.A2 3609202297 £195.26 £234.31
9 - PLATE BSD-3609202298.A1 3609202298 £114.88 £137.86
23 - LEVER BSD-3609202299.A1 3609202299 £59.53 £71.44
24 - SLOTTED SPRING PIN BSD-3609202300.A0 3609202300 -
30 - COLLET dia 3.0 MM BSD-2609200158.A2 2609200158 £63.50 £76.20
96 - MANUFACTURER'S NAMEPLATE BSD-3601119055.A80 3601119055 £3.72 £4.47
98 - REFERENCE PLATE BSD-3601119244.A1 3601119244 -
99 - REFERENCE PLATE BSD-3601119236.A916 3601119236 £3.72 £4.47
652 - SET OF KEYS BSD-3607950022.A3 3607950022 £63.50 £76.20
701 - COLLET dia 1.0 MM BSD-3609201185.A2 3609201185 £68.42 £82.10
702 - COLLET dia 1.5 MM BSD-3609201186.A3 3609201186 £68.42 £82.10
703 - COLLET dia 2.0 MM BSD-3609201187.A2 3609201187 £63.50 £76.20
704 - COLLET dia 2.5 MM BSD-3609201188.A3 3609201188 £68.42 £82.10
705 - COLLET dia 3/32 BSD-3609201189.A2 3609201189 £68.42 £82.10
706 - COLLET dia 1/8 BSD-3609201190.A3 3609201190 £68.42 £82.10
710 - ASSEMBLY OF SERVICE PARTS BSD-3609201212.A0 3609201212 -
800 - ASSEMBLY OF SERVICE PARTS BSD-3609201191.A1 3609201191 £553.99 £664.79
801 - ASSEMBLY OF SERVICE PARTS BSD-3609201192.A2 3609201192 £218.41 £262.09
803 - ASSEMBLY OF SERVICE PARTS BSD-3609201194.A1 3609201194 £357.27 £428.72
804 - ASSEMBLY OF SERVICE PARTS BSD-3609201195.A1 3609201195 £357.27 £428.72
805 - ASSEMBLY OF SERVICE PARTS BSD-3609201196.A0 3609201196 £40.80 £48.96
806 - ASSEMBLY OF SERVICE PARTS BSD-3609201197.A1 3609201197 £306.65 £367.98
807 - ASSEMBLY OF SERVICE PARTS BSD-3609201198.A0 3609201198 £179.37 £215.24
808 - SET OF CLUTCH PLATES BSD-3609201580.A1 3609201580 £31.64 £37.97
