Bosch 50 WATT-SERIE / 0607250206 / --- Spare Parts

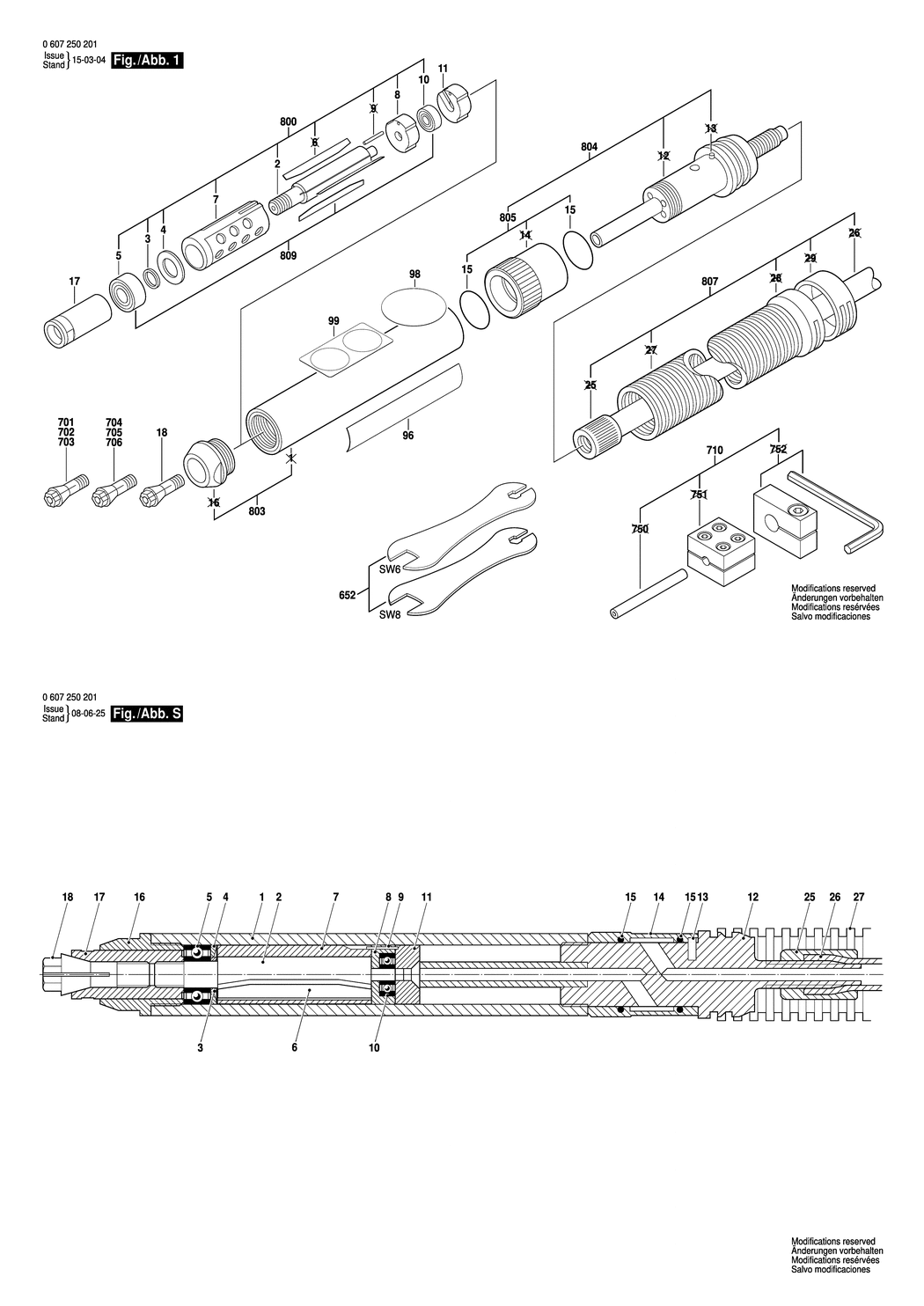

An exploded drawing and listing for the Bosch 50 WATT-SERIE / 0607250206 / ---

	Ex VAT	Inc VAT
2 - ROTOR BSD-3609202287.A0 3609202287	£283.50	£340.20
3 - RING BSD-3609202288.A1 3609202288	£27.23	£32.68
4 - PLATE BSD-3609202289.A0 3609202289	£45.67	£54.80
5 - GROOVE BALL BEARING BSD-3609202290.A1 3609202290	£48.38	£58.06
7 - STATOR BSD-3609202302.A1 3609202302	£357.27	£428.72
8 - PLATE BSD-3609202291.A0 3609202291	£120.11	£144.13
10 - GROOVE BALL BEARING BSD-3609202292.A1 3609202292	£37.72	£45.27
11 - AIR-DEFLECTOR RING BSD-3609201202.A0 3609201202	£81.81	£98.17
15 - O-RING BSD-3609201211.A1 3609201211	£13.12	£15.75
17 - SPINDLE BSD-3609201208.A1 3609201208	£81.81	£98.17
18 - COLLET dia 1/8 BSD-3609201190.A2 3609201190	£68.42	£82.10
96 - MANUFACTURER'S NAMEPLATE BSD-3601119055.A81 3601119055	£3.72	£4.47
98 - REFERENCE PLATE BSD-3601119245.A0 3601119245	-
99 - REFERENCE PLATE BSD-3601119236.A913 3601119236	£3.72	£4.47
652 - SET OF KEYS BSD-3607950022.A0 3607950022	£63.50	£76.20
701 - COLLET dia 1.0 MM BSD-3609201185.A5 3609201185	£68.42	£82.10
702 - COLLET dia 1.5 MM BSD-3609201186.A0 3609201186	£68.42	£82.10
703 - COLLET dia 2.0 MM BSD-3609201187.A5 3609201187	£63.50	£76.20
704 - COLLET dia 2.5 MM BSD-3609201188.A0 3609201188	£68.42	£82.10
705 - COLLET dia 3/32 BSD-3609201189.A5 3609201189	£68.42	£82.10
710 - ASSEMBLY OF SERVICE PARTS BSD-3609201213.A1 3609201213	£500.46	£600.55
800 - ASSEMBLY OF SERVICE PARTS BSD-3609201201.A1 3609201201	£608.95	£730.74
803 - ASSEMBLY OF SERVICE PARTS BSD-3609201204.A1 3609201204	£218.41	£262.09
804 - ASSEMBLY OF SERVICE PARTS BSD-3609201205.A0 3609201205	£306.65	£367.98
805 - ASSEMBLY OF SERVICE PARTS BSD-3609201206.A1 3609201206	£156.22	£187.46
807 - ASSEMBLY OF SERVICE PARTS BSD-3609201198.A3 3609201198	£179.37	£215.24
809 - ASSEMBLY OF SERVICE PARTS BSD-3609201209.A0 3609201209	£156.22	£187.46
810 - SET OF CLUTCH PLATES BSD-3607031727.A1 3607031727	-
