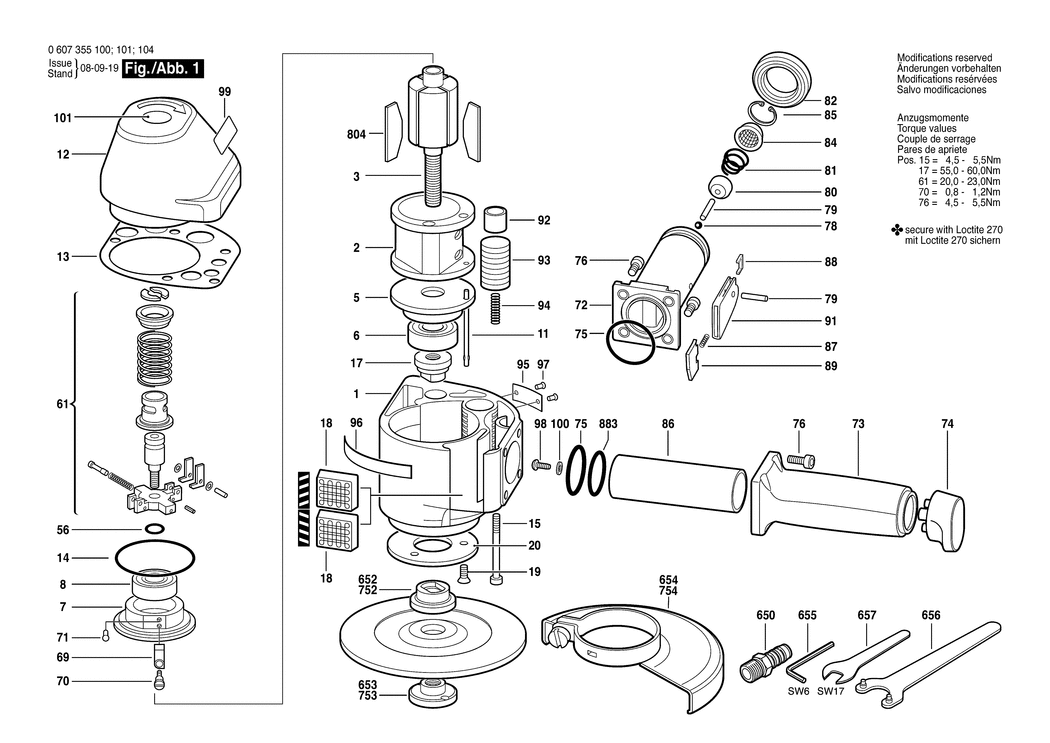

1 - MOTOR HOUSING
BSD-3605102005.A1
3605102005
|
-
|
|
|
2 - STATOR 2.5KW
BSD-3604090033.A2
3604090033
|
£134.16
|
£160.99
|
|
3 - ROTOR
BSD-3604220016.A1
3604220016
|
-
|
|
|
5 - BEARING FLANGE
BSD-3605700026.A6
3605700026
|
£81.81
|
£98.17
|
|
6 - GROOVE BALL BEARING 6303-2 Z DIN 625
BSD-1900905326.A9
1900905326
|
£27.23
|
£32.68
|
|
7 - BEARING FLANGE
BSD-3605700025.A3
3605700025
|
£135.25
|
£162.30
|
|
8 - GROOVE BALL BEARING 20x42x12
BSD-1900905119.A0
1900905119
|
-
|
|
|
11 - STRAIGHT PIN
BSD-3604710018.A2
3604710018
|
£8.67
|
£10.41
|
|
12 - UPPER HOUSING
BSD-3605102007.A2
3605102007
|
£179.37
|
£215.24
|
|
13 - SEAL
BSD-3600034000.A5
3600034000
|
£4.26
|
£5.11
|
|
14 - O-RING 74.0x3.0 MM
BSD-1600210006.A60
1600210006
|
£1.75
|
£2.10
|
|
15 - HEX SOCKET HEAD CAP SCREW M 5x65 DIN 912-8.8
BSD-2910141179.A5
2910141179
|
£5.30
|
£6.36
|
|
17 - THREADED BUSHING
BSD-3600363001.A1
3600363001
|
-
|
|
|
18 - SILENCER
BSD-3602307000.A5
3602307000
|
£2.80
|
£3.36
|
|
56 - O-RING 15x2.5 MM
BSD-1900210113.A18
1900210113
|
£2.61
|
£3.13
|
|
61 - FLYWEIGHT ASSEMBLY
BSD-3607021010.A3
3607021010
|
-
|
|
|
69 - THROTTLE FLAP
BSD-3601036000.A4
3601036000
|
£2.80
|
£3.36
|
|
70 - PAN HEAD SCREW DIN 923-M3x8-5.8
BSD-2910271050.A4
2910271050
|
£2.61
|
£3.13
|
|
71 - ROUND-HEAD GROOVED PIN DIN 1476-2x3-St
BSD-2917721031.A96
2917721031
|
£1.75
|
£2.10
|
|
72 - HANDLE
BSD-3605132000.A5
3605132000
|
£72.18
|
£86.62
|
|
73 - HANDLE
BSD-3605132001.A4
3605132001
|
£16.41
|
£19.69
|
|
74 - SEALING CAP
BSD-3600508001.A8
3600508001
|
£5.58
|
£6.70
|
|
75 - O-RING 40x2.5 MM
BSD-1900210342.A8
1900210342
|
-
|
|
|
76 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8
BSD-2910141154.A79
2910141154
|
£1.75
|
£2.10
|
|
78 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A332
1903230007
|
£1.75
|
£2.10
|
|
79 - NEEDLE ROLLER DIN5402-A3.5x34.8-G2
BSD-1903201064.A9
1903201064
|
£3.72
|
£4.47
|
|
80 - VALVE BODY
BSD-3603231001.A5
3603231001
|
£2.80
|
£3.36
|
|
81 - COMPRESSION SPRING
BSD-3604643006.A8
3604643006
|
£2.80
|
£3.36
|
|
82 - BACKUP RING
BSD-3600290000.A8
3600290000
|
£14.91
|
£17.89
|
|
84 - STRAINER
BSD-3600002005.A32
3600002005
|
£2.80
|
£3.36
|
|
85 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916661008.A0
2916661008
|
-
|
|
|
86 - SCREENING TUBE
BSD-3600409001.A1
3600409001
|
£6.52
|
£7.83
|
|
87 - COMPRESSION SPRING
BSD-3604612003.A1
3604612003
|
£2.16
|
£2.59
|
|
88 - HOLDING BRACKET
BSD-3601320000.A2
3601320000
|
£1.75
|
£2.10
|
|
89 - LOCK BOLT
BSD-3601000000.A6
3601000000
|
£2.16
|
£2.59
|
|
91 - CONTROL LEVER
BSD-3601902002.A6
3601902002
|
£5.30
|
£6.36
|
|
92 - POWER PISTON
BSD-3603200003.A4
3603200003
|
£23.86
|
£28.63
|
|
93 - CONTROL PISTON
BSD-3608750008.A7
3608750008
|
£21.68
|
£26.01
|
|
94 - COMPRESSION SPRING
BSD-3604611013.A7
3604611013
|
£2.16
|
£2.59
|
|
95 - NAMEPLATE
BSD-160111A3HF.A89
160111A3HF
|
£3.72
|
£4.47
|
|
96 - STICKER
BSD-1601110046.A92
1601110046
|
£1.75
|
£2.10
|
|
97 - GROOVED NAIL
BSD-3603133000.A248
3603133000
|
£2.61
|
£3.13
|
|
98 - TAPPING SCREW B 4.2x16 DIN 7981-B2
BSD-2918140026.A7
2918140026
|
£1.75
|
£2.10
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1458
3601119236
|
£3.72
|
£4.47
|
|
100 - PLAIN WASHER
BSD-1600100629.A1
1600100629
|
£1.75
|
£2.10
|
|
101 - REFERENCE PLATE
BSD-3601119254.A2
3601119254
|
-
|
|
|
650 - HOSE FITTING
BSD-3603386004.A7
3603386004
|
£11.30
|
£13.56
|
|
652 - CLAMPING-FLANGE dia45 MM
BSD-2600501006.A291
2600501006
|
£16.43
|
£19.72
|
|
653 - ROUND NUT M14
BSD-2603345004.A304
2603345004
|
£6.52
|
£7.83
|
|
654 - PROTECTIVE COVER dia 230 MM
BSD-2605510089.A1
2605510089
|
-
|
|
|
655 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A394
1907950007
|
£5.30
|
£6.36
|
|
656 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A166
1607950061
|
£5.42
|
£6.50
|
|
657 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A904
2607950511
|
£4.26
|
£5.11
|
|
752 - CLAMPING-FLANGE dia45 MM
BSD-2600501006.A290
2600501006
|
£16.43
|
£19.72
|
|
753 - ROUND NUT M14
BSD-1603345025.A19
1603345025
|
£8.21
|
£9.85
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030281.A4
3607030281
|
£24.45
|
£29.34
|
|
883 - PARTS SET
BSD-3607010026.A13
3607010026
|
£8.67
|
£10.41
|
|
