Bosch ABS 96-M 2 / 0601945671 / EU 9.6 Volt Spare Parts

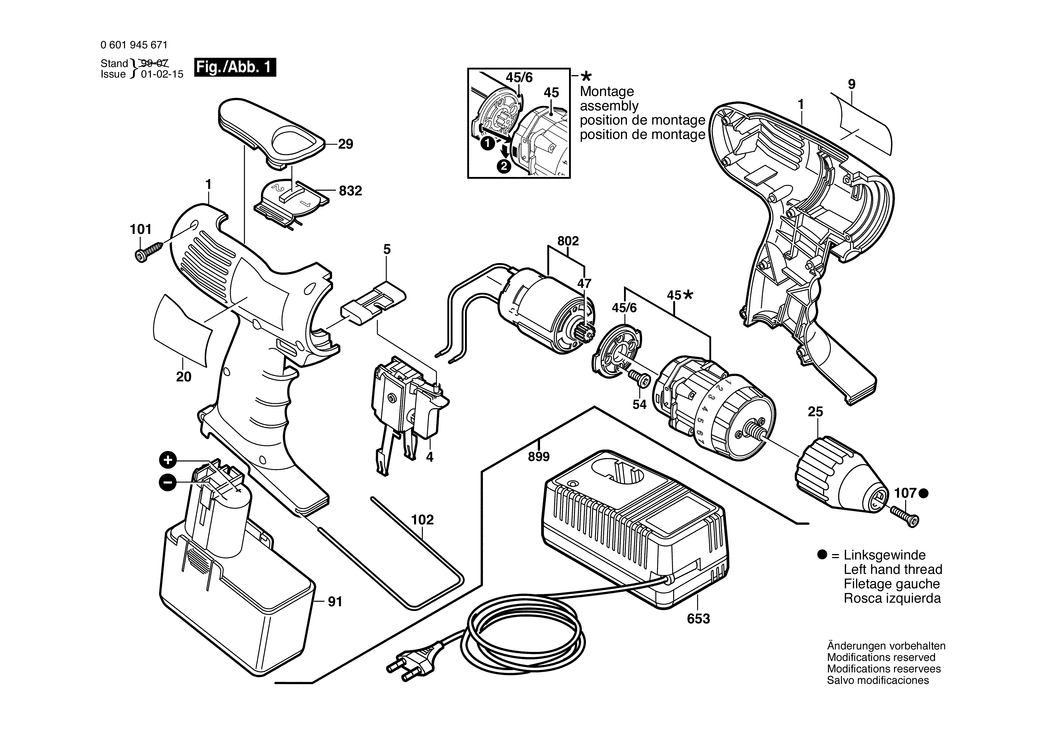

An exploded drawing and listing for the Bosch ABS 96-M 2 / 0601945671 / EU 9.6 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104541.A0 2605104541	-
4 - ON-OFF SWITCH BSD-2607200361.A0 2607200361	£46.82	£56.18
5 - ADJUSTING SLIDE BSD-2601099066.A0 2601099066	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601118984.A0 2601118984	-
20 - REFERENCE PLATE BSD-2601118985.A3 2601118985	-
25 - KEYLESS CHUCK BSD-2608572099.A3 2608572099	-
29 - INSERT PIECE BSD-2605510158.A4 2605510158	-
45 - PLANETARY GEAR TRAIN BSD-2606200065.A4 2606200065	-
45/6 - INTERMEDIATE FLANGE BSD-2605719008.A3 2605719008	£3.72	£4.47
47 - PINION Z=12 BSD-2606316161.A51 2606316161	-
54 - TORX SH CAP SCREW M4x8-4.8-Z BSD-2603414049.A34 2603414049	-
91 - ACCUMULATOR BATTERY 9.6V.1.7Ah.NiCd BSD-2607335171.A2 2607335171	-
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A456 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A136 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW BSD-2603421227.A2 2603421227	-
653 - FAST CHARGER EU 230/7.2-14.4V. 1h BSD-2607224723.A3 2607224723	-
802 - DC MOTOR 9.6-12V BSD-2607022957.A16 2607022957	-
832 - ADJUSTING SLIDE BSD-2601099119.A7 2601099119	£8.49	£10.19
899 - BATT-OPER SCREWDRIVER BSD-0601945672.A0 0601945672	-

Attribute Name	Value
Brand	Bosch
