Bosch ABS-M1 12 V / 3601J16526 / EU 12 Volt Spare Parts

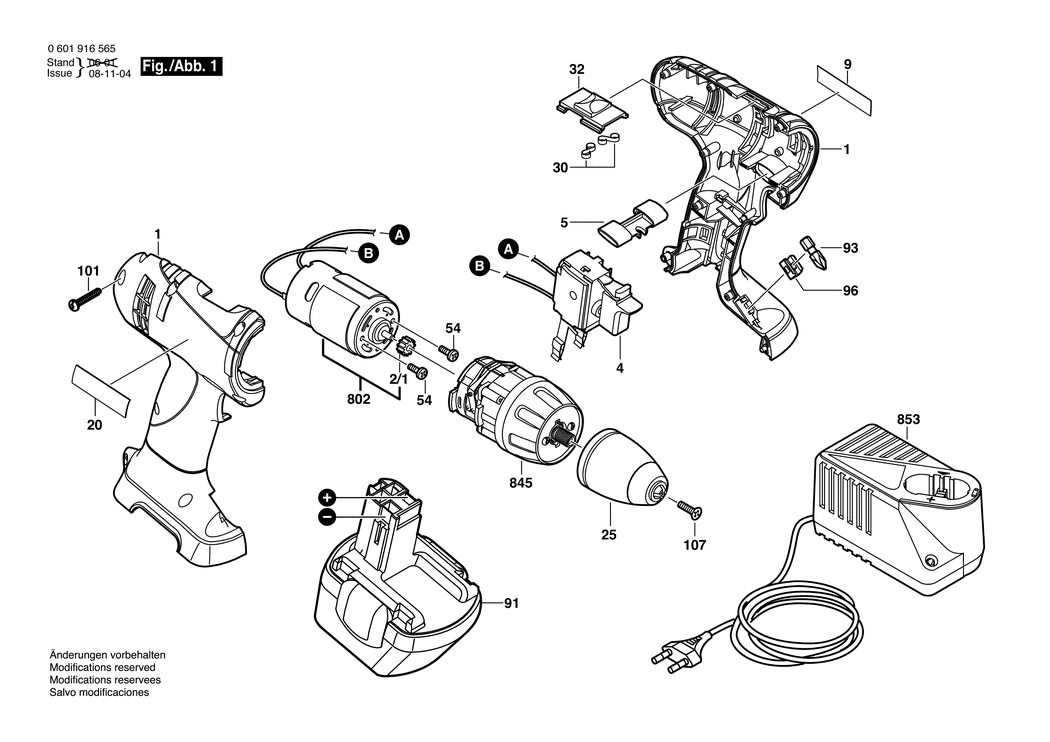

An exploded drawing and listing for the Bosch ABS-M1 12 V / 3601J16526 / EU 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605105043.A0 2605105043	£16.74	£20.09
2/1 - PINION BSD-2606316226.A15 2606316226	£5.87	£7.04
4 - ON-OFF SWITCH BSD-2607200481.A0 2607200481	£36.63	£43.96
5 - ADJUSTING SLIDE BSD-2601099130.A4 2601099130	£2.52	£3.02
9 - MANUFACTURER'S NAMEPLATE BSD-2601116803.A0 2601116803	£3.34	£4.01
20 - MANUFACTURER'S NAMEPLATE BSD-2601116874.A0 2601116874	£3.34	£4.01
25 - KEYLESS CHUCK BSD-2608572201.A5 2608572201	£41.62	£49.95
30 - LEAF SPRING BSD-2604690022.A2 2604690022	£1.75	£2.10
32 - ADJUSTING SLIDE BSD-2601099131.A5 2601099131	£1.32	£1.58
54 - TORX SH CAP SCREW M4x8-4.8-Z BSD-2603414049.A1 2603414049	-
91 - SLIDE-IN ACCU PACKAGE 12V.1.5Ah BSD-2607335649.A0 2607335649	-
93 - SCREWDRIVER BIT BSD-2607000366.A28 2607000366	-
96 - SPRING ELEMENT BSD-2604690035.A16 2604690035	£1.75	£2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A346 2603490018	£1.75	£2.10
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A302 2609110721	£2.16	£2.59
200 - REFERENCE PLATE BSD-2601116848.A0 2601116848	-
802 - DC MOTOR 12-14.4V BSD-2607022869.A9 2607022869	£54.42	£65.30
845 - PLANETARY GEAR TRAIN BSD-2606200942.A0 2606200942	£41.62	£49.95
853 - FAST CHARGER EU 230/7.2-24V.1h BSD-2607225023.A4 2607225023	£102.57	£123.08
