Bosch BS 14-A COMPACT / 3601H66X00 / EU 14.4 Volt Spare Parts

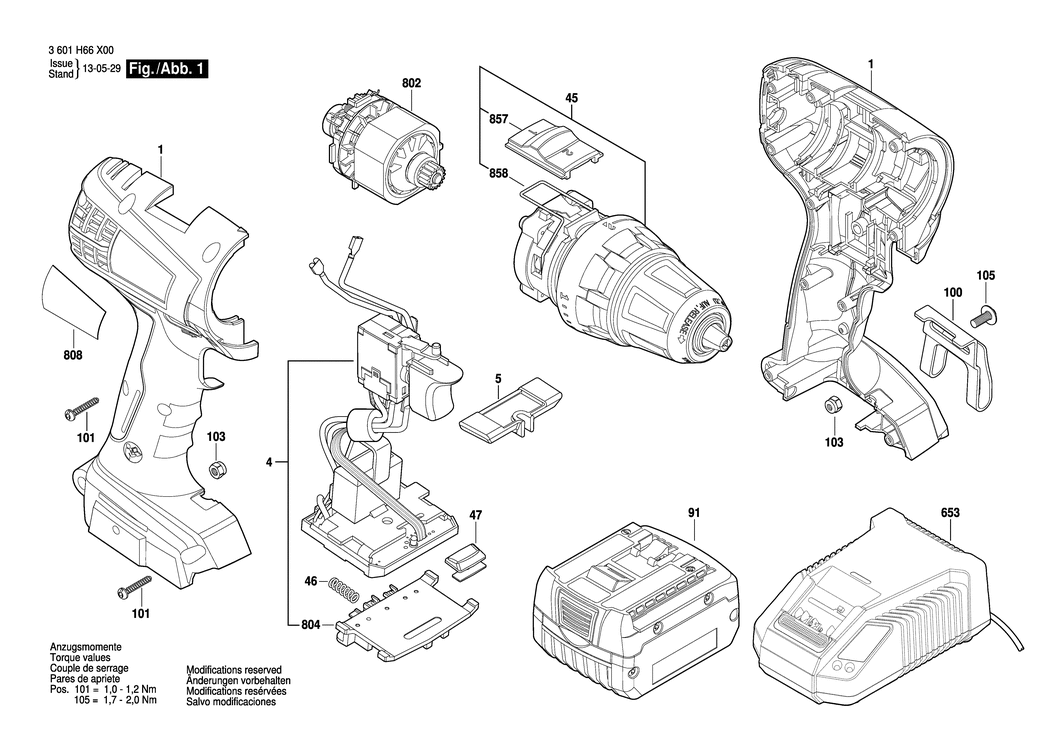

An exploded drawing and listing for the Bosch BS 14-A COMPACT / 3601H66X00 / EU 14.4 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609101153.A3 2609101153	£27.23	£32.68
4 - ELECTRONICS MODULE BSD-1607233491.A6 1607233491	£72.18	£86.62
5 - ADJUSTING LEVER BSD-2609100859.A3 2609100859	£1.75	£2.10
45 - GEAR BOX BSD-2609199569.A1 2609199569	£81.81	£98.17
46 - COMPRESSION SPRING BSD-1609280477.A4 1609280477	£1.75	£2.10
47 - LENS BSD-2609100858.A7 2609100858	£1.75	£2.10
91 - SLIDE-IN ACCU PACKAGE 14.4V. 4.0Ah. LI BSD-2607336973.A1 2607336973	£135.25	£162.30
100 - CLIP BSD-2609110956.A46 2609110956	£7.36	£8.83
101 - TORX OVAL-HEAD SCREW BSD-2609110353.A15 2609110353	£2.16	£2.59
103 - NUT BSD-2609110835.A2 2609110835	£1.75	£2.10
105 - SCREW BSD-2609110834.A90 2609110834	£1.75	£2.10
653 - FAST CHARGER EU 230/10.8-18V. 1h. AL 30-CV-LI BSD-2607225347.A15 2607225347	£93.88	£112.65
802 - DC MOTOR 14.4V BSD-2609199358.A5 2609199358	£63.50	£76.20
804 - CONTACT RETAINER BSD-1609280474.A46 1609280474	£14.91	£17.89
808 - NAMEPLATE BSD-2609133718.A1 2609133718	£2.61	£3.13
857 - SWITCH SLIDE BSD-2609101158.A5 2609101158	£2.16	£2.59
858 - SWITCH SPRING BSD-2609111078.A11 2609111078	£1.75	£2.10

Attribute Name	Value
Brand	Bosch
