Bosch GSR 14.4 VES-2 / 06019364A0 / EU 14.4 Volt Spare Parts

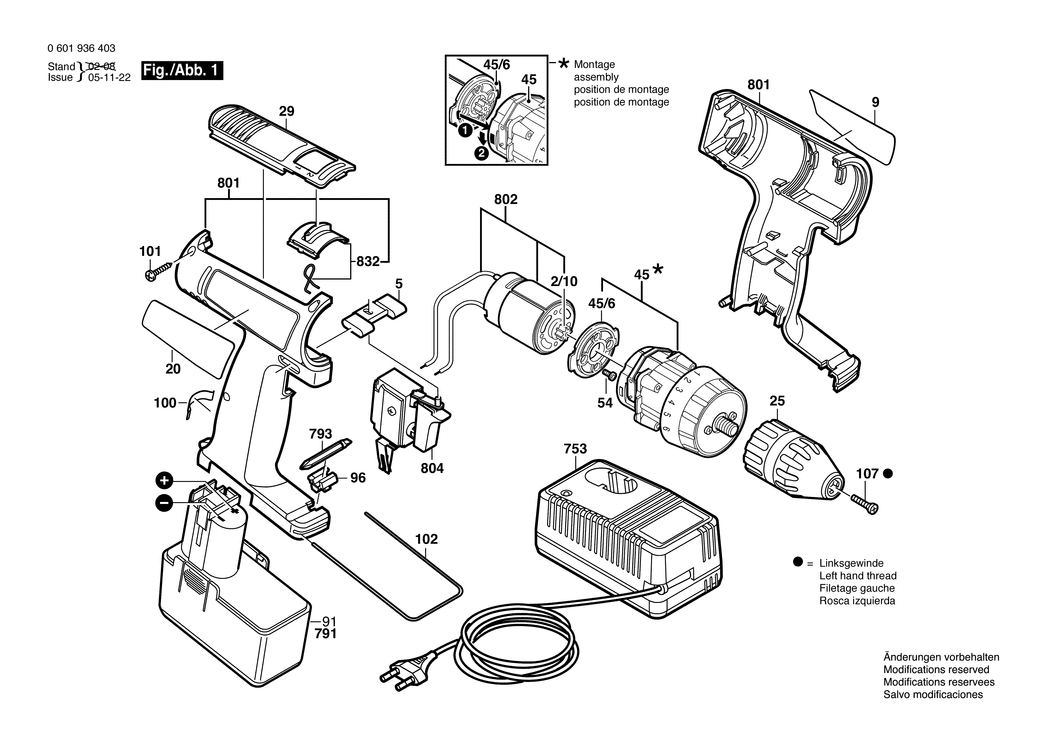

An exploded drawing and listing for the Bosch GSR 14.4 VES-2 / 06019364A0 / EU 14.4 Volt

	Ex VAT	Inc VAT
2/10 - PINION Z=12 BSD-2610967116.A17 2610967116	£3.72	£4.47
5 - ADJUSTING SLIDE BSD-2601099055.A1 2601099055	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601119580.A4 2601119580	-
20 - REFERENCE PLATE BSD-2601119581.A1 2601119581	-
25 - KEYLESS CHUCK dia 2-13 MM. 3/8 BSD-2608572096.A19 2608572096	-
29 - INSERT PIECE BSD-2605510130.A1 2605510130	-
45 - PLANETARY GEAR TRAIN BSD-2606200065.A5 2606200065	-
45/6 - INTERMEDIATE FLANGE BSD-2605719008.A2 2605719008	£3.72	£4.47
54 - TORX SH CAP SCREW M4x8-4.8-Z BSD-2603414049.A19 2603414049	-
96 - SUPPORT BSD-2608040131.A269 2608040131	£1.95	£2.34
100 - CLAMP SPRING BSD-2601322016.A41 2601322016	£2.52	£3.02
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A188 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A433 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A371 2609110721	£2.16	£2.59
753 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A520 2607224425	£88.07	£105.68
753 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN. BSD-2607224701.A128 2607224701	£88.07	£105.68
791 - ACCUMULATOR BATTERY 14.4V.2.0Ah.NiCd BSD-2607335209.A22 2607335209	-
793 - SCREWDRIVER BLADE BSD-2608521018.A294 2608521018	£5.01	£6.01
801 - HOUSING SECTION BSD-2605104826.A4 2605104826	-
802 - DC MOTOR 14.4V BSD-2607022961.A5 2607022961	-
804 - ON-OFF SWITCH BSD-2607200353.A86 2607200353	-
832 - ADJUSTING SLIDE BSD-2601099126.A0 2601099126	-
899 - BATT-OPER SCREWDRIVER BSD-0601936420.A1 0601936420	-

Attribute Name	Value
Brand	Bosch
