Bosch GSR 7.2 VES-2 / 0601936723 / EU 7.2 Volt Spare Parts

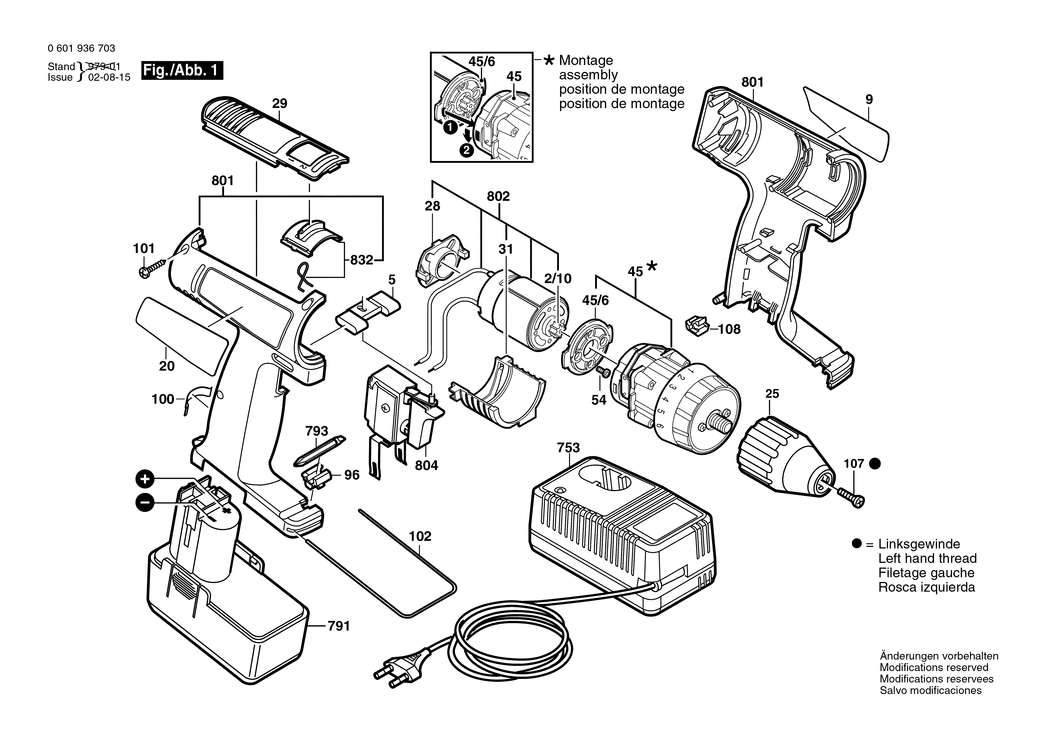

An exploded drawing and listing for the Bosch GSR 7.2 VES-2 / 0601936723 / EU 7.2 Volt

	Ex VAT	Inc VAT
2/10 - PINION Z=12 BSD-2606316161.A24 2606316161	-
5 - ADJUSTING SLIDE BSD-2601099055.A67 2601099055	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601118479.A1 2601118479	-
20 - REFERENCE PLATE BSD-2601118480.A1 2601118480	-
25 - KEYLESS CHUCK BSD-2608572214.A19 2608572214	£45.67	£54.80
28 - ADAPTER INSERT BSD-2605719018.A6 2605719018	-
29 - INSERT PIECE BSD-2605510130.A9 2605510130	-
31 - INSERTED PART BSD-2608040098.A3 2608040098	-
45 - PLANETARY GEAR TRAIN BSD-2606200065.A12 2606200065	-
45/6 - INTERMEDIATE FLANGE BSD-2605719008.A30 2605719008	£3.72	£4.47
54 - TORX SH CAP SCREW M3x5-8.8-Z BSD-2603414048.A22 2603414048	£1.75	£2.10
96 - SUPPORT BSD-2608040131.A129 2608040131	£1.95	£2.34
100 - CLAMP SPRING BSD-2601322016.A160 2601322016	£2.52	£3.02
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A872 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A59 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A82 2609110721	£2.16	£2.59
108 - SUPPORT BSD-2602180001.A4 2602180001	£1.75	£2.10
753 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A78 2607224425	£88.07	£105.68
753 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN. BSD-2607224701.A207 2607224701	£88.07	£105.68
791 - SLIDE-IN ACCU PACKAGE 7.2V.1.5Ah.NiCd BSD-2607336141.A43 2607336141	-
793 - SCREWDRIVER BLADE BSD-2608521018.A176 2608521018	£5.01	£6.01
801 - HOUSING SECTION BSD-2605104824.A2 2605104824	-
802 - DC MOTOR 7.2V BSD-2607022945.A1 2607022945	-
804 - ON-OFF SWITCH BSD-2607200353.A26 2607200353	-
832 - ADJUSTING SLIDE BSD-2601099126.A10 2601099126	-
899 - BATT-OPER SCREWDRIVER BSD-0601936723.A1 0601936723	-
