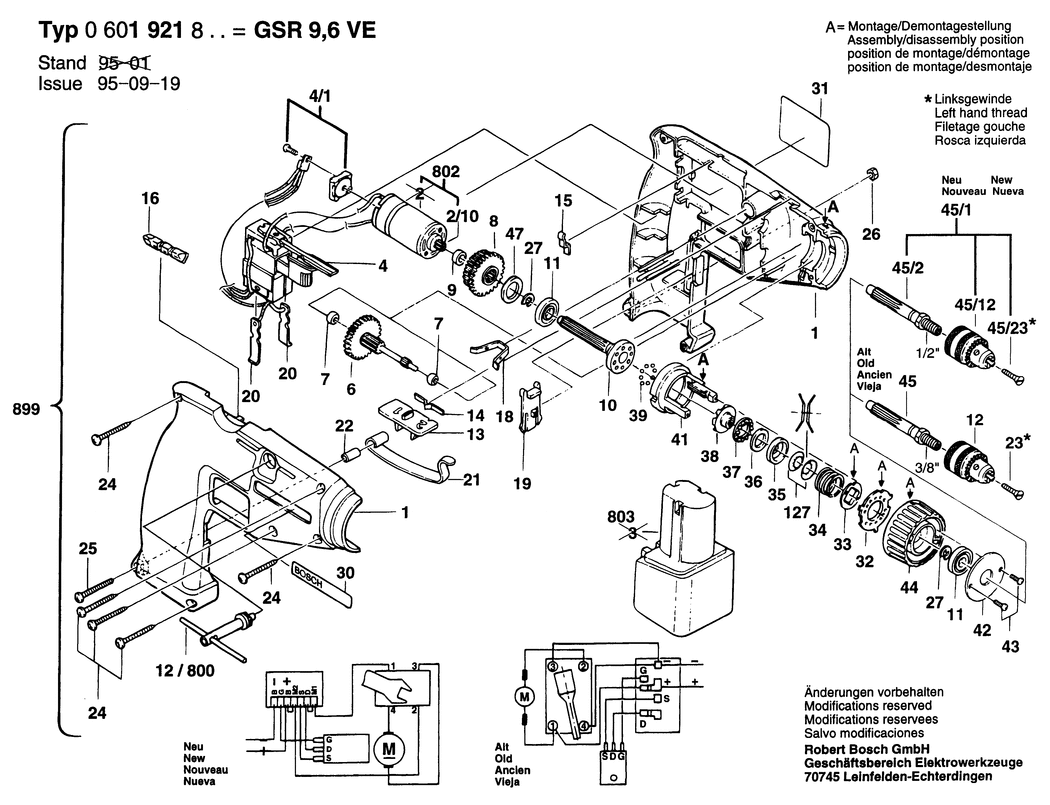

An exploded drawing and listing for the Bosch GSR 9.6 VE / 0601921827 / EU 9.6 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1609340022.A11 1609340022 -
2/10 - PINION Z=11 BSD-2606316112.A157 2606316112 £4.26 £5.11
4 - ON-OFF SWITCH BSD-2607200302.A19 2607200302 £45.67 £54.80
4/1 - HEAT SINK BSD-2605715000.A68 2605715000 -
4/10 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A129 2603490017 £2.16 £2.59
6 - TOOTHED SHAFT Z=10/19/81 BSD-1609340005.A178 1609340005 £16.74 £20.09
7 - SINTERED-METAL BUSHING BSD-2600302002.A25 2600302002 £1.75 £2.10
8 - SET OF GEARS Z=58/67 BSD-1609340007.A72 1609340007 £14.91 £17.89
9 - SINTERED-METAL BUSHING BSD-2600301011.A195 2600301011 £1.75 £2.10
10 - CAMSHAFT BSD-1609340023.A4 1609340023 -
11 - GROOVE BALL BEARING 6000 DIN 625 BSD-1900900270.A4 1900900270 -
12 - KEY CHUCK dia1-10 MM. 3/8 BSD-1608571058.A0 1608571058 £13.99 £16.79
12/800 - CHUCK WRENCH SG 1. dia4x60 MM BSD-1607950042.A98 1607950042 £3.49 £4.19
12/800 - CHUCK WRENCH SG1. dia5x80 MM BSD-1607950053.A20 1607950053 £3.49 £4.19
13 - ADJUSTING SLIDE BSD-1609340010.A14 1609340010 -
14 - RATCHET SPRING BSD-1609340011.A1 1609340011 -
15 - HOLDING SPRING BSD-1609340012.A14 1609340012 -
16 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A244 1609200147 £3.72 £4.47
18 - CLAMP SPRING BSD-2601250003.A83 2601250003 -
19 - LOCKING LEVER 32.7 MM BSD-1609340014.A1 1609340014 -
20 - CONTACT SPRING BSD-2601324012.A157 2601324012 £1.75 £2.10
21 - SPRING CLIP BSD-2601251004.A2 2601251004 -
22 - SPACER SLEEVE dia 6 MM BSD-1609340017.A4 1609340017 -
23 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A64 2609110721 £2.16 £2.59
24 - SOCKET HEAD CAP SCREW BSD-1609340019.A14 1609340019 -
25 - SOCKET HEAD CAP SCREW DIN 84-AM4x20-8.8 BSD-2910021130.A61 2910021130 £1.75 £2.10
26 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A130 2915011005 £1.75 £2.10
27 - LOCKING WASHER BSD-1609340020.A3 1609340020 -
30 - MANUFACTURER'S NAMEPLATE BSD-1601110217.A18 1601110217 -
31 - STICKER BSD-1601110379.A0 1601110379 -
32 - PERFORATED PANEL BSD-1609340024.A9 1609340024 -
33 - LOCATING WASHER BSD-1609340025.A4 1609340025 -
34 - COMPRESSION SPRING BSD-2604018000.A2 2604018000 -
35 - SUPPORTING DISC BSD-1609340027.A9 1609340027 -
36 - SUPPORT DISC BSD-1609340028.A4 1609340028 -
37 - D-GROOVE BALL THR BEARING BSD-1609340029.A9 1609340029 -
38 - DISC CAM BSD-1609340030.A4 1609340030 -
39 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A473 1903230007 £1.75 £2.10
41 - ADJUSTING SLEEVE BSD-1609340032.A10 1609340032 -
42 - RETAINING WASHER BSD-1609340033.A3 1609340033 -
43 - SOCKET HEAD CAP SCREW DIN 84-AM5x8-5.8 BSD-2910011150.A4 2910011150 -
44 - SETTING RING BSD-2605190014.A27 2605190014 -
45 - THREADED SPINDLE 1/2 BSD-1609340035.A13 1609340035 -
45/1 - THREADED SPINDLE 1/2 BSD-1609340035.A14 1609340035 -
45/2 - DRILLING SPINDLE 1/2 BSD-2606309912.A27 2606309912 -
45/12 - KEY CHUCK dia 1-10 MM.1/2 BSD-1608571068.A9 1608571068 £18.37 £22.04
45/23 - COUNTERSUNK-HEAD SCREW M6x31 MM BSD-2603421209.A48 2603421209 £1.32 £1.58
47 - SHIM BSD-1609340053.A3 1609340053 -
650 - FAST CHARGER USA 120/7.2-24V. 1h BSD-2607224431.A74 2607224431 £135.25 £162.30
650 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN. BSD-2607224701.A185 2607224701 £88.07 £105.68
650 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A139 2607224425 £88.07 £105.68
650 - FAST CHARGER GB 230/7.2-14.4V. 30 MIN. BSD-2607224703.A109 2607224703 £116.15 £139.38
650 - FAST CHARGER GB 230/7.2-24V. 1h BSD-2607224427.A192 2607224427 £103.14 £123.77
650 - FAST CHARGER AUS 240/7.2-14.4V. 1h BSD-2607224443.A77 2607224443 -
802 - DC MOTOR 9.6V BSD-2607022902.A28 2607022902 -
803 - SLIDE-IN ACCU PACKAGE 9.6V.1.4Ah. NiCd BSD-2607335203.A8 2607335203 -
899 - CORDLESS SCREWDRIVER BSD-0601921827.A1 0601921827 -
