Bosch SDI 120 / 3601J16527 / EU 12 Volt Spare Parts

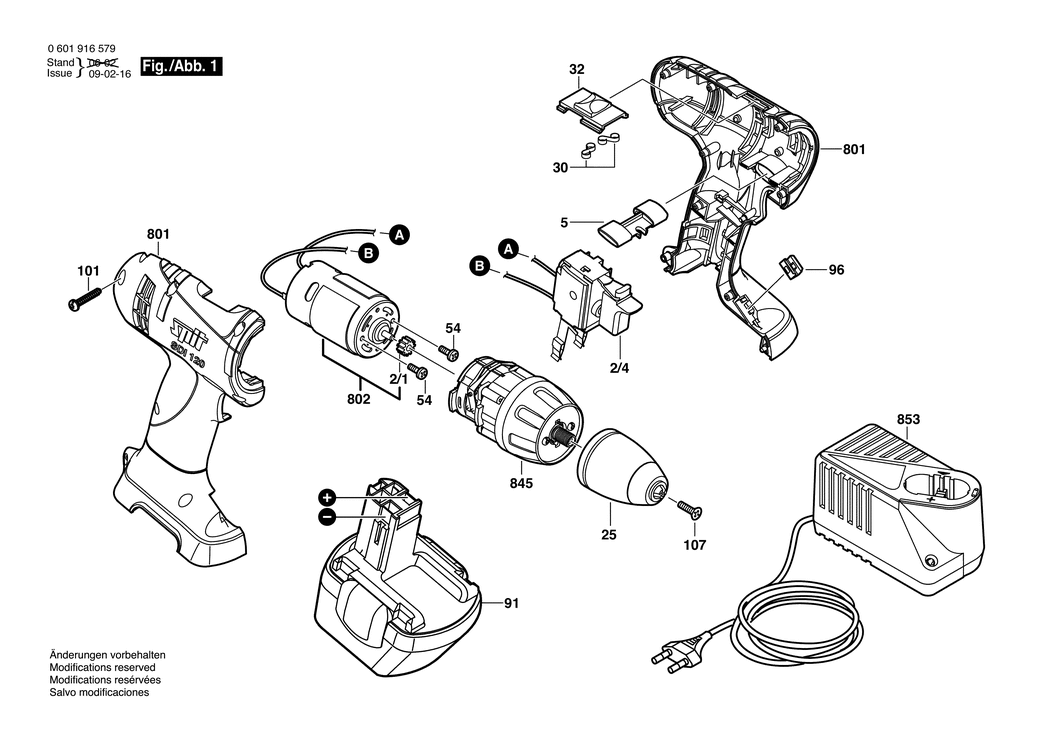

An exploded drawing and listing for the Bosch SDI 120 / 3601J16527 / EU 12 Volt

	Ex VAT	Inc VAT
2/1 - PINION BSD-2606316226.A14 2606316226	£5.87	£7.04
2/4 - ON-OFF SWITCH BSD-2607200481.A1 2607200481	£36.63	£43.96
5 - ADJUSTING SLIDE BSD-2601099130.A5 2601099130	£2.52	£3.02
25 - KEYLESS CHUCK BSD-2608572201.A7 2608572201	£41.62	£49.95
30 - LEAF SPRING BSD-2604690022.A1 2604690022	£1.75	£2.10
32 - ADJUSTING SLIDE BSD-2601099131.A4 2601099131	£1.32	£1.58
54 - TORX SH CAP SCREW M4x8-4.8-Z BSD-2603414049.A4 2603414049	-
91 - SLIDE-IN ACCU PACKAGE 12V.1.5Ah BSD-2607335653.A3 2607335653	£58.76	£70.51
96 - SPRING ELEMENT BSD-2604690035.A17 2604690035	£1.75	£2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A347 2603490018	£1.75	£2.10
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A301 2609110721	£2.16	£2.59
801 - HOUSING SECTION BSD-2605105953.A2 2605105953	£27.31	£32.77
802 - DC MOTOR 12-14.4V BSD-2607022869.A8 2607022869	£54.42	£65.30
845 - PLANETARY GEAR TRAIN BSD-2606200942.A1 2606200942	£41.62	£49.95
853 - FAST CHARGER EU 230/7.2-24V.1h BSD-2607225401.A2 2607225401	£103.14	£123.77
853 - FAST CHARGER GB 230/7.2-14.4V.1h BSD-2607225005.A0 2607225005	-

Attribute Name	Value
Brand	Bosch
