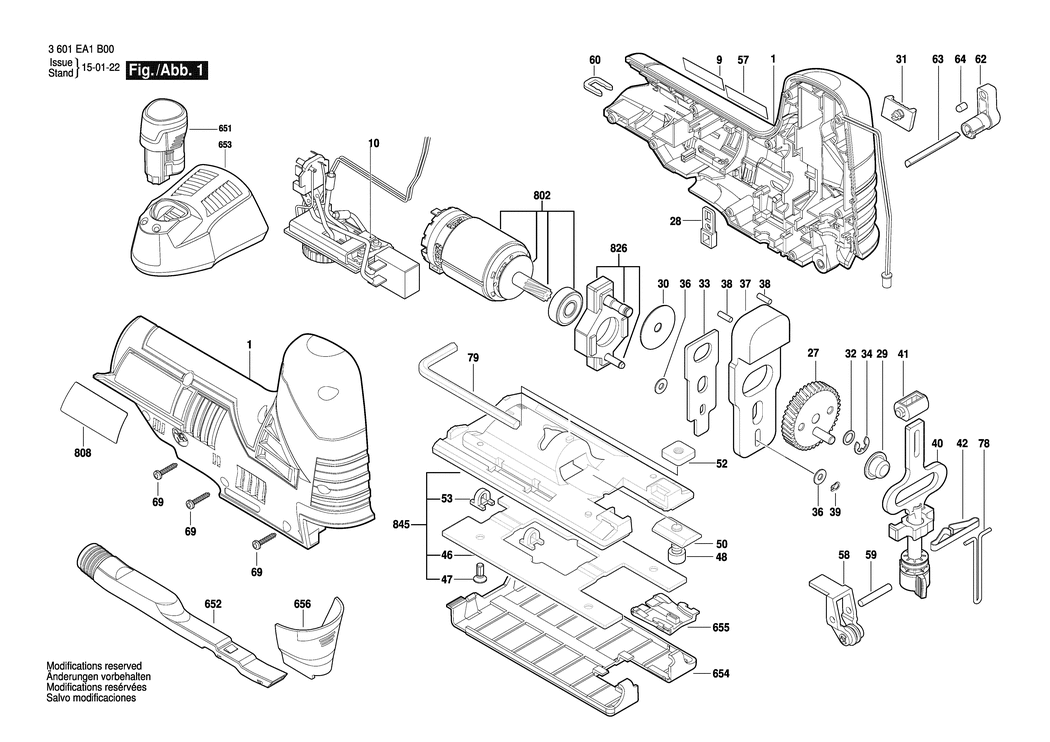

An exploded drawing and listing for the Bosch BACJS 12 V / 3601EA1B01 / EU 12 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-1619P12495.A0 1619P12495 £31.64 £37.97
9 - MANUFACTURER'S NAMEPLATE BACJS 12 V BSD-1619P14788.A0 1619P14788 -
10 - ELECTRONICS MODULE BSD-1619P12499.A1 1619P12499 £68.42 £82.10
27 - ECCENTRIC COG WHEEL BSD-1619P10569.A3 1619P10569 £12.04 £14.45
28 - SWITCH SLIDE BSD-1619P10570.A4 1619P10570 £1.75 £2.10
29 - NEEDLE BEARING BSD-2600914022.A41 2600914022 £6.52 £7.83
30 - SHIM BSD-1619P01396.A4 1619P01396 £1.75 £2.10
31 - SWITCH BUTTON BSD-1619P12501.A0 1619P12501 £8.67 £10.41
32 - SHIM 0.5 MM BSD-2600100568.A303 2600100568 £1.75 £2.10
33 - FORK LEVER BSD-1619P10573.A7 1619P10573 £3.72 £4.47
34 - LOCKING WASHER 5 DIN 6799 BSD-2916080908.A148 2916080908 £1.75 £2.10
36 - SHIM 0.5 MM BSD-2600100588.A38 2600100588 £1.75 £2.10
37 - COUNTERWEIGHT BSD-1619P10574.A0 1619P10574 £13.12 £15.75
38 - BEARING BOLT BSD-2603201020.A77 2603201020 £1.75 £2.10
39 - SPRING RETAINING RING DIN 471-4x0.4-FSt BSD-2916640001.A12 2916640001 £1.75 £2.10
40 - LIFTING ROD BSD-2600780190.A6 2600780190 £59.53 £71.44
41 - BEARING BLOCK BSD-1619X00399.A10 1619X00399 £1.75 £2.10
42 - COILED SPRING BSD-1619X08384.A3 1619X08384 £2.16 £2.59
46 - WORK BOARD BSD-1619P10576.A7 1619P10576 £6.52 £7.83
47 - THREAD-FORMING TAP. SCREW BSD-1619P11427.A3 1619P11427 £1.75 £2.10
48 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A101 2910141197 £1.75 £2.10
50 - PROFILE BEADING BSD-2601030019.A88 2601030019 £2.61 £3.13
52 - FIXING PLATE BSD-1619P07163.A20 1619P07163 £1.75 £2.10
53 - KEY HOLDER BSD-1619P10589.A3 1619P10589 £1.75 £2.10
57 - STICKER BSD-1619P12502.A1 1619P12502 £2.61 £3.13
58 - ROLLER LEVER BSD-1619P10578.A0 1619P10578 £12.04 £14.45
59 - STRAIGHT PIN DIN 6325-4M6x24 BSD-2917530101.A32 2917530101 £2.80 £3.36
60 - CLIP BSD-1619P08646.A14 1619P08646 £1.75 £2.10
62 - CHANGE-OVER SWITCH BSD-1619P12537.A0 1619P12537 £10.10 £12.12
63 - CONTROL SHAFT BSD-1619P10581.A2 1619P10581 £5.58 £6.70
64 - RATCHET CAP BSD-2600590006.A1057 2600590006 £1.75 £2.10
69 - TORX OVAL-HEAD SCREW BSD-1619P06252.A14 1619P06252 £1.75 £2.10
78 - PROTECTING COVER BSD-1619P10582.A5 1619P10582 £2.16 £2.59
79 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A523 1907950006 £4.26 £5.11
91 - BATTERY PACK BBP 12 V 2.0 Ah 343769 BSD-1607A350A6.A8 1607A350A6 £81.81 £98.17
91 - BATTERY PACK BBP 12 V 4.0 Ah 343769 BSD-1607A350A7.A0 1607A350A7 £135.25 £162.30
652 - SUCTION NOZZLE BSD-1619P10585.A6 1619P10585 £7.36 £8.83
653 - FAST CHARGER BBC 12 V 343767 BSD-2607226303.A6 2607226303 £54.42 £65.30
654 - PAD BSD-1619P07958.A5 1619P07958 £3.72 £4.47
655 - SPLINTERING PROTECTOR BSD-2601016093.A24 2601016093 £4.26 £5.11
656 - COVERING HOOD BSD-1619P10583.A1 1619P10583 £2.16 £2.59
802 - DC MOTOR BSD-1619P10586.A1 1619P10586 £33.74 £40.49
808 - NAMEPLATE BSD-1619P14794.A0 1619P14794 -
826 - BEARING BRACKET BSD-1619P10587.A6 1619P10587 £10.10 £12.12
845 - BASE PLATE BSD-1619P12256.A3 1619P12256 £21.68 £26.01
