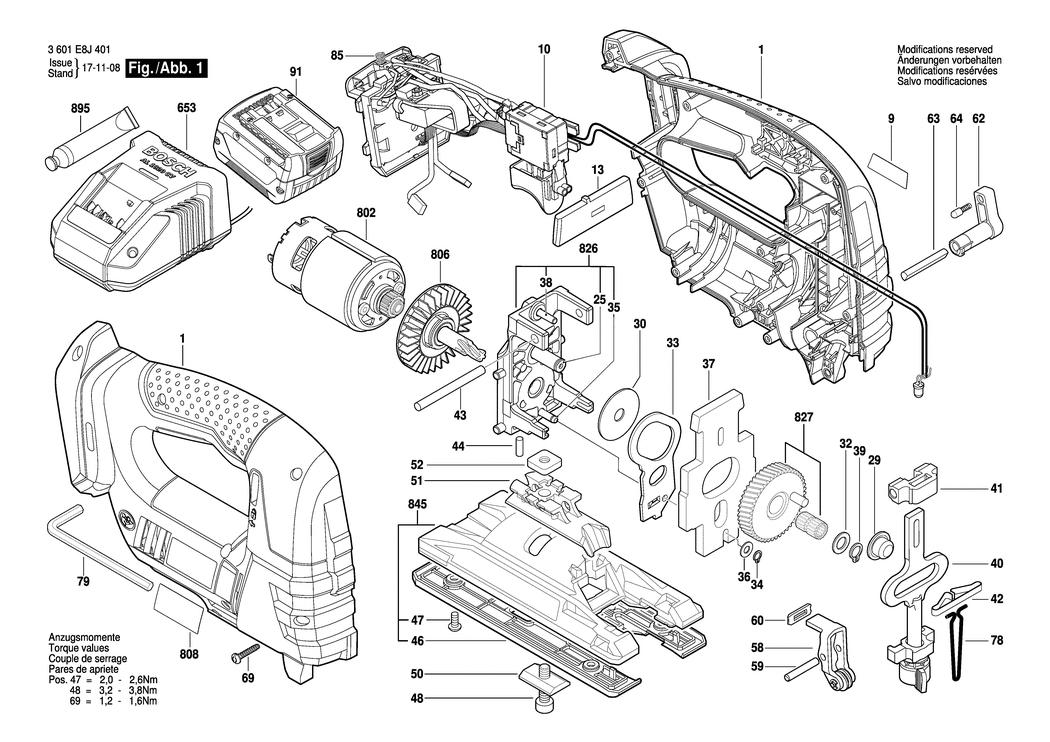

1 - HOUSING SECTION
BSD-2605105177.A0
2605105177
|
£45.67
|
£54.80
|
|
|
9 - MANUFACTURER'S NAMEPLATE GST 14.4V-LI
BSD-2601111559.A1
2601111559
|
£2.33
|
£2.80
|
|
|
10 - ELECTRONICS MODULE
BSD-1607233517.A0
1607233517
|
£88.07
|
£105.68
|
|
|
13 - ADJUSTING SLIDE
BSD-2607200686.A0
2607200686
|
£2.16
|
£2.59
|
|
|
25 - BEARING BOLT
BSD-2603105080.A22
2603105080
|
£2.61
|
£3.13
|
|
|
29 - NEEDLE BEARING
BSD-2600914022.A6
2600914022
|
£6.52
|
£7.83
|
|
|
30 - SHIM 0.5 MM
BSD-2600101048.A40
2600101048
|
£1.75
|
£2.10
|
|
|
32 - SHIM 0.5 MM
BSD-2600101077.A37
2600101077
|
£1.75
|
£2.10
|
|
|
33 - FORK LEVER
BSD-2601923012.A26
2601923012
|
£4.26
|
£5.11
|
|
|
34 - SPRING RETAINING RING DIN 471-4x0.4-FSt
BSD-2916640001.A17
2916640001
|
£1.75
|
£2.10
|
|
|
35 - BEARING BOLT
BSD-2603105091.A13
2603105091
|
£2.61
|
£3.13
|
|
|
36 - SHIM 0.5 MM
BSD-2600100588.A28
2600100588
|
£1.75
|
£2.10
|
|
|
37 - COUNTERWEIGHT
BSD-2601098098.A15
2601098098
|
£10.10
|
£12.12
|
|
|
38 - NEEDLE ROLLER
BSD-2603201055.A6
2603201055
|
£1.75
|
£2.10
|
|
|
39 - SPRING RETAINING RING 8x0.8 N31A MR7
BSD-2916640905.A55
2916640905
|
£1.75
|
£2.10
|
|
|
40 - LIFTING ROD
BSD-2600780173.A9
2600780173
|
£37.27
|
£44.72
|
|
|
41 - PLAIN BEARING
BSD-2605801038.A19
2605801038
|
£5.30
|
£6.36
|
|
|
42 - COMPRESSION SPRING
BSD-160461201E.A43
160461201E
|
£1.75
|
£2.10
|
|
|
43 - NEEDLE ROLLER
BSD-2603201089.A26
2603201089
|
£5.58
|
£6.70
|
|
|
44 - BEARING BOLT
BSD-2603105143.A5
2603105143
|
£1.75
|
£2.10
|
|
|
46 - WORK BOARD
BSD-2601099225.A1
2601099225
|
£8.67
|
£10.41
|
|
|
47 - THREAD-FORMING TAP. SCREW M4x8
BSD-2603410048.A302
2603410048
|
£1.75
|
£2.10
|
|
|
48 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x25-8.8
BSD-2910141203.A130
2910141203
|
£1.75
|
£2.10
|
|
|
50 - PROFILE BEADING
BSD-2601030019.A105
2601030019
|
£2.61
|
£3.13
|
|
|
51 - LOCATION PIECE
BSD-2605500207.A0
2605500207
|
£12.04
|
£14.45
|
|
|
52 - FIXING PLATE
BSD-2600040004.A20
2600040004
|
£2.80
|
£3.36
|
|
|
58 - ROLLER LEVER
BSD-2601321077.A0
2601321077
|
£12.04
|
£14.45
|
|
|
59 - STRAIGHT PIN
BSD-2609002725.A58
2609002725
|
£1.75
|
£2.10
|
|
|
60 - SEALING PLATE
BSD-2601015077.A37
2601015077
|
£1.75
|
£2.10
|
|
|
62 - CHANGE-OVER SWITCH
BSD-2601015113.A7
2601015113
|
£2.16
|
£2.59
|
|
|
63 - CONTROL SHAFT
BSD-2603124155.A5
2603124155
|
£1.75
|
£2.10
|
|
|
64 - RATCHET CAP
BSD-2600590006.A1031
2600590006
|
£1.75
|
£2.10
|
|
|
69 - TORX FLAT-HEAD SCREW 3x16
BSD-2609110201.A5
2609110201
|
£2.16
|
£2.59
|
|
|
78 - PROTECTING COVER
BSD-2603105136.A4
2603105136
|
£2.61
|
£3.13
|
|
|
79 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A526
1907950006
|
£4.26
|
£5.11
|
|
|
85 - COMPRESSION SPRING
BSD-2604690055.A0
2604690055
|
£1.75
|
£2.10
|
|
|
91 - SLIDE-IN ACCU PACKAGE BBS-MR XL-PACK 14.4V. LI
BSD-2607336223.A7
2607336223
|
£134.16
|
£160.99
|
|
|
653 - CHARGER EU 230/14.4-18V. 30 40 S
BSD-2607225321.A105
2607225321
|
£51.22
|
£61.47
|
|
|
653 - CHARGER GB 230/10.8-18V. 30 42 S
BSD-2607225323.A7
2607225323
|
£58.76
|
£70.51
|
|
|
653 - FAST CHARGER ROK 220/10.8-18V. 30 MIN
BSD-2607225333.A15
2607225333
|
£120.11
|
£144.13
|
|
|
802 - DC MOTOR 14.4V
BSD-2607022830.A1
2607022830
|
£81.81
|
£98.17
|
|
|
806 - COUPLING HALF
BSD-2606445016.A6
2606445016
|
£16.41
|
£19.69
|
|
|
808 - NAMEPLATE
BSD-160111A1R6.A0
160111A1R6
|
-
|
|
|
|
826 - BEARING BRACKET
BSD-2605807946.A4
2605807946
|
£23.86
|
£28.63
|
|
|
827 - ECCENTRIC COG WHEEL
BSD-2609001931.A7
2609001931
|
£21.68
|
£26.01
|
|
|
845 - BASE PLATE
BSD-2601016906.A1
2601016906
|
£27.23
|
£32.68
|
|
|
895 - GREASE TUBE Albida
BSD-3605430003.A2
3605430003
|
£27.23
|
£32.68
|
|
