Bosch GRA 53 / 3600J11002 / EU 230 Volt Spare Parts

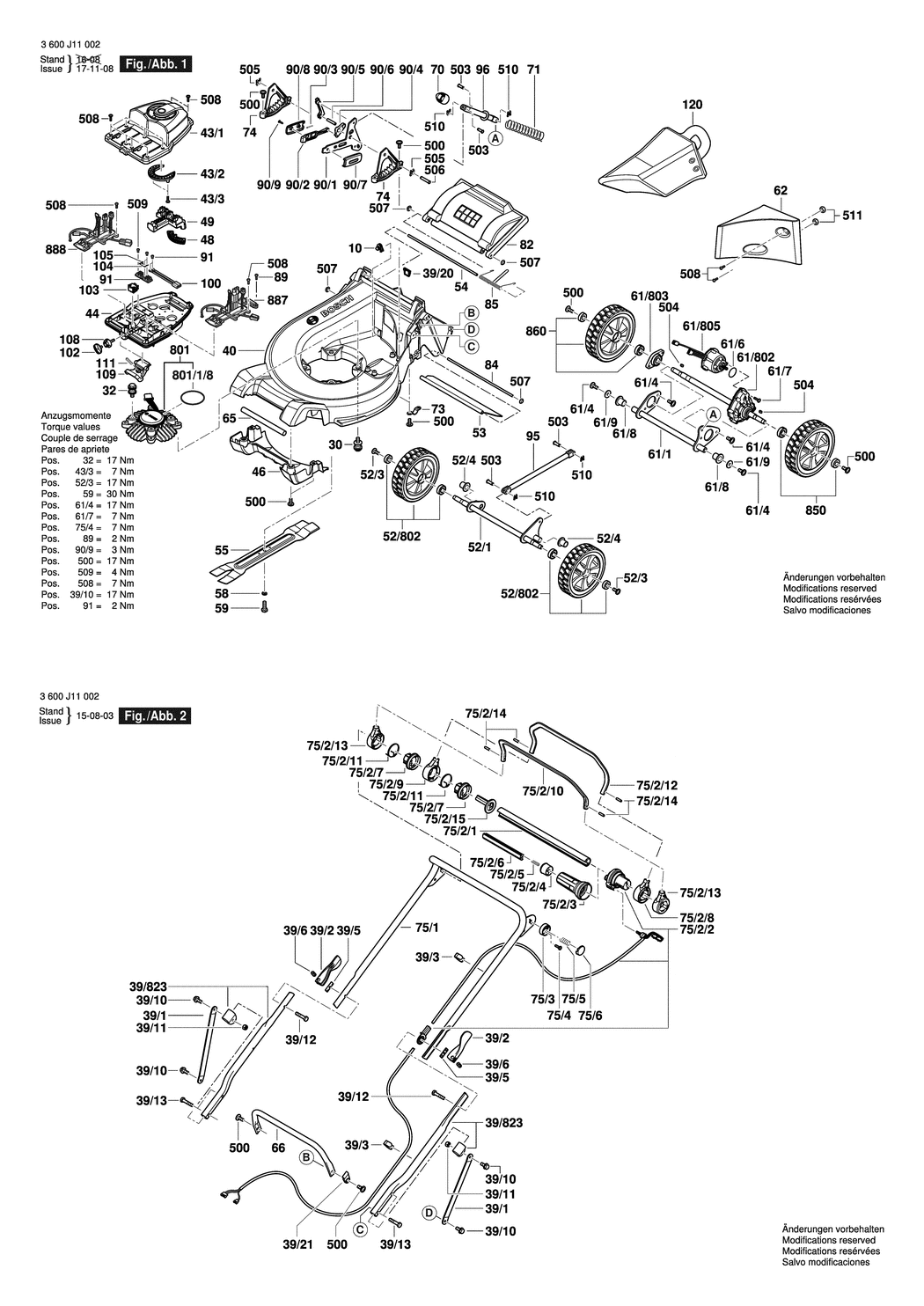

An exploded drawing and listing for the Bosch GRA 53 / 3600J11002 / EU 230 Volt

	Ex VAT	Inc VAT
10 - GROMMET BSD-F016L76343.A5 F016L76343	£1.95	£2.34
30 - DAMPING BUSHING BSD-F016L76018.A2 F016L76018	£1.75	£2.10
32 - BOLT M10x20 BSD-F016L76017.A5 F016L76017	£2.61	£3.13
39/1 - ANGLE SUPPORT BSD-F016L76263.A4 F016L76263	£16.74	£20.09
39/2 - ADJUSTING CAM BSD-F016L76292.A2 F016L76292	£14.91	£17.89
39/3 - CABLE CLIP BSD-F016L76160.A7 F016L76160	£2.61	£3.13
39/5 - INSERT BSD-F016L76189.A1 F016L76189	£24.45	£29.34
39/6 - PIVOT BSD-F016L76159.A1 F016L76159	£3.34	£4.01
39/10 - HEX SCREW BSD-F016L76294.A7 F016L76294	£1.75	£2.10
39/11 - LOCK NUT BSD-F016L76293.A0 F016L76293	£1.75	£2.10
39/12 - BOLT BSD-F016L76158.A7 F016L76158	£1.75	£2.10
39/13 - BOLT BSD-F016L76990.A2 F016L76990	£5.30	£6.36
39/20 - CLAMP BSD-F016L76344.A3 F016L76344	£1.75	£2.10
39/21 - CABLE GUIDE BSD-F016L76345.A5 F016L76345	£1.75	£2.10
39/823 - HANDLE BSD-F016104597.A0 F016104597	£46.82	£56.18
40 - CHASSIS BSD-F016L76019.A1 F016L76019	£458.51	£550.21
43/1 - MOTOR COVER BSD-F016L76025.A0 F016L76025	£24.45	£29.34
43/2 - AXIAL FLOW FAN BSD-F016L76273.A4 F016L76273	£21.52	£25.83
43/3 - SCREW M5x20 BSD-F016L76058.A33 F016L76058	£1.75	£2.10
44 - HOUSING BASE BSD-F016L76274.A4 F016L76274	£68.42	£82.10
46 - CLOSING PLATE BSD-F016L76470.A0 F016L76470	£46.82	£56.18
48 - SEALING RUBBER BSD-F016L76186.A6 F016L76186	£2.80	£3.36
49 - CABLE BRACKET BSD-F016L76291.A4 F016L76291	£4.26	£5.11
52/1 - AXLE BSD-F016L76280.A4 F016L76280	£72.18	£86.62
52/3 - SCREW M8x20 BSD-F016L76173.A20 F016L76173	£1.75	£2.10
52/4 - BUSHING BSD-F016L76044.A4 F016L76044	£1.75	£2.10
52/802 - WHEEL BSD-F016104466.A2 F016104466	£63.50	£76.20
53 - FLAP BSD-F016L76089.A2 F016L76089	£16.74	£20.09
54 - INFEED SPINDLE BSD-F016L76090.A6 F016L76090	£2.80	£3.36
55 - CUTTER BLADE 53 cm BSD-F016L76421.A0 F016L76421	£59.53	£71.44
58 - SPRING WASHER 1/2 BSD-F016L66173.A59 F016L66173	£1.75	£2.10
59 - BOLT M10x30 BSD-F016L66141.A43 F016L66141	£2.61	£3.13
61/1 - AXLE BSD-F016L76281.A4 F016L76281	£68.42	£82.10
61/4 - SCREW M8x20 BSD-F016L76173.A21 F016L76173	£1.75	£2.10
61/6 - O-RING BSD-F016L76082.A2 F016L76082	£1.75	£2.10
61/7 - SCREW M5x20 BSD-F016L76058.A32 F016L76058	£1.75	£2.10
61/8 - BUSHING BSD-F016L76044.A5 F016L76044	£1.75	£2.10
61/9 - WASHER BSD-F016L76332.A2 F016L76332	£1.75	£2.10
61/802 - DRIVE UNIT BSD-F016104472.A4 F016104472	£179.37	£215.24
61/803 - BEARING HOUSING BSD-F016104560.A4 F016104560	£21.52	£25.83
61/805 - DC MOTOR BSD-F016104473.A4 F016104473	£243.45	£292.14
62 - GUIDE PIECE BSD-F016L76488.A0 F016L76488	£54.42	£65.30
65 - CARRYING HANDLE BSD-F016L76279.A4 F016L76279	£11.30	£13.56
66 - HANDLE BSD-F016L76265.A4 F016L76265	£40.80	£48.96
70 - SLEEVE BSD-F016L76178.A2 F016L76178	£1.95	£2.34
71 - SPRING BSD-F016L76087.A2 F016L76087	£4.26	£5.11
73 - CLAMPING PIECE BSD-F016L76088.A6 F016L76088	£1.75	£2.10
74 - BASE-INSERT BSD-F016L76272.A4 F016L76272	£54.42	£65.30
75/1 - HANDLE TOP ASSEMBLY BSD-F016L76269.A0 F016L76269	£68.42	£82.10
75/2/1 - THROTTLE CARRIER BSD-F016L76114.A1 F016L76114	£24.45	£29.34
75/2/2 - SWITCHING UNIT BSD-F016L76115.A4 F016L76115	£135.25	£162.30
75/2/3 - CONTROL THROTTLE BSD-F016L76128.A3 F016L76128	£9.49	£11.39
75/2/4 - BUSHING BSD-F016L76129.A2 F016L76129	£2.80	£3.36
75/2/5 - SPRING BSD-F016L76130.A4 F016L76130	£1.75	£2.10
75/2/6 - BLANK COVER BSD-F016L76131.A2 F016L76131	£7.36	£8.83
75/2/7 - BUSHING BSD-F016L76132.A4 F016L76132	£4.26	£5.11
75/2/8 - PIVOT BSD-F016L76135.A2 F016L76135	£3.80	£4.56
75/2/9 - PIVOT BSD-F016L76136.A3 F016L76136	£3.34	£4.01
75/2/10 - CONTROL BAR BSD-F016L76268.A3 F016L76268	£30.28	£36.33
75/2/11 - SPRING BSD-F016L76138.A2 F016L76138	£6.52	£7.83
75/2/12 - CONTROL BAR BSD-F016L76267.A5 F016L76267	£36.62	£43.95
75/2/13 - PIVOT BSD-F016L76141.A6 F016L76141	£3.80	£4.56
75/2/14 - SCREW M5x20 BSD-F016L76187.A2 F016L76187	£1.75	£2.10
75/2/15 - STOP BUSHING BSD-F016L68665.A3 F016L68665	£1.95	£2.34
75/3 - KNOB SLEEVE BSD-F016L76143.A2 F016L76143	£1.95	£2.34
75/4 - SCREW M5x20 BSD-F016L76058.A36 F016L76058	£1.75	£2.10
75/5 - SPRING BSD-F016L76144.A6 F016L76144	£1.75	£2.10
75/6 - SWITCH BUTTON BSD-F016L76145.A2 F016L76145	£11.30	£13.56
82 - FLAP GUARD BSD-F016L76105.A2 F016L76105	£21.52	£25.83
84 - INFEED SPINDLE BSD-F016L76106.A1 F016L76106	£2.33	£2.80
85 - SPRING BSD-F016L76107.A7 F016L76107	£2.80	£3.36
89 - SCREW M3x10 BSD-F016L76402.A7 F016L76402	£1.75	£2.10
90/1 - ADJUSTING LEVER BSD-F016L76271.A5 F016L76271	£23.86	£28.63
90/2 - BUTTON BSD-F016L76094.A6 F016L76094	£1.95	£2.34
90/3 - SPRING BSD-F016L76095.A2 F016L76095	£3.72	£4.47
90/4 - LINKAGE BSD-F016L76096.A6 F016L76096	£2.61	£3.13
90/5 - SLIDER BSD-F016L76097.A2 F016L76097	£2.61	£3.13
90/6 - LOCKING PIN BSD-F016L76098.A6 F016L76098	£3.72	£4.47
90/7 - PALM GRIP BSD-F016L76102.A4 F016L76102	£5.30	£6.36
90/8 - PALM GRIP BSD-F016L76190.A7 F016L76190	£5.30	£6.36
90/9 - SCREW M5x20 BSD-F016L76187.A3 F016L76187	£1.75	£2.10
91 - DIODE MODULE BSD-F016L76166.A1 F016L76166	£33.45	£40.14
95 - LINKAGE BSD-F016L76270.A1 F016L76270	£31.64	£37.97
96 - LINKAGE BSD-F016L76277.A6 F016L76277	£31.64	£37.97
100 - CONNECTING CABLE BSD-F016L76086.A6 F016L76086	£7.36	£8.83
102 - SWITCH KEY BSD-F016L76146.A6 F016L76146	£3.80	£4.56
103 - SWITCH BSD-F016L66928.A7 F016L66928	£8.49	£10.19
104 - COUPLING PLATE BSD-F016L76185.A2 F016L76185	£1.95	£2.34
105 - COUPLING PLATE BSD-F016L76473.A4 F016L76473	£1.95	£2.34
108 - CAM BSD-F016L76180.A6 F016L76180	£1.95	£2.34
109 - TRIGGER BSD-F016L76027.A2 F016L76027	£2.61	£3.13
111 - SPRING BSD-F016L76028.A6 F016L76028	£1.75	£2.10
120 - PLUG BSD-F016L76854.A1 F016L76854	£27.23	£32.68
500 - SCREW M8x20 BSD-F016L76173.A18 F016L76173	£1.75	£2.10
503 - CLEVIS BSD-F016L76100.A7 F016L76100	£8.49	£10.19
504 - KEY BSD-F016L76091.A2 F016L76091	£2.61	£3.13
505 - CLIP BSD-F016L76101.A1 F016L76101	£2.61	£3.13
506 - CLEVIS BSD-F016L76099.A1 F016L76099	£18.96	£22.75
507 - SECURING CAP dia8 MM BSD-F016T48990.A37 F016T48990	£1.75	£2.10
508 - SCREW M5x20 BSD-F016L76058.A35 F016L76058	£1.75	£2.10
509 - SCREW BSD-F016L76188.A6 F016L76188	£1.75	£2.10
510 - RETAINING CLIP BSD-F016L68664.A5 F016L68664	£1.95	£2.34
511 - HEX NUT BSD-2609003491.A7 2609003491	£1.75	£2.10
801 - DC MOTOR 36V BSD-F016104471.A5 F016104471	£357.27	£428.72
801/1/8 - O-RING BSD-F016L76214.A1 F016L76214	£1.75	£2.10
808 - NAMEPLATE BSD-F016104923.A1 F016104923	£2.61	£3.13
850 - WHEEL BSD-F016104467.A7 F016104467	£72.18	£86.62
860 - WHEEL BSD-F016104468.A1 F016104468	£72.18	£86.62
887 - DRIVE ELECTRONICS BSD-F016104469.A4 F016104469	£218.41	£262.09
888 - DRIVE ELECTRONICS BSD-F016104470.A1 F016104470	£195.26	£234.31
