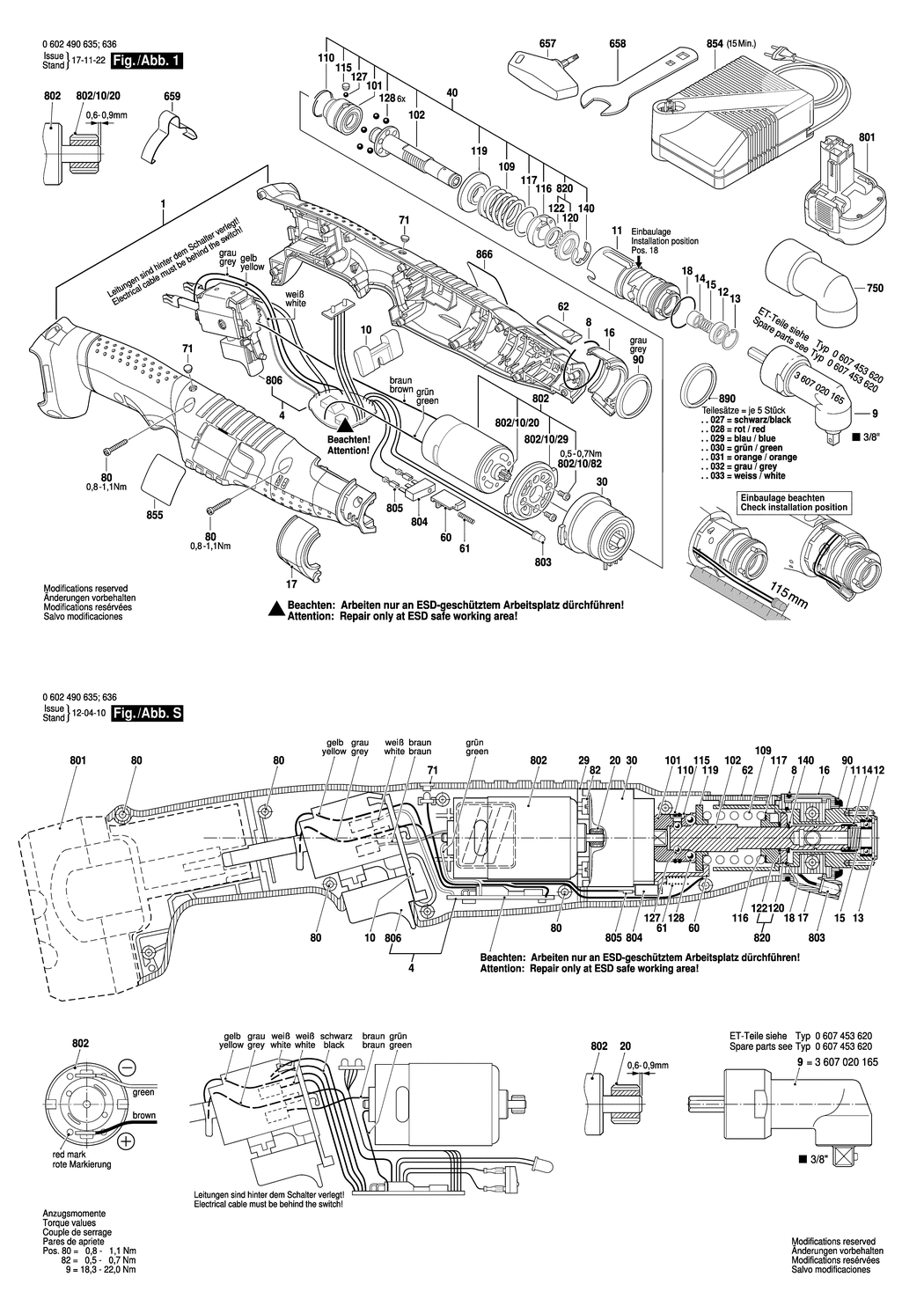

An exploded drawing and listing for the Bosch ANGLE EXACT 15 / 0602490636 / --- 9.6 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-3605105017.A1 3605105017 £72.18 £86.62
4 - ELECTRONIC ASSEMBLY BSD-3607200108.A14 3607200108 £410.78 £492.94
8 - RETAINING RING dia36.6xdia1.5 BSD-1614601016.A34 1614601016 £2.80 £3.36
9 - ANGLE SCREWDRIVER HEAD 3/8 BSD-3607020165.A14 3607020165 £798.41 £958.09
10 - SWITCH SLIDE BSD-3601099003.A94 3601099003 £2.80 £3.36
11 - ANGLE FLANGE BSD-3605700165.A21 3605700165 £59.53 £71.44
12 - GROOVE BALL BEARING BSD-1280905004.A74 1280905004 £31.64 £37.97
13 - SPRING RETAINING RING 16x1 MM. DIN 472 BSD-2916660003.A18 2916660003 £1.75 £2.10
14 - SLEEVE BSD-3600423004.A1 3600423004 £5.58 £6.70
15 - COMPRESSION SPRING BSD-3604611037.A1 3604611037 £5.30 £6.36
16 - LED-HOLDER BSD-3605105019.A15 3605105019 £11.30 £13.56
17 - LED-HOLDER BSD-3605105020.A28 3605105020 £11.30 £13.56
18 - O-RING 20.0x1.0 MM BSD-3600210012.A16 3600210012 £2.80 £3.36
30 - PLANETARY GEAR TRAIN BSD-3607030490.A19 3607030490 £48.38 £58.06
40 - ASSEMBLY KIT BSD-3607031567.A3 3607031567 £218.41 £262.09
60 - SWITCHING ELEMENT BSD-3601923022.A17 3601923022 £5.30 £6.36
61 - COMPRESSION SPRING BSD-3604611022.A37 3604611022 £3.72 £4.47
62 - PUSHER BSD-3601923029.A17 3601923029 £5.30 £6.36
71 - LIGHT CONDUCTOR BSD-3604460132.A64 3604460132 £2.80 £3.36
80 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A829 2603490018 £1.75 £2.10
90 - RING BSD-3600106020.A0 3600106020 £4.26 £5.11
101 - CLUTCH ELEMENT BSD-3606445043.A171 3606445043 £102.57 £123.08
102 - OUTPUT SHAFT BSD-3603124034.A33 3603124034 £51.22 £61.47
109 - COMPRESSION SPRING BSD-3604619020.A7 3604619020 £5.58 £6.70
110 - RETAINING RING BSD-3600224053.A20 3600224053 £1.75 £2.10
115 - SEALING PLATE BSD-3601023011.A86 3601023011 £2.61 £3.13
116 - SETTING RING BSD-3600134016.A17 3600134016 £59.53 £71.44
117 - PLAIN WASHER 0.5 MM BSD-1600101023.A6 1600101023 £1.75 £2.10
119 - SUPPORT DISC BSD-3600190036.A9 3600190036 £8.67 £10.41
120 - CATCH DISK BSD-3603344046.A54 3603344046 £33.74 £40.49
122 - SHIM WASHER BSD-3600101052.A35 3600101052 £8.67 £10.41
127 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A229 1903230006 £2.16 £2.59
128 - BALL 4.5 MM III DIN 5401-ST BSD-1903230008.A90 1903230008 £1.75 £2.10
140 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A67 2916080012 £1.75 £2.10
657 - SCREWDRIVER BSD-3607950027.A131 3607950027 £14.91 £17.89
658 - SINGLE-HEAD ENG. WRENCH BSD-3601376007.A28 3601376007 £10.10 £12.12
659 - SUSPENSION LOOP BSD-3601923024.A117 3601923024 £11.30 £13.56
750 - PROTECTIVE CAP BSD-3605500171.A10 3605500171 £13.12 £15.75
801 - SLIDE-IN ACCU PACKAGE 9.6V.2.6Ah.NiMh BSD-2607335681.A12 2607335681 £116.15 £139.38
802 - DC MOTOR BSD-3607031734.A4 3607031734 £59.53 £71.44
802/10/20 - PINION BSD-3606328018.A35 3606328018 £4.26 £5.11
802/10/29 - INTERMEDIATE FLANGE BSD-2605719011.A2 2605719011 £3.72 £4.47
802/10/82 - TORX SH CAP SCREW M3x5-8.8-Z BSD-2603414048.A6 2603414048 £1.75 £2.10
803 - LIGHT-EMITTING-DIODE BSD-3609202979.A11 3609202979 £23.86 £28.63
804 - MICROSWITCH BSD-3609202762.A53 3609202762 £27.23 £32.68
805 - PLUG SET BSD-3609202766.A38 3609202766 £6.52 £7.83
806 - SWITCH BSD-3607200083.A18 3607200083 £59.53 £71.44
820 - CATCH DISK BSD-3603344047.A21 3603344047 £23.86 £28.63
854 - FAST CHARGER EU 230/7.2-24V. 30 MIN. BSD-2607225027.A138 2607225027 £120.11 £144.13
854 - FAST CHARGER GB 230/7.2-24V. 30 MIN. BSD-2607225029.A34 2607225029 £88.07 £105.68
854 - FAST CHARGER AUS 240/7.2-24V. 30 MIN. BSD-2607225031.A113 2607225031 £98.11 £117.73
854 - FAST CHARGER USA 120/7.2-24V. 30 MIN. BSD-2607225033.A33 2607225033 -
854 - FAST CHARGER SAM 115/7.2-24V. 15 MIN. BSD-2607225035.A95 2607225035 -
854 - FAST CHARGER J 100/7.2-24V. 1h BSD-2607224435.A82 2607224435 £120.11 £144.13
854 - FAST CHARGER ROK 220/7.2-24V. 30 MIN. BSD-2607225039.A33 2607225039 £80.61 £96.73
855 - NAMEPLATE BSD-16070312AE.A2 16070312AE -
866 - MANUFACTURER'S NAMEPLATE BSD-3601119309.A1 3601119309 £11.30 £13.56
890 - PARTS SET BSD-3600106027.A67 3600106027 £21.68 £26.01
890 - PARTS SET BSD-3600106028.A1 3600106028 £21.52 £25.83
890 - PARTS SET BSD-3600106029.A67 3600106029 £21.68 £26.01
890 - PARTS SET BSD-3600106030.A1 3600106030 £21.68 £26.01
890 - PARTS SET BSD-3600106031.A67 3600106031 £23.86 £28.63
890 - PARTS SET BSD-3600106032.A1 3600106032 £21.68 £26.01
890 - PARTS SET BSD-3600106033.A65 3600106033 £21.52 £25.83
