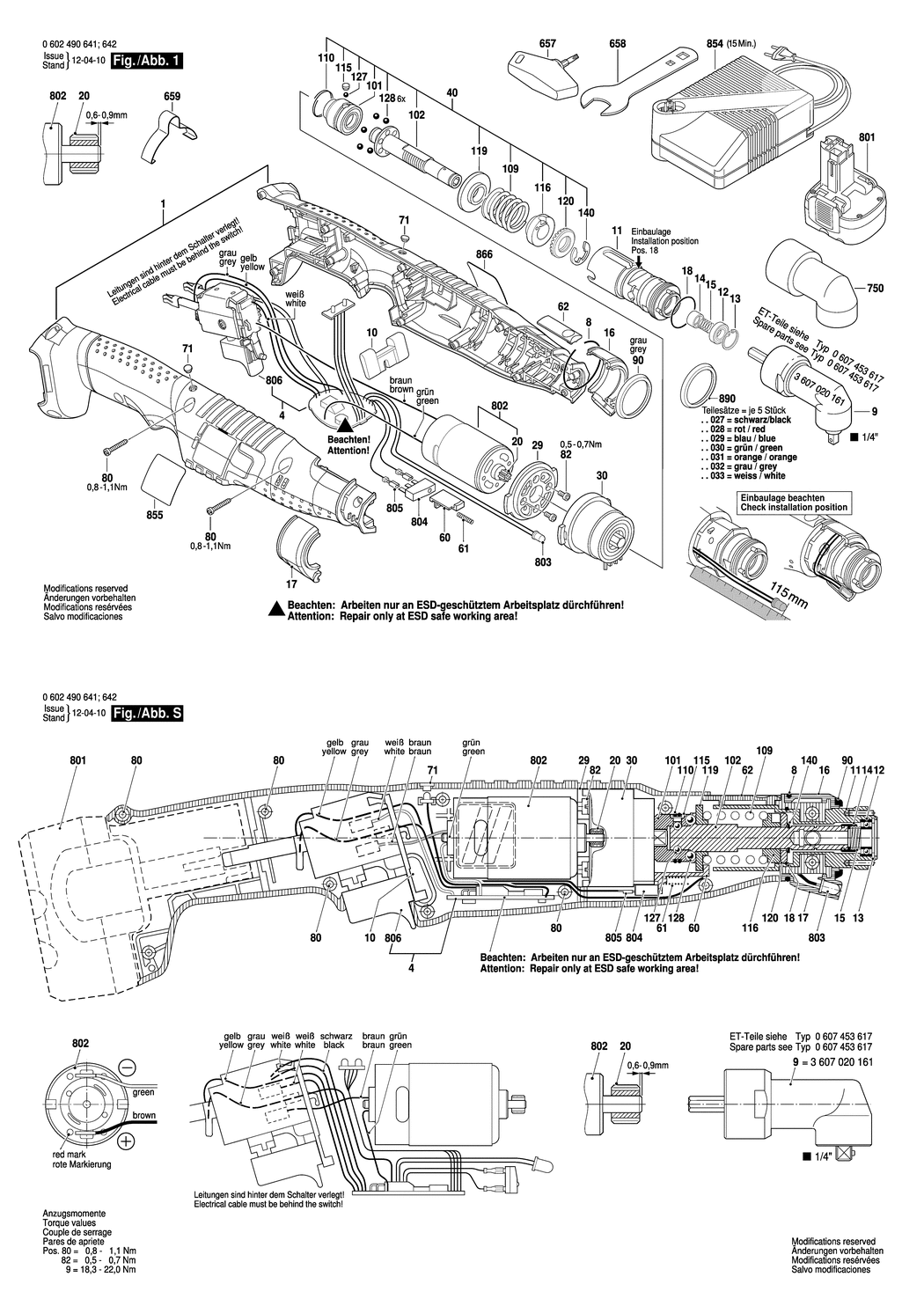

An exploded drawing and listing for the Bosch ANGLE EXACT 6 / 0602490642 / --- 9.6 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-3605105017.A5 3605105017 £72.18 £86.62
4 - ELECTRONIC ASSEMBLY BSD-3607200108.A10 3607200108 £410.78 £492.94
8 - RETAINING RING dia36.6xdia1.5 BSD-1614601016.A27 1614601016 £2.80 £3.36
9 - ANGLE SCREWDRIVER HEAD 1/4 BSD-3607020161.A9 3607020161 £1006.71 £1208.05
10 - SWITCH SLIDE BSD-3601099003.A88 3601099003 £2.80 £3.36
11 - ANGLE FLANGE BSD-3605700165.A15 3605700165 £59.53 £71.44
12 - GROOVE BALL BEARING BSD-1280905004.A80 1280905004 £31.64 £37.97
13 - SPRING RETAINING RING 16x1 MM. DIN 472 BSD-2916660003.A24 2916660003 £1.75 £2.10
14 - SLEEVE BSD-3600423004.A5 3600423004 £5.58 £6.70
15 - COMPRESSION SPRING BSD-3604611037.A5 3604611037 £5.30 £6.36
16 - LED-HOLDER BSD-3605105019.A11 3605105019 £11.30 £13.56
17 - LED-HOLDER BSD-3605105020.A32 3605105020 £11.30 £13.56
18 - O-RING 20.0x1.0 MM BSD-3600210012.A10 3600210012 £2.80 £3.36
20 - PINION BSD-3606309060.A18 3606309060 £48.38 £58.06
29 - INTERMEDIATE FLANGE BSD-2605719011.A8 2605719011 £3.72 £4.47
30 - PLANETARY GEAR TRAIN BSD-3607030469.A26 3607030469 £72.18 £86.62
40 - ASSEMBLY KIT BSD-3607031568.A18 3607031568 £195.26 £234.31
60 - SWITCHING ELEMENT BSD-3601923022.A24 3601923022 £5.30 £6.36
61 - COMPRESSION SPRING BSD-3604611022.A43 3604611022 £3.72 £4.47
62 - PUSHER BSD-3601923029.A24 3601923029 £5.30 £6.36
71 - LIGHT CONDUCTOR BSD-3604460132.A60 3604460132 £2.80 £3.36
80 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A822 2603490018 £1.75 £2.10
82 - TORX SH CAP SCREW M3x5-8.8-Z BSD-2603414048.A12 2603414048 £1.75 £2.10
90 - RING BSD-3600106022.A0 3600106022 £4.26 £5.11
101 - CLUTCH ELEMENT BSD-3606445043.A174 3606445043 £102.57 £123.08
102 - OUTPUT SHAFT BSD-3603124034.A37 3603124034 £51.22 £61.47
109 - COMPRESSION SPRING BSD-3604619003.A156 3604619003 £5.58 £6.70
110 - RETAINING RING BSD-3600224053.A26 3600224053 £1.75 £2.10
115 - SEALING PLATE BSD-3601023011.A92 3601023011 £2.61 £3.13
116 - SETTING RING BSD-3600134014.A99 3600134014 £31.64 £37.97
119 - SUPPORT DISC BSD-3600190036.A12 3600190036 £8.67 £10.41
120 - CATCH DISK BSD-3603344047.A27 3603344047 £23.86 £28.63
127 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A235 1903230006 £2.16 £2.59
128 - BALL 4.5 MM III DIN 5401-ST BSD-1903230008.A84 1903230008 £1.75 £2.10
140 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A71 2916080012 £1.75 £2.10
657 - SCREWDRIVER BSD-3607950027.A134 3607950027 £14.91 £17.89
658 - SINGLE-HEAD ENG. WRENCH BSD-3601376007.A22 3601376007 £10.10 £12.12
659 - SUSPENSION LOOP BSD-3601923024.A111 3601923024 £11.30 £13.56
750 - PROTECTIVE CAP BSD-3605500171.A15 3605500171 £13.12 £15.75
801 - SLIDE-IN ACCU PACKAGE 9.6V.2.6Ah.NiMh BSD-2607335681.A16 2607335681 £116.15 £139.38
802 - DC MOTOR 9.6V BSD-3607031553.A4 3607031553 £93.88 £112.65
803 - LIGHT-EMITTING-DIODE BSD-3609202979.A15 3609202979 £23.86 £28.63
804 - MICROSWITCH BSD-3609202762.A57 3609202762 £27.23 £32.68
805 - PLUG SET BSD-3609202766.A34 3609202766 £6.52 £7.83
806 - SWITCH BSD-3607200083.A20 3607200083 £59.53 £71.44
854 - FAST CHARGER EU 230/7.2-24V. 30 MIN. BSD-2607225027.A142 2607225027 £120.11 £144.13
854 - FAST CHARGER GB 230/7.2-24V. 30 MIN. BSD-2607225029.A30 2607225029 £88.07 £105.68
854 - FAST CHARGER AUS 240/7.2-24V. 30 MIN. BSD-2607225031.A117 2607225031 £98.11 £117.73
854 - FAST CHARGER USA 120/7.2-24V. 30 MIN. BSD-2607225033.A29 2607225033 -
854 - FAST CHARGER SAM 115/7.2-24V. 15 MIN. BSD-2607225035.A99 2607225035 -
854 - FAST CHARGER J 100/7.2-24V. 1h BSD-2607224435.A78 2607224435 £120.11 £144.13
854 - FAST CHARGER ROK 220/7.2-24V. 30 MIN. BSD-2607225039.A29 2607225039 £80.61 £96.73
855 - NAMEPLATE BSD-16070312AG.A3 16070312AG -
866 - MANUFACTURER'S NAMEPLATE BSD-3601119311.A4 3601119311 £8.67 £10.41
890 - PARTS SET BSD-3600106027.A65 3600106027 £21.68 £26.01
890 - PARTS SET BSD-3600106028.A3 3600106028 £21.52 £25.83
890 - PARTS SET BSD-3600106029.A65 3600106029 £21.68 £26.01
890 - PARTS SET BSD-3600106030.A3 3600106030 £21.68 £26.01
890 - PARTS SET BSD-3600106031.A65 3600106031 £23.86 £28.63
890 - PARTS SET BSD-3600106032.A3 3600106032 £21.68 £26.01
890 - PARTS SET BSD-3600106033.A63 3600106033 £21.52 £25.83
