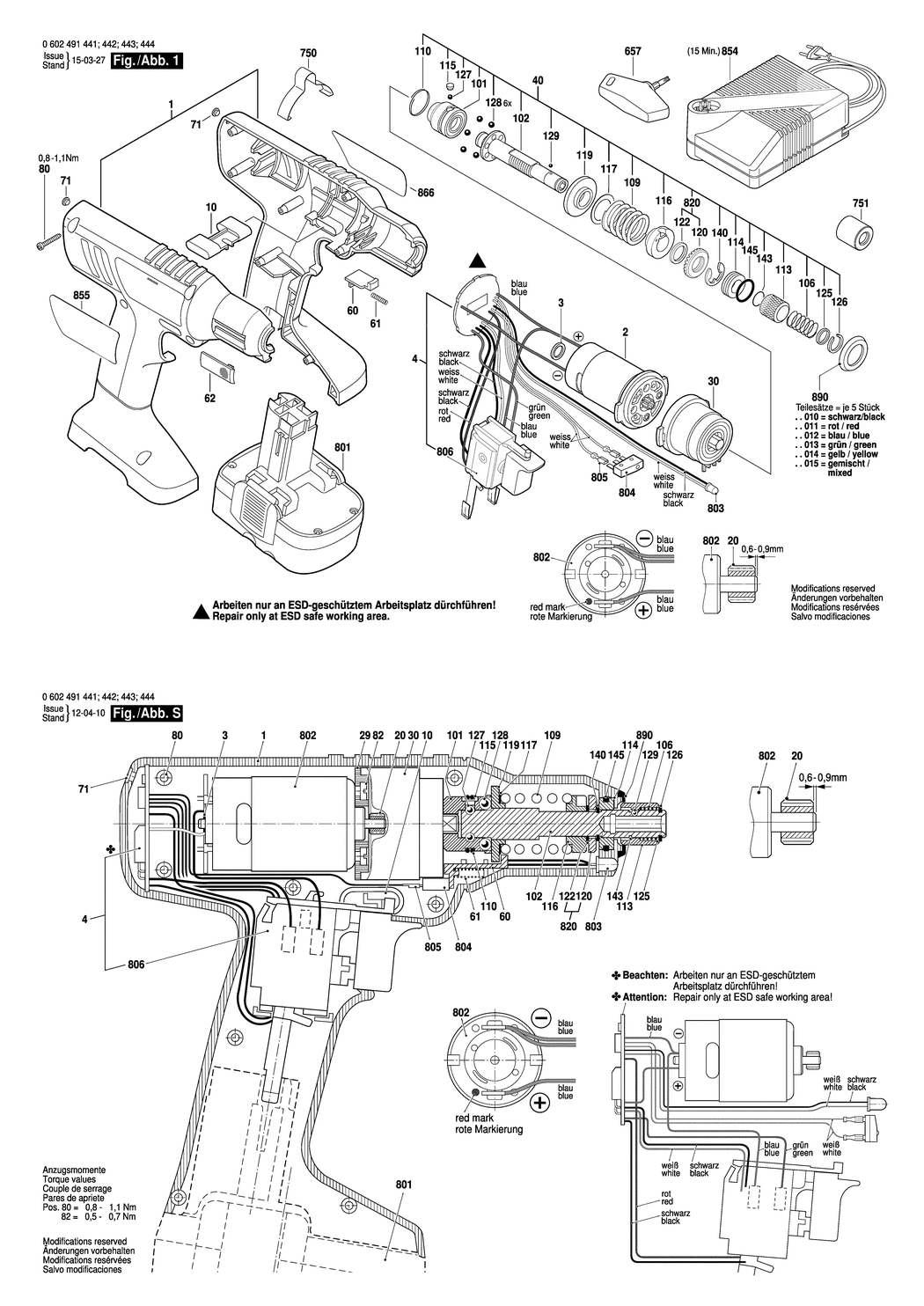

1 - HOUSING SECTION
BSD-3605105030.A0
3605105030
|
£33.74
|
£40.49
|
|
2 - DC MOTOR
BSD-3607031733.A1
3607031733
|
£54.42
|
£65.30
|
|
3 - LOCATING RING
BSD-3600200043.A0
3600200043
|
£5.30
|
£6.36
|
|
4 - ELECTRONIC ASSEMBLY
BSD-3607200093.A3
3607200093
|
£458.51
|
£550.21
|
|
10 - SWITCH SLIDE
BSD-3601099003.A0
3601099003
|
£2.80
|
£3.36
|
|
20 - PINION Z=9
BSD-2606316164.A61
2606316164
|
£4.26
|
£5.11
|
|
30 - PLANETARY GEAR TRAIN
BSD-3607030443.A5
3607030443
|
-
|
|
|
40 - ASSEMBLY KIT
BSD-3607031535.A42
3607031535
|
£283.50
|
£340.20
|
|
60 - SWITCHING ELEMENT
BSD-3601923022.A113
3601923022
|
£5.30
|
£6.36
|
|
61 - COMPRESSION SPRING
BSD-3604611022.A83
3604611022
|
£3.72
|
£4.47
|
|
62 - PUSHER
BSD-3601923029.A113
3601923029
|
£5.30
|
£6.36
|
|
71 - LIGHT CONDUCTOR
BSD-3604460132.A18
3604460132
|
£2.80
|
£3.36
|
|
80 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A268
2603490018
|
£1.75
|
£2.10
|
|
101 - CLUTCH ELEMENT
BSD-3606445043.A41
3606445043
|
£102.57
|
£123.08
|
|
102 - OUTPUT SHAFT
BSD-3603124023.A7
3603124023
|
£68.42
|
£82.10
|
|
106 - COMPRESSION SPRING
BSD-3604610011.A144
3604610011
|
£2.80
|
£3.36
|
|
109 - COMPRESSION SPRING
BSD-3604619020.A59
3604619020
|
£5.58
|
£6.70
|
|
110 - RETAINING RING
BSD-3600224053.A99
3600224053
|
£1.75
|
£2.10
|
|
113 - CLAMP BUSHING
BSD-3600499023.A27
3600499023
|
£18.96
|
£22.75
|
|
114 - PLAIN BEARING
BSD-3600921001.A2
3600921001
|
£10.10
|
£12.12
|
|
115 - SEALING PLATE
BSD-3601023011.A38
3601023011
|
£2.61
|
£3.13
|
|
116 - SETTING RING
BSD-3600134014.A35
3600134014
|
£31.64
|
£37.97
|
|
117 - PLAIN WASHER 0.5 MM
BSD-1600101023.A80
1600101023
|
£1.75
|
£2.10
|
|
119 - SUPPORT DISC
BSD-3600190036.A97
3600190036
|
£8.67
|
£10.41
|
|
120 - CATCH DISK
BSD-3603344046.A11
3603344046
|
£33.74
|
£40.49
|
|
122 - SHIM WASHER
BSD-3600101052.A19
3600101052
|
£8.67
|
£10.41
|
|
125 - BACKUP RING
BSD-3600202020.A114
3600202020
|
£8.67
|
£10.41
|
|
126 - RETAINING RING
BSD-3600224006.A27
3600224006
|
£2.80
|
£3.36
|
|
127 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A350
1903230006
|
£2.16
|
£2.59
|
|
128 - BALL 4.5 MM III DIN 5401-ST
BSD-1903230008.A166
1903230008
|
£1.75
|
£2.10
|
|
129 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A390
1903230003
|
£2.61
|
£3.13
|
|
140 - LOCKING WASHER DIN 6799-9-FSt
BSD-2916080012.A127
2916080012
|
£1.75
|
£2.10
|
|
143 - O-RING 9.0x1.2 MM
BSD-3600210038.A43
3600210038
|
£2.61
|
£3.13
|
|
145 - O-RING
BSD-3600210116.A77
3600210116
|
£2.80
|
£3.36
|
|
657 - SCREWDRIVER
BSD-3607950027.A70
3607950027
|
£14.91
|
£17.89
|
|
750 - SUSPENSION LOOP
BSD-3601923024.A17
3601923024
|
£11.30
|
£13.56
|
|
751 - PROTECTIVE CAP
BSD-3605500210.A36
3605500210
|
£16.74
|
£20.09
|
|
801 - SLIDE-IN ACCU PACKAGE 12V.2.6Ah.NiMh
BSD-2607335683.A0
2607335683
|
£154.03
|
£184.84
|
|
803 - LIGHT-EMITTING-DIODE
BSD-3607600404.A14
3607600404
|
£16.41
|
£19.69
|
|
804 - MICROSWITCH
BSD-3609202762.A109
3609202762
|
£27.23
|
£32.68
|
|
805 - PLUG SET
BSD-3609202766.A72
3609202766
|
£6.52
|
£7.83
|
|
806 - SWITCH
BSD-3607200083.A4
3607200083
|
£59.53
|
£71.44
|
|
820 - CATCH DISK
BSD-3603344047.A142
3603344047
|
£23.86
|
£28.63
|
|
854 - FAST CHARGER EU 230/7.2-24V. 30 MIN.
BSD-2607225027.A56
2607225027
|
£120.11
|
£144.13
|
|
854 - FAST CHARGER GB 230/7.2-24V. 30 MIN.
BSD-2607225029.A106
2607225029
|
£88.07
|
£105.68
|
|
854 - FAST CHARGER AUS 240/7.2-24V. 30 MIN.
BSD-2607225031.A51
2607225031
|
£98.11
|
£117.73
|
|
854 - FAST CHARGER USA 120/7.2-24V. 30 MIN.
BSD-2607225033.A88
2607225033
|
-
|
|
|
854 - FAST CHARGER J 100/7.2-24V. 1h
BSD-2607224435.A23
2607224435
|
£120.11
|
£144.13
|
|
854 - FAST CHARGER J 100/7.2-24V. 1h
BSD-2607224435.A24
2607224435
|
£120.11
|
£144.13
|
|
854 - FAST CHARGER ROK 220/7.2-24V. 30 MIN.
BSD-2607225039.A92
2607225039
|
£80.61
|
£96.73
|
|
855 - NAMEPLATE
BSD-3601119361.A0
3601119361
|
£6.52
|
£7.83
|
|
866 - MANUFACTURER'S NAMEPLATE
BSD-3601119362.A1
3601119362
|
£6.52
|
£7.83
|
|
890 - PARTS SET
BSD-3600106010.A64
3600106010
|
£23.86
|
£28.63
|
|
890 - PARTS SET
BSD-3600106011.A25
3600106011
|
£21.52
|
£25.83
|
|
890 - PARTS SET
BSD-3600106012.A64
3600106012
|
£23.86
|
£28.63
|
|
890 - PARTS SET
BSD-3600106013.A25
3600106013
|
£21.52
|
£25.83
|
|
890 - PARTS SET
BSD-3600106014.A64
3600106014
|
£23.86
|
£28.63
|
|
890 - PARTS SET
BSD-3600106015.A25
3600106015
|
£27.23
|
£32.68
|
|
