Bosch GSR 14.4 VE-2 / 0601948480 / EU 14.4 Volt Spare Parts

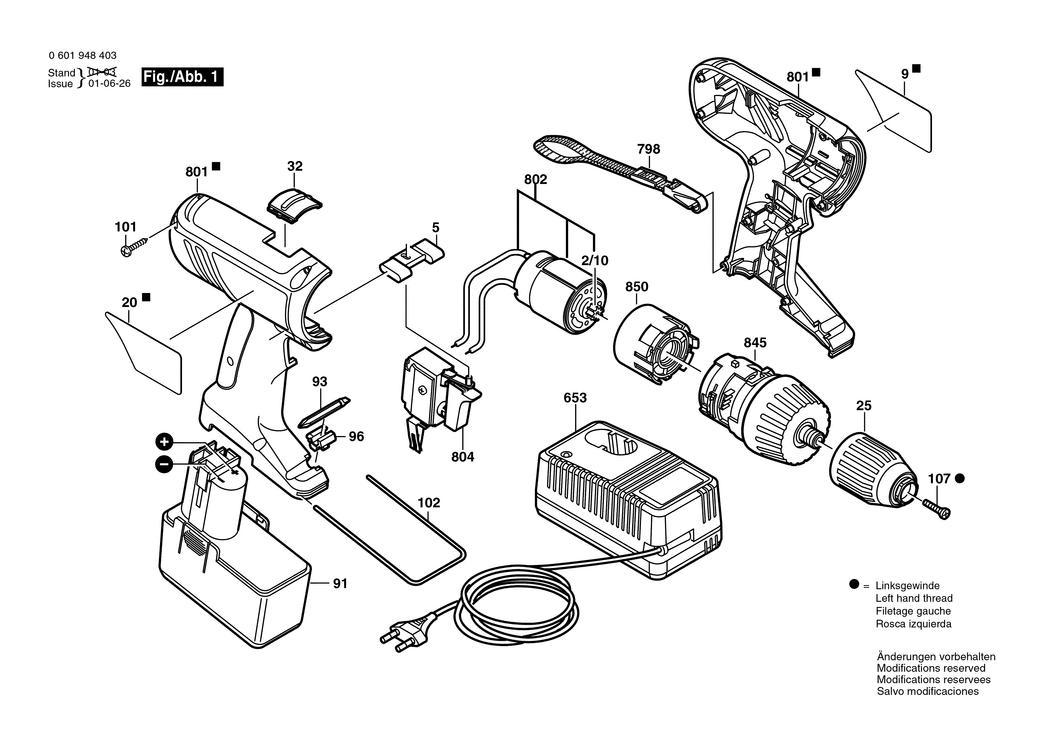

An exploded drawing and listing for the Bosch GSR 14.4 VE-2 / 0601948480 / EU 14.4 Volt

	Ex VAT	Inc VAT
2/10 - PINION BSD-2606316188.A5 2606316188	£2.16	£2.59
5 - ADJUSTING SLIDE BSD-2601099085.A9 2601099085	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601119750.A2 2601119750	£3.72	£4.47
20 - REFERENCE PLATE BSD-2601119751.A4 2601119751	£3.72	£4.47
25 - KEYLESS CHUCK BSD-2608572160.A38 2608572160	-
32 - ADJUSTING SLIDE BSD-2601099086.A64 2601099086	£2.16	£2.59
91 - ACCUMULATOR BATTERY 14.4V.2.0Ah.NiCd BSD-2607335209.A13 2607335209	-
93 - SCREWDRIVER BLADE BSD-2608521018.A87 2608521018	£5.01	£6.01
96 - SUPPORT BSD-2608040131.A16 2608040131	£1.95	£2.34
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A525 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A172 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW BSD-2603421008.A51 2603421008	£1.75	£2.10
653 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A198 2607224425	£88.07	£105.68
653 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN. BSD-2607224701.A351 2607224701	£88.07	£105.68
798 - CARRYING LOOP BSD-2601398009.A85 2601398009	-
801 - HOUSING SECTION BSD-2605105901.A9 2605105901	-
802 - DC MOTOR 14.4V BSD-2607022892.A13 2607022892	-
804 - ON-OFF SWITCH BSD-2607200421.A52 2607200421	£48.38	£58.06
845 - PLANETARY GEAR TRAIN BSD-2606200910.A12 2606200910	-
850 - INTERMEDIATE FLANGE BSD-2605719901.A11 2605719901	-
899 - BATT-OPER SCREWDRIVER BSD-0601948420.A4 0601948420	-
