Bosch GKG 24 V / 0601663803 / EU 24 Volt Spare Parts

Home Details Reviews Delivery

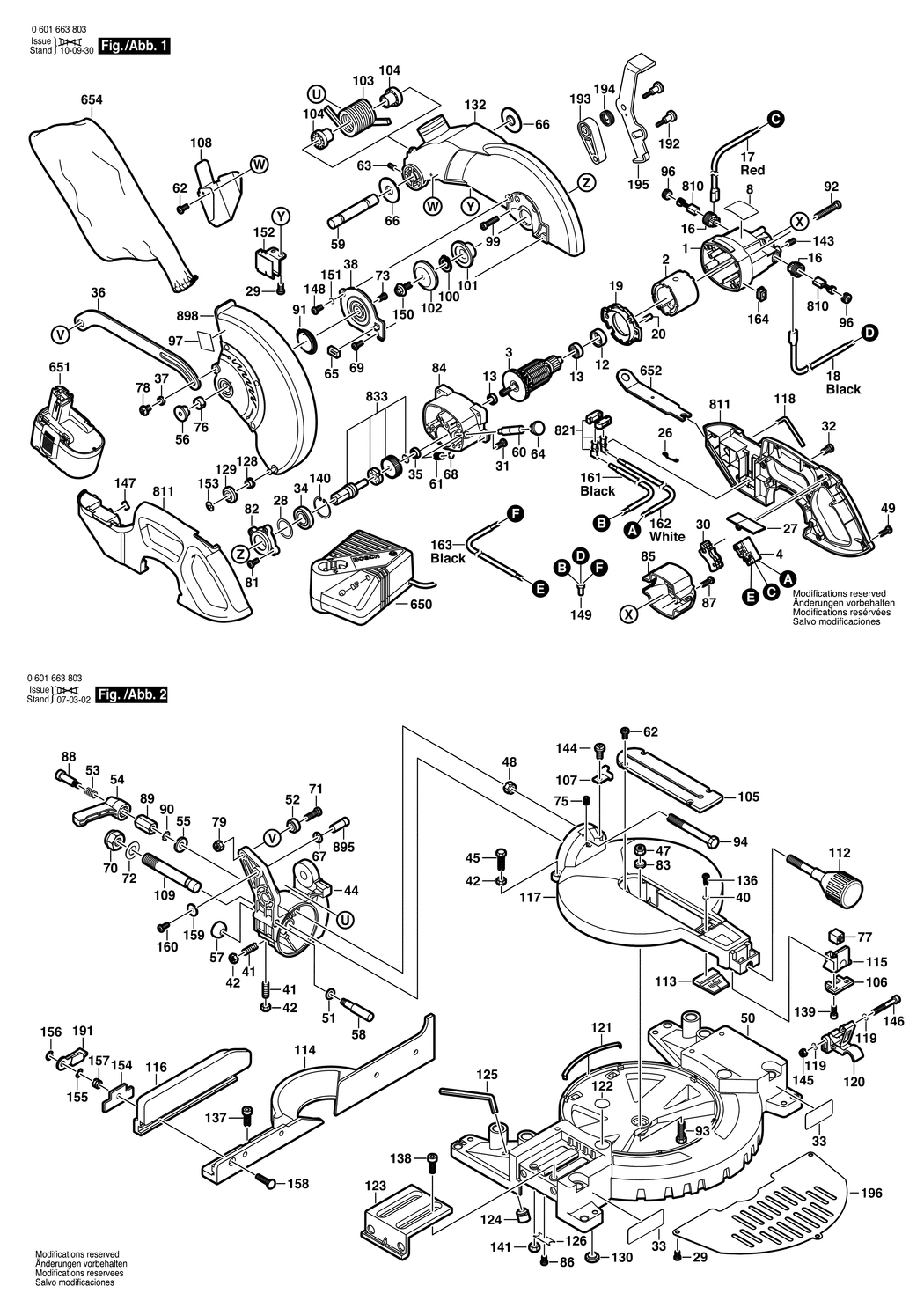

An exploded drawing and listing for the Bosch GKG 24 V / 0601663803 / EU 24 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2610907835.A0 2610907835	£21.68	£26.01
2 - POLE HOUSING 14;4-24V BSD-2610942109.A76 2610942109	£21.68	£26.01
3 - ARMATURE 14.4-24V BSD-2610909066.A1 2610909066	£33.45	£40.14
4 - ON-OFF SWITCH BSD-2610997469.A7 2610997469	£31.64	£37.97
8 - NAMEPLATE BSD-2610914583.A0 2610914583	£1.95	£2.34
12 - BEARING SLEEVE BSD-2610912535.A0 2610912535	£1.75	£2.10
13 - GROOVE BALL BEARING BSD-2610912536.A1 2610912536	£10.10	£12.12
16 - BRUSH HOLDER BSD-2610912538.A0 2610912538	£13.41	£16.09
17 - CONNECTING CABLE BSD-2610912539.A1 2610912539	£6.52	£7.83
18 - CONNECTING CABLE BSD-2610912540.A0 2610912540	£5.30	£6.36
19 - BAFFLE BSD-2610907837.A0 2610907837	£2.16	£2.59
20 - PIN BSD-2610912541.A1 2610912541	£1.32	£1.58
26 - CLIP BSD-2610912543.A0 2610912543	£1.32	£1.58
27 - COVER BSD-2610914254.A1 2610914254	-
28 - SPRING WASHER BSD-2610912544.A1 2610912544	£1.75	£2.10
29 - SCREW BSD-2615296765.A1 2615296765	£1.75	£2.10
30 - LEVER BSD-2610907832.A1 2610907832	£1.75	£2.10
31 - SCREW BSD-2615303036.A1 2615303036	-
32 - SCREW BSD-2610910545.A0 2610910545	£1.75	£2.10
33 - REFERENCE PLATE BSD-2610914587.A1 2610914587	£1.95	£2.34
34 - GROOVE BALL BEARING BSD-2610912546.A0 2610912546	£10.10	£12.12
35 - NEEDLE-ROLLER BEARING BSD-2610912547.A1 2610912547	£11.30	£13.56
36 - LINKAGE PART BSD-2610907840.A1 2610907840	£4.75	£5.70
37 - COLLAR BSD-2610910849.A3 2610910849	£1.66	£1.99
38 - COVER BSD-2610907844.A0 2610907844	£5.30	£6.36
40 - WASHER BSD-2610908270.A0 2610908270	£1.75	£2.10
41 - SCREW BSD-2610912548.A0 2610912548	-
42 - HEX NUT BSD-2610912549.A18 2610912549	£1.75	£2.10
44 - BRACKET BSD-2610907820.A0 2610907820	£23.86	£28.63
45 - SCREW BSD-2610355267.A5 2610355267	£1.75	£2.10
47 - NUT BSD-2610358172.A3 2610358172	£1.32	£1.58
48 - NUT BSD-2610912551.A0 2610912551	£1.75	£2.10
49 - SCREW BSD-2610912552.A1 2610912552	£1.75	£2.10
50 - BASE PLATE BSD-2610907816.A6 2610907816	£120.11	£144.13
51 - O-RING BSD-2610912553.A0 2610912553	£1.75	£2.10
52 - RETAINING PIN BSD-2610910768.A1 2610910768	£4.26	£5.11
53 - COMPRESSION SPRING BSD-2610910765.A7 2610910765	£1.75	£2.10
54 - TENSIONING LEVER BSD-2610910838.A13 2610910838	-
55 - WASHER BSD-2615297329.A7 2615297329	£1.75	£2.10
56 - PIVOT BSD-2610910848.A8 2610910848	£1.95	£2.34
57 - KNOB BSD-2610912554.A6 2610912554	£1.75	£2.10
58 - LOCKING BOLT BSD-2610907847.A6 2610907847	£2.61	£3.13
59 - PIVOT BSD-2610910842.A8 2610910842	£6.61	£7.93
60 - SHAFT BSD-2610908274.A1 2610908274	£2.16	£2.59
61 - SPRING BSD-2610908275.A0 2610908275	£1.75	£2.10
62 - SCREW BSD-2610910781.A7 2610910781	-
63 - SCREW BSD-2610328605.A2 2610328605	£1.75	£2.10
64 - KNOB BSD-2610912555.A0 2610912555	£1.75	£2.10
65 - END STOP BSD-2610910750.A6 2610910750	£1.66	£1.99
66 - WASHER BSD-2610911465.A7 2610911465	£1.95	£2.34
67 - O-RING BSD-2610910788.A8 2610910788	£1.75	£2.10
68 - RETAINING SNAP RING BSD-2610912556.A1 2610912556	£1.75	£2.10
69 - SCREW BSD-2615297323.A0 2615297323	£1.75	£2.10
70 - SQUARE NUT BSD-2610355332.A13 2610355332	-
71 - SCREW BSD-2610910790.A7 2610910790	£1.75	£2.10
72 - WASHER BSD-2610910792.A13 2610910792	£1.75	£2.10
73 - SCREW BSD-2610911451.A4 2610911451	£1.75	£2.10
75 - SET SCREW BSD-2610910786.A16 2610910786	-
76 - SLEEVE BSD-2610910751.A0 2610910751	£3.80	£4.56
77 - NUT BSD-2610910760.A11 2610910760	£2.52	£3.02
78 - SCREW BSD-2610910797.A7 2610910797	£1.75	£2.10
79 - NUT BSD-2610905940.A0 2610905940	£1.32	£1.58
81 - SCREW BSD-2610910784.A7 2610910784	-
82 - PIVOT PLATE BSD-2610908261.A0 2610908261	£12.04	£14.45
83 - WASHER BSD-2610910779.A7 2610910779	£1.75	£2.10
84 - GEAR HOUSING BSD-2610907828.A0 2610907828	£40.80	£48.96
85 - COVER BSD-2610907836.A1 2610907836	£7.36	£8.83
86 - SCREW M 8x0.8-10 BSD-2610911466.A4 2610911466	-
87 - SCREW BSD-2610912557.A0 2610912557	£1.75	£2.10
88 - SCREW BSD-2610910762.A7 2610910762	£5.01	£6.01
89 - SLEEVE BSD-2610910766.A7 2610910766	£5.87	£7.04
90 - PLAIN WASHER BSD-2610355264.A4 2610355264	£3.34	£4.01
91 - SPRING LOCK WASHER BSD-2610910752.A11 2610910752	£1.32	£1.58
92 - SCREW BSD-2610912558.A1 2610912558	£1.75	£2.10
93 - STUD BOLT M8x1.25-30 BSD-2610992377.A6 2610992377	£1.75	£2.10
94 - STUD BOLT BSD-2610910778.A2 2610910778	£2.33	£2.80
96 - PROTECTION COVER BSD-2610908266.A1 2610908266	£1.75	£2.10
97 - LABEL BSD-2610907900.A1 2610907900	£3.72	£4.47
99 - SCREW BSD-2610911461.A4 2610911461	-
100 - RETAINING SNAP RING BSD-2610912559.A0 2610912559	£1.75	£2.10
101 - LOWER BLADE BSD-2610914260.A1 2610914260	£4.26	£5.11
102 - FLANGE BSD-2610914261.A0 2610914261	£4.26	£5.11
103 - TORSION SPRING BSD-2610912560.A1 2610912560	£5.87	£7.04
104 - SLEEVE BSD-2610910753.A0 2610910753	£1.75	£2.10
105 - INSET PLATE BSD-1619P03782.A2 1619P03782	-
106 - END PLATE BSD-2610910833.A8 2610910833	£5.01	£6.01
107 - POINTER BSD-2610907852.A3 2610907852	-
108 - REFLECTOR BSD-2610912561.A5 2610912561	£6.61	£7.93
109 - SHAFT BSD-2610908288.A1 2610908288	£1.75	£2.10
112 - KNOB BSD-2610907850.A3 2610907850	£4.75	£5.70
113 - SCALE PLATE BSD-2610907846.A3 2610907846	-
114 - RIVING KNIFE BSD-2610907822.A1 2610907822	-
115 - PLATE BSD-2610916122.A6 2610916122	£4.75	£5.70
116 - MITRE FENCE BSD-2610907824.A0 2610907824	-
117 - SAW TABLE BSD-2610907813.A0 2610907813	£102.57	£123.08
118 - OFFSET SCREWDRIVER DIN 911. SW3 BSD-1907950004.A129 1907950004	£5.58	£6.70
119 - WASHER BSD-2610309996.A9 2610309996	£1.75	£2.10
120 - LEVER BSD-2610910775.A7 2610910775	-
121 - WEAR PLATE BSD-2610907854.A1 2610907854	£1.75	£2.10
122 - WARNING LABEL BSD-2610909006.A20 2610909006	£3.72	£4.47
123 - EXTENSION STAND BSD-2610907826.A6 2610907826	£12.04	£14.45
124 - SET OF KEYS BSD-2610911470.A11 2610911470	£3.80	£4.56
125 - HEXAGON SOCKET WRENCH BSD-2610355777.A0 2610355777	£2.33	£2.80
126 - THREADED PLATE BSD-2610910844.A3 2610910844	£1.75	£2.10
128 - BEARING BSD-2610990522.A1 2610990522	£1.75	£2.10
129 - ROLLER BSD-2610990518.A8 2610990518	£1.75	£2.10
130 - RUBBER BUSHING BSD-1619P03548.A16 1619P03548	-
132 - PROTECTION BSD-2610907390.A1 2610907390	-
136 - SCREW BSD-2610910777.A7 2610910777	£1.75	£2.10
137 - SCREW BSD-2610910793.A6 2610910793	£2.80	£3.36
138 - SCREW BSD-2610356733.A11 2610356733	£1.75	£2.10
139 - SCREW BSD-2615303029.A8 2615303029	£1.75	£2.10
140 - RETAINING SNAP RING BSD-2610912562.A1 2610912562	£1.75	£2.10
141 - HEX NUT BSD-2610910794.A8 2610910794	£1.75	£2.10
143 - SCREW BSD-2610911456.A5 2610911456	-
144 - SCREW BSD-2610910782.A6 2610910782	£1.75	£2.10
145 - NUT BSD-2610910774.A7 2610910774	£1.32	£1.58
146 - SCREW BSD-2610910776.A7 2610910776	£1.32	£1.58
147 - GROMMET BSD-2610912564.A0 2610912564	-
148 - SCREW BSD-2610910799.A3 2610910799	£1.95	£2.34
149 - WIRE PIN BSD-3608098501.A5 3608098501	-
150 - STUD BOLT BSD-2610911467.A8 2610911467	-
151 - WASHER BSD-2610911450.A8 2610911450	£1.75	£2.10
152 - CHIP DEFLECTOR BSD-2610907845.A0 2610907845	£2.16	£2.59
153 - SPRING RETAINING RING BSD-2610990521.A15 2610990521	£1.75	£2.10
154 - CLAMPING PLATE BSD-2610967433.A3 2610967433	£3.80	£4.56
155 - PLAIN WASHER BSD-2610358439.A11 2610358439	£1.75	£2.10
156 - SPRING RETAINING RING BSD-2610967438.A3 2610967438	£1.75	£2.10
157 - NUT BSD-2610967439.A8 2610967439	£1.75	£2.10
158 - STUD BOLT BSD-2610992372.A8 2610992372	£1.75	£2.10
159 - PLAIN WASHER BSD-2610027372.A0 2610027372	£1.32	£1.58
160 - OVAL-HEAD SCREW DIN 7985-M4x8-8.8-H BSD-2910951118.A67 2910951118	£1.75	£2.10
161 - WIRE BSD-2610912565.A0 2610912565	£6.52	£7.83
162 - WIRE BSD-2610912566.A1 2610912566	-
163 - WIRE BSD-2610912567.A0 2610912567	£1.32	£1.58
164 - GROMMET BSD-2610912862.A0 2610912862	-
191 - CLAMP BSD-2610967432.A8 2610967432	£3.80	£4.56
192 - COLLAR BOLT BSD-2610914255.A0 2610914255	-
193 - HANDLE BSD-2610914256.A1 2610914256	-
194 - SPRING BSD-2610914257.A0 2610914257	-
195 - HANDLE BSD-2610914258.A1 2610914258	-
196 - PLATE BSD-2610914259.A0 2610914259	-
650 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A531 2607224425	£88.07	£105.68
650 - FAST CHARGER GB 230/7.2-24V. 1h BSD-2607224427.A1 2607224427	£103.14	£123.77
651 - BATTERY PACK 24V.2.0Ah.NiCd BSD-2607335445.A8 2607335445	£263.33	£316.00
651 - BATTERY PACK 24V.2.6Ah.NiMh BSD-2607335561.A15 2607335561	-
652 - ASSEMBLY WRENCH BSD-2610907853.A1 2610907853	£3.72	£4.47
654 - DUST BAG BSD-2610910876.A1 2610910876	£14.75	£17.70
810 - CARBON-BRUSH SET BSD-2610907839.A0 2610907839	£31.64	£37.97
811 - SET OF HANDLES BSD-2610907831.A0 2610907831	£23.86	£28.63
821 - CLIP BSD-2610907859.A1 2610907859	£4.26	£5.11
833 - SHAFT BSD-2610912568.A1 2610912568	£59.53	£71.44
895 - PIN BSD-2610914374.A0 2610914374	£2.33	£2.80
898 - PROTECTIVE COVER BSD-1619P03786.A0 1619P03786	-
