Bosch GAS 1000 RF / 0601971132 / CH 220 Volt Spare Parts

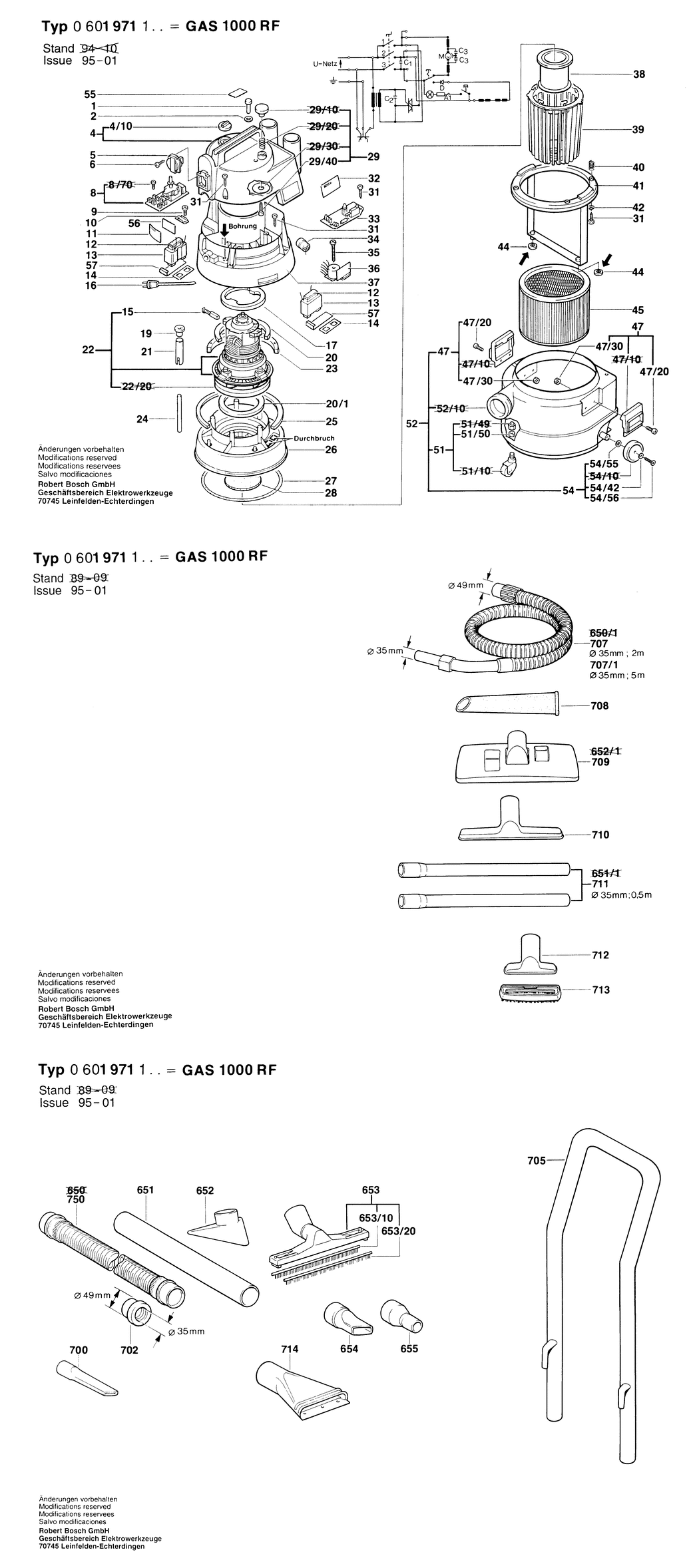

An exploded drawing and listing for the Bosch GAS 1000 RF / 0601971132 / CH 220 Volt

	Ex VAT	Inc VAT
1 - INDICATOR LAMP BSD-1609201654.A5 1609201654	£6.52	£7.83
2 - SEAL RING BSD-1609201655.A51 1609201655	£1.75	£2.10
4 - COVERING HOOD BSD-1609202365.A12 1609202365	-
4 - COVERING HOOD BSD-1609202365.A13 1609202365	-
4/10 - SWITCH BUTTON BSD-1609203721.A19 1609203721	-
4/10 - SWITCH BUTTON BSD-1609201656.A4 1609201656	-
5 - SOCKET BSD-1609201721.A3 1609201721	£31.64	£37.97
6 - TAPPING SCREW DIN 7983-ST3.9x19-C-H BSD-2910612519.A24 2910612519	-
8 - ON-OFF SWITCH BSD-1609202193.A2 1609202193	£54.42	£65.30
9 - TAPPING SCREW DIN 7971-B2.9x19 BSD-2910211208.A2 2910211208	-
10 - CLAMP BSD-1609201659.A15 1609201659	-
11 - NAMEPLATE BSD-1601110577.A0 1601110577	-
12 - DAMPING PLATE BSD-1609201660.A39 1609201660	£1.75	£2.10
13 - ATTACHMENT VIBRATOR 220-240V BSD-1609201662.A48 1609201662	£93.88	£112.65
14 - SEALING DISK BSD-1609201663.A12 1609201663	£2.16	£2.59
15 - CARBON-BRUSH SET BSD-1609201664.A39 1609201664	-
16 - POWER SUPPLY CORD BSD-1609202195.A2 1609202195	£37.72	£45.27
17 - AIR-DEFLECTOR RING BSD-1609201666.A101 1609201666	-
19 - SEAL RING BSD-1609201668.A12 1609201668	£2.16	£2.59
20 - SEAL RING BSD-1609201669.A77 1609201669	£5.58	£6.70
20/1 - SEAL RING BSD-1609202374.A15 1609202374	-
21 - GUIDE SLEEVE BSD-1609202573.A40 1609202573	£3.72	£4.47
22 - SUCTION BLOWER 220V BSD-1609202695.A15 1609202695	-
23 - AIR FILTER BSD-1609201672.A45 1609201672	-
24 - GUIDE SLEEVE BSD-1609202573.A41 1609202573	£3.72	£4.47
25 - AIR FILTER BSD-1609201674.A18 1609201674	-
26 - INTERMEDIATE FLANGE BSD-1609201675.A12 1609201675	-
27 - SEAL RING BSD-1609201676.A15 1609201676	-
28 - AIR FILTER BSD-1609201677.A58 1609201677	£1.95	£2.34
29 - PUSH-BUTTON BSD-1609201678.A11 1609201678	-
29/40 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A171 2910611015	£1.75	£2.10
31 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A172 2910611015	£1.75	£2.10
32 - MANUFACTURER'S NAMEPLATE BSD-1601110712.A10 1601110712	-
33 - CONNECTION PLATE BSD-1609201679.A10 1609201679	-
34 - PRESSURE SWITCH BSD-1609201680.A11 1609201680	-
35 - TAPPING SCREW DIN 7981-B3.5x25 BSD-2910611015.A170 2910611015	£1.75	£2.10
35 - TAPPING SCREW 3.5x32 MM BSD-1609201681.A43 1609201681	-
36 - AUTOMATIC SWITCHING UNIT BSD-1609203C05.A37 1609203C05	-
37 - INTERMEDIATE HOUSING BSD-1609201683.A11 1609201683	-
38 - FLOAT BSD-1609200952.A76 1609200952	-
39 - SUCTION BASKET BSD-1609201684.A12 1609201684	-
40 - COMPRESSION SPRING BSD-1609201685.A58 1609201685	£2.16	£2.59
41 - RETAINING SNAP RING BSD-1609203182.A43 1609203182	-
42 - PLAIN WASHER dia4.2xdia11x1.2MM BSD-1609202726.A98 1609202726	£1.75	£2.10
44 - SEALING DISK BSD-1609201688.A4 1609201688	-
45 - AIR FILTER dia 245x194 MM BSD-1609202378.A11 1609202378	-
47 - BENT-LEVER CLOSURE BSD-1609201690.A7 1609201690	-
47/20 - SOCKET HEAD CAP SCREW DIN 84-AM6x12-8.8 BSD-2910021193.A90 2910021193	£1.75	£2.10
47/30 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1387 2915011007	-
51 - IMPELLER BSD-1609201691.A56 1609201691	-
51/50 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A129 2915011009	£2.61	£3.13
52 - DUST CONTAINER BSD-1609201692.A7 1609201692	-
54 - IMPELLER BSD-1609202221.A18 1609202221	-
54/42 - PLAIN WASHER dia4.2xdia11x1.2MM BSD-1609202726.A97 1609202726	£1.75	£2.10
54/55 - PLAIN WASHER DIN 125-A 8.4-ST BSD-2916011016.A39 2916011016	£1.75	£2.10
54/56 - TAPPING SCREW DIN 7981-B4.2x19 BSD-2910611027.A4 2910611027	-
55 - REFERENCE PLATE BSD-1601110724.A7 1601110724	-
57 - LEAF SPRING BSD-1609202192.A29 1609202192	-
651 - SUCTION PIPE dia 49 MM. L=0.5 M BSD-1609200968.A113 1609200968	£12.24	£14.69
652 - SUCTION NOZZLE dia 49 MM BSD-1609200969.A6 1609200969	-
653 - SUCTION NOZZLE dia 49 MM. 350 MM BSD-1609200970.A108 1609200970	£26.24	£31.49
653/10 - FLAT BRUSH BSD-1609201109.A113 1609201109	-
653/20 - FLAT BRUSH BSD-1609201110.A14 1609201110	-
654 - CREVICE NOZZLE dia 49 MM BSD-1609200971.A14 1609200971	£7.87	£9.44
655 - SUCTION PIPE dia 49/35 MM BSD-1609200976.A132 1609200976	£3.61	£4.33
700 - CREVICE NOZZLE dia 35 MM. L= 250 MM BSD-2607000165.A61 2607000165	£5.24	£6.29
702 - REDUCTION SLEEVE dia 49/35 MM+3/4 BSD-1609200933.A144 1609200933	£7.21	£8.65
705 - GUIDE BRACKET BSD-1609201627.A43 1609201627	-
707 - AIR HOSE dia 35 MM. 2 M.1 BSD-2607000163.A54 2607000163	-
707/1 - AIR HOSE dia 35 MM. L=5 M BSD-1609202230.A19 1609202230	£85.74	£102.89
708 - SUCTION NOZZLE dia 35 MM BSD-1609201229.A86 1609201229	£17.49	£20.99
709 - SUCTION NOZZLE dia 35 MM BSD-1609201230.A52 1609201230	£41.99	£50.39
710 - FLAT SUCTION NOZZLE dia 35 MM-200 MM BSD-1609201231.A29 1609201231	-
711 - SUCTION PIPE dia 35 MM. L=0.5 M BSD-1609201232.A37 1609201232	-
712 - UPHOLSTERY NOZZLE dia 35 MM BSD-1609201233.A29 1609201233	-
713 - SUCTION BRUSH BSD-1609201234.A37 1609201234	-
714 - SUCTION NOZZLE dia 49 MM BSD-1609201235.A37 1609201235	-
750 - AIR HOSE dia 49 MM. 3 M.1 BSD-2607000167.A51 2607000167	£64.74	£77.69
